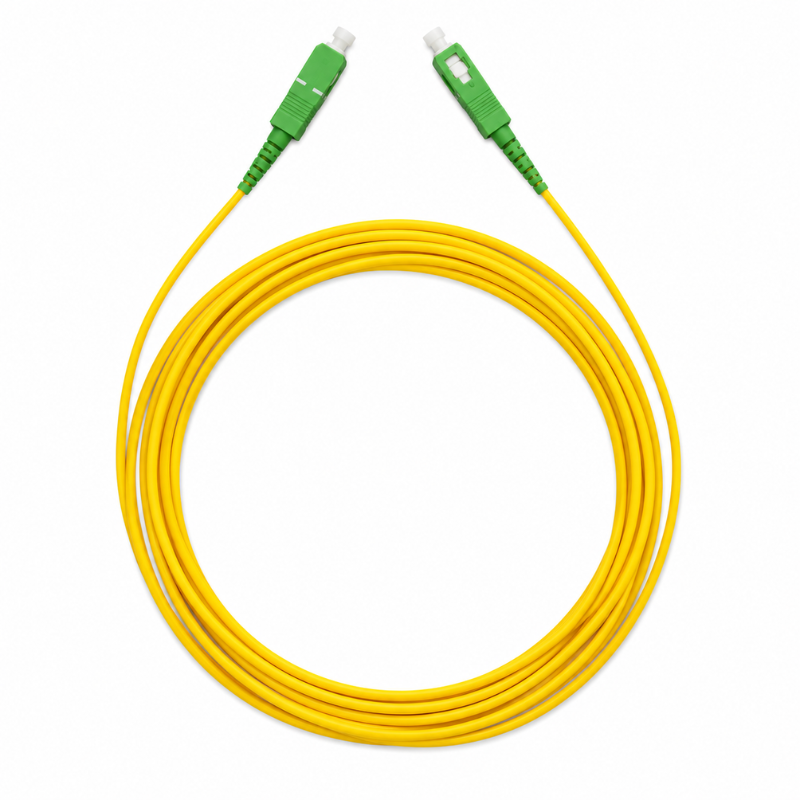

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 5m

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 5m

The Telenco 5m Simplex SC/APC to SC/APC Fibre Patchcord is engineered for high-performance optical connectivity across FTTH, telecommunications and data centre environments. Manufactured using G.657A2 bend-insensitive singlemode fibre, the patchcord supports reliable signal transmission even when routed through compact or high-density fibre installations.

Both ends are terminated with SC/APC connectors featuring high-precision zirconia ceramic ferrules for accurate fibre alignment and stable optical connectivity. The APC interfaces provide a return loss of ≥60dB, while insertion loss is ≤0.25dB maximum and ≤0.12dB typical for Grade B performance.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath, providing flame-retardant properties for professional indoor network environments. Its simplex configuration provides a single optical fibre connection, while the G.657A2 construction and 15mm static bend radius support controlled routing within patch panels, telecom racks and fibre management systems.

Each patchcord is fully tested and labelled with its batch number and IL/RL conformity for traceability. Optional B2ca and Cca fire-rated versions are also available on request for installations with specific fire performance requirements.

Key Features:

• 5m singlemode fibre optic patchcord

• Simplex (SX) configuration

• SC/APC to SC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• Compact 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer sheath

• High-precision zirconia ceramic ferrules

• Low insertion loss

• ≥60dB return loss

• Grade B typical insertion loss ≤0.12dB

• 15mm static bend radius

• 1000N crush resistance

• Fully tested for optical performance

• Labelled with batch number and IL/RL conformity

• B2ca / Cca fire-rated options available on request

• Suitable for FTTH, telecom racks and patch panels

• IEC 61754 and IEC 61300 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: SC/APC

• Connector B: SC/APC

• Connector Polish: APC / APC

• Fibre Type: Singlemode G.657A2

• Length: 5m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Connector Housing: Thermoplastic

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB maximum

• Grade B Insertion Loss: ≤0.12dB typical

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Crush Resistance: 1000N

• Static Bend Radius: 15mm

• Environmental Compliance: Water Immersion, Thermal Cycling, Vibration and Dust

• Fire Rating Options: B2ca / Cca available on request

• Traceability: Batch Number and IL/RL Conformity Labelling

• Standards: IEC 61754, IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre connectivity

• Fibre optic patch panels

• Telecom racks and cabinets

• Optical distribution frames

• Singlemode optical networks

• Fibre access networks

• SC/APC equipment interconnection
