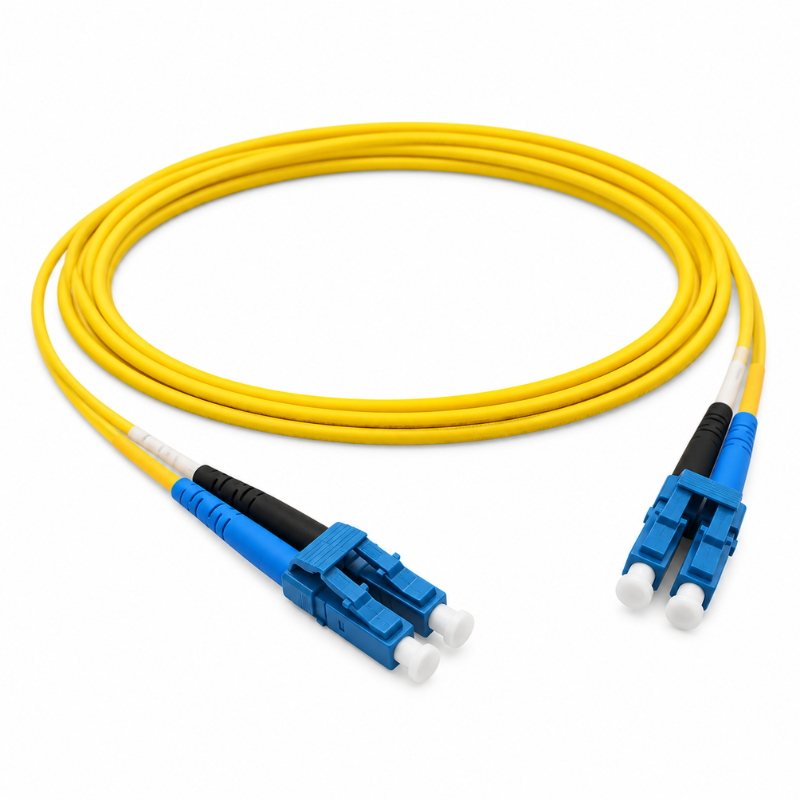

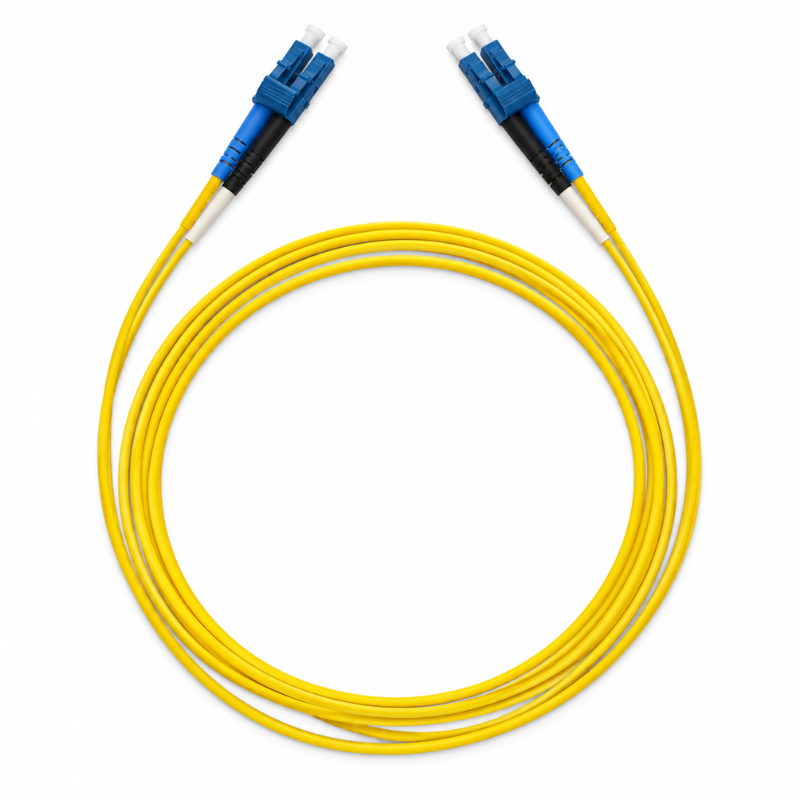

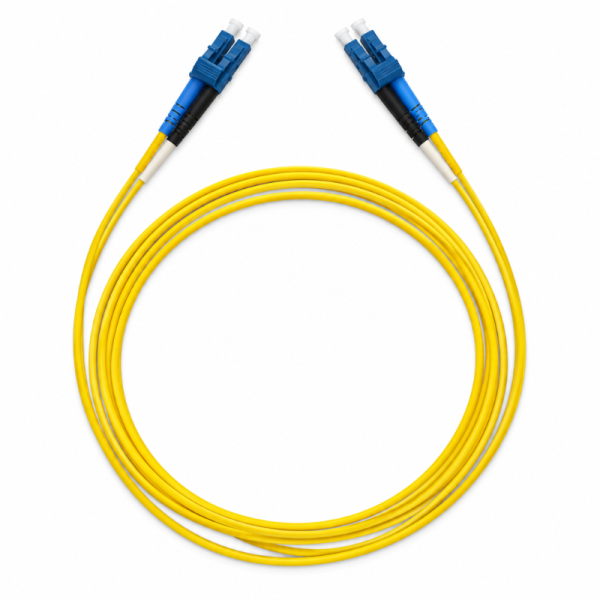

Telenco Patchcord – Yellow – Duplex – LC/UPC to LC/UPC – G.657A2 – 2.0mm – 2m
The Telenco 2m Duplex LC/UPC to LC/UPC Fibre Patchcord provides high-performance singlemode fibre connectivity for FTTH, telecommunications and optical access networks. Manufactured using G.657A2 bend-insensitive singlemode fibre, the patchcord supports reliable optical transmission while allowing tighter routing within patch panels, optical cabinets and telecom racks.
Featuring LC/UPC connectors at both ends, the patchcord provides compact connectivity suited to high-density fibre installations. Its duplex (DX) configuration incorporates two optical fibres, supporting transmit and receive connections within a single assembly. Precision zirconia ceramic ferrules provide accurate fibre alignment and consistent mating performance.
The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) jacket for use within professional indoor fibre infrastructure. Its G.657A2 construction and 15mm static bend radius provide increased routing flexibility within space-constrained fibre management systems.
Each patchcord is individually labelled for traceability and tested in accordance with IEC 61754 and IEC 61300 requirements. Environmental testing includes water immersion, vibration, impact, thermal cycling and ageing, with optional fire-rated versions available where required.
Key Features:
-
2m singlemode fibre optic patchcord
-
Duplex (DX) configuration
-
LC/UPC to LC/UPC connectivity
-
G.657A2 bend-insensitive singlemode fibre
-
Compact 2.0mm cable diameter
-
Yellow cable for singlemode identification
-
LSZH outer jacket
-
Precision zirconia ceramic ferrules
-
Low insertion loss
-
≥50dB UPC return loss
-
Grade B insertion loss ≤0.12dB
-
Excellent optical and mechanical performance
-
15mm static bend radius
-
1000N crush resistance
-
Individually labelled for traceability
-
Optional fire-rated versions available
-
IEC 61754 and IEC 61300 compliant
Technical Specifications:
-
Brand: Telenco
-
Product Type: Fibre Optic Patchcord
-
Configuration: Duplex (DX)
-
Connector A: LC/UPC
-
Connector B: LC/UPC
-
Connector Polish: UPC / UPC
-
Fibre Type: Singlemode G.657A2
-
Length: 2m
-
Cable Diameter: 2.0mm
-
Cable Colour: Yellow
-
Cable Jacket: LSZH
-
Ferrule Material: Zirconia Ceramic
-
Insertion Loss: ≤0.25dB for 97% typical
-
Grade B Insertion Loss: ≤0.12dB
-
Return Loss: ≥50dB
-
Operating Temperature: -40°C to +75°C
-
Crush Resistance: 1000N
-
Static Bend Radius: 15mm
-
Environmental Testing: Water Immersion, Vibration, Impact, Thermal Cycling and Ageing
-
Fire Rating Options: Available
-
Testing Compliance: IEC 61754, IEC 61300
Applications:
-
FTTH networks
-
FTTx infrastructure
-
Optical access networks
-
Telecommunications networks
-
Fibre optic patch panels
-
Optical cabinets
-
Telecom racks and cabinets
-
Optical distribution frames
-
High-density LC fibre connectivity
-
Singlemode network equipment interconnection
