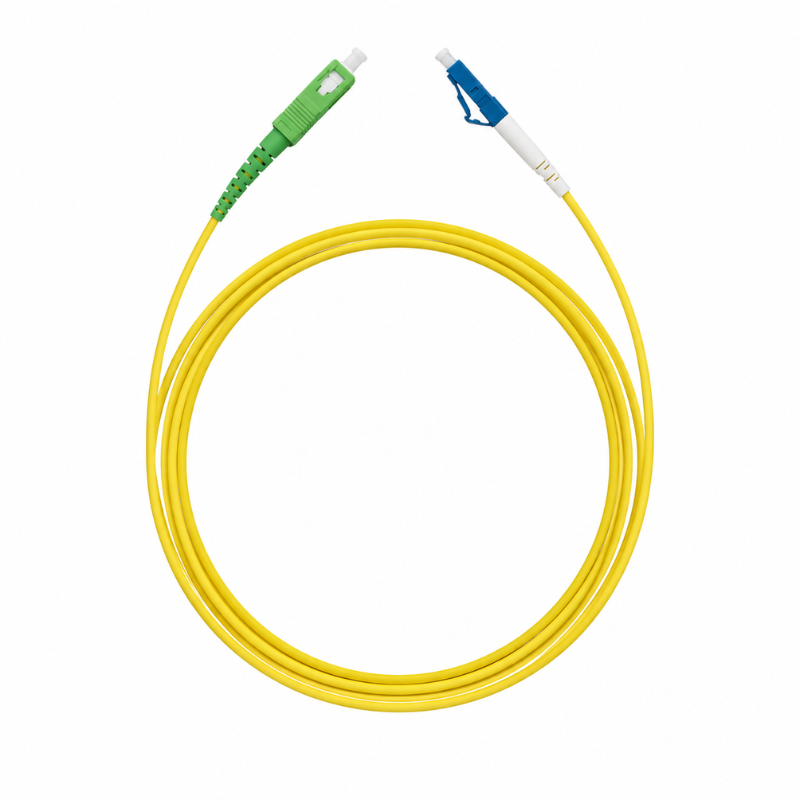

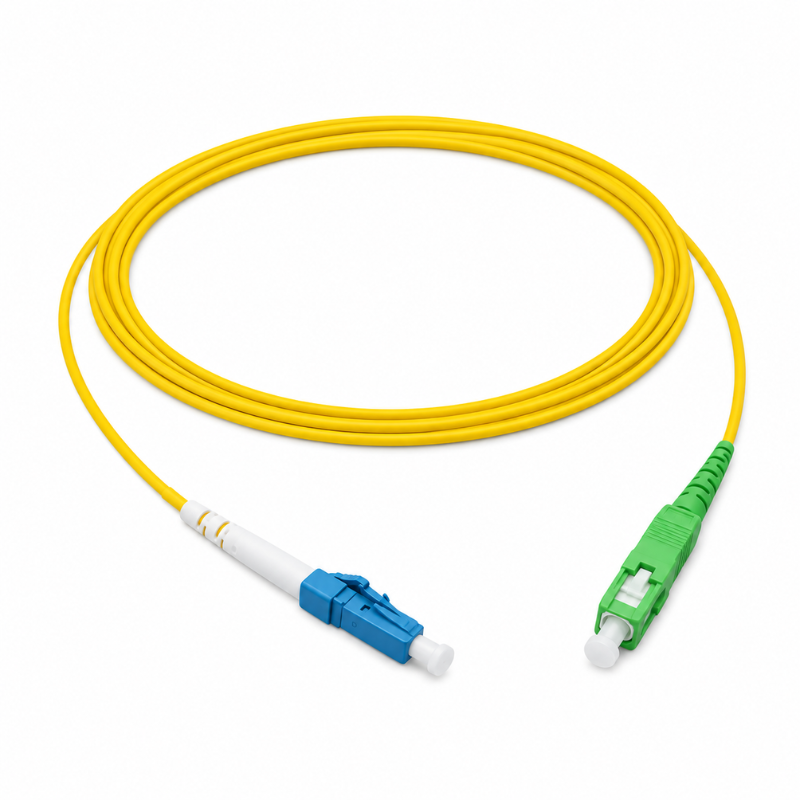

Telenco Patchcord – Yellow – Simplex – LC/UPC to SC/APC – G.657A2 – 2.0mm – 5m

Telenco Patchcord – Yellow – Simplex – LC/UPC to SC/APC – G.657A2 – 2.0mm – 5m

The Telenco 5m Simplex LC/UPC to SC/APC Fibre Patchcord provides reliable singlemode fibre connectivity for FTTH, data centre and telecommunications networks. Manufactured using G.657A2 9/125µm bend-insensitive fibre, the patchcord provides increased flexibility for routing through cabinets, patch panels and other space-constrained fibre installations.

Featuring an LC/UPC connector at one end and SC/APC connector at the other, the patchcord enables direct interconnection between equipment using different fibre interfaces. High-precision ceramic ferrules support accurate fibre alignment, while the combination of low insertion loss and high return loss provides dependable optical performance.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) outer jacket, making it suitable for professional indoor fibre infrastructure. Its simplex configuration provides a single optical fibre connection, while the bend-insensitive G.657A2 fibre supports tighter routing without compromising network performance.

At 5 metres long, the patchcord provides additional routing flexibility between optical equipment, distribution frames, patch panels and network termination points.

Key Features:

• 5m singlemode fibre optic patchcord

• Simplex (SX) configuration

• LC/UPC to SC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• 9/125µm fibre construction

• Compact 2.0mm cable diameter

• Yellow cable jacket

• LSZH outer sheath

• High-precision ceramic ferrules

• Low insertion loss

• ≥55dB return loss at LC/UPC interface

• ≥60dB return loss at SC/APC interface

• Suitable for mixed LC and SC fibre interfaces

• Suitable for FTTH, data centre and telecoms networks

• Compliant with applicable IEC 61754 and IEC 61300 standards

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: LC/UPC

• Connector B: SC/APC

• Connector Polish: UPC (LC) / APC (SC)

• Fibre Type: Singlemode G.657A2

• Fibre Size: 9/125µm

• Length: 5m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Ferrule Material: Ceramic

• Insertion Loss: ≤0.25dB typical

• Maximum Insertion Loss: 0.30dB

• Return Loss – LC/UPC: ≥55dB

• Return Loss – SC/APC: ≥60dB

• Operating Temperature: -20°C to +60°C

• Approximate Weight: 0.025kg

• Standards: IEC 61754 and IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Data centre fibre connectivity

• Telecommunications networks

• Optical distribution frames

• Fibre optic patch panels

• Singlemode optical networks

• LC to SC equipment interconnection

• Network equipment rooms
