Telenco Patchcord – Yellow – Simplex – SC/APC to SC/UPC – G.657A2 – 2.0mm – 1m

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/UPC – G.657A2 – 2.0mm – 1m

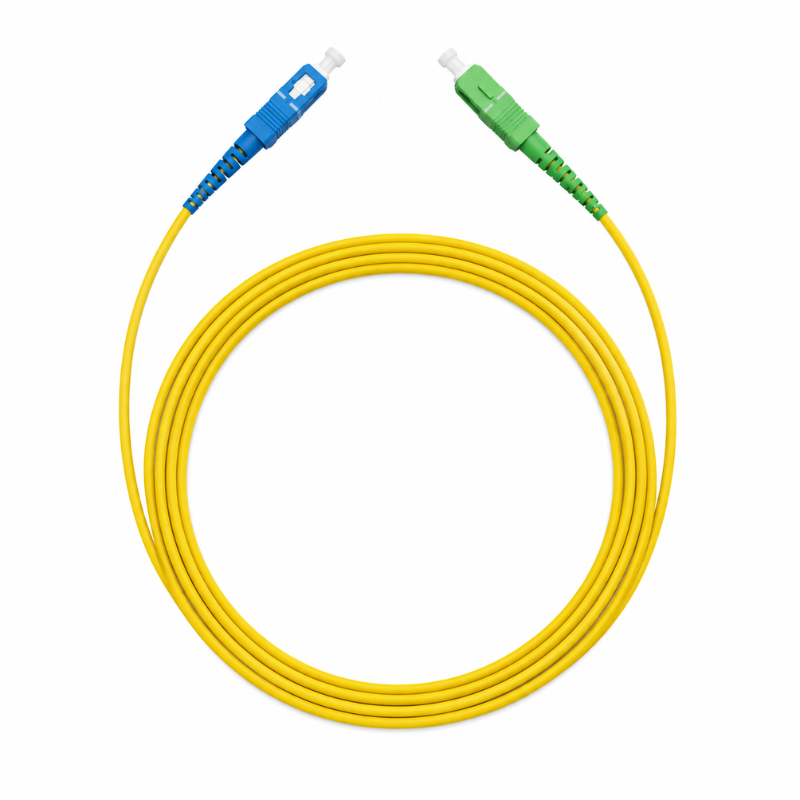

The Telenco 1m Simplex SC/APC to SC/UPC Fibre Patchcord is designed for reliable singlemode fibre connectivity across FTTH, telecommunications and optical network infrastructure. Manufactured using G.657A2 bend-insensitive singlemode fibre, it supports compact routing within telecom cabinets, patch panels and other space-constrained installations.

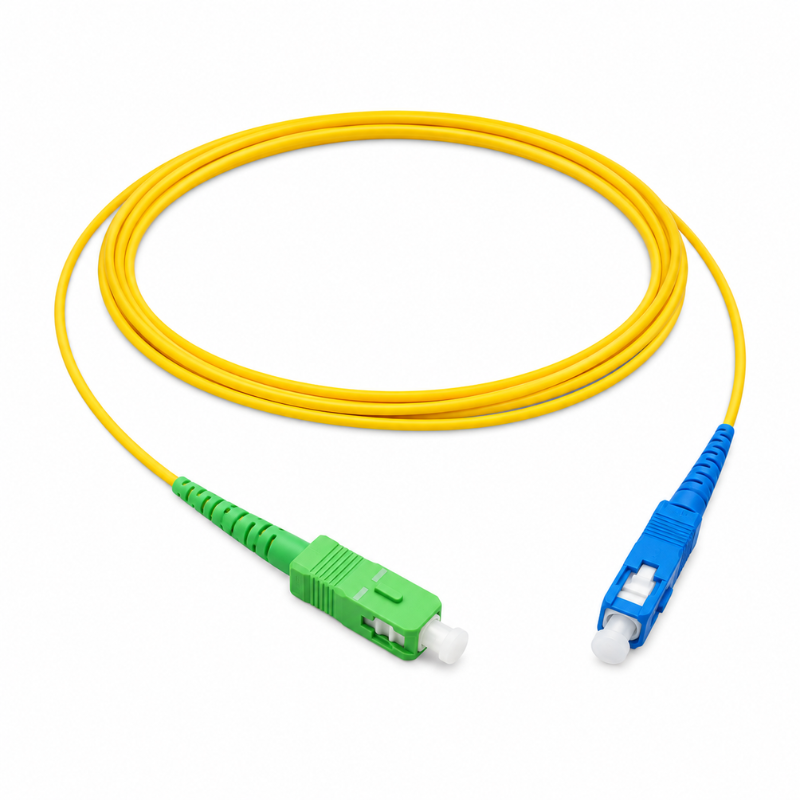

Featuring an SC/APC connector at one end and an SC/UPC connector at the other, the patchcord provides direct connectivity between equipment requiring different SC connector polish types. The connectors incorporate zirconia ceramic ferrules for precise fibre alignment, supporting low insertion loss and consistent optical performance.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) jacket and a simplex configuration for a single optical fibre connection. Its G.657A2 construction and 15mm static bend radius make it suitable for controlled routing within high-density fibre management systems.

Each patchcord is labelled for insertion loss and return loss conformity and traceability and is tested in accordance with IEC 61300 requirements for optical performance and durability.

Key Features:

• 1m singlemode fibre optic patchcord

• Simplex (SX) configuration

• SC/APC to SC/UPC connectivity

• G.657A2 bend-insensitive singlemode fibre

• Compact 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer jacket

• Thermoplastic connector housings

• Zirconia ceramic ferrules

• Low insertion loss and high return loss

• Grade B insertion loss ≤0.12dB typical

• 15mm static bend radius

• 1000N crush resistance

• Labelled for IL/RL conformity and traceability

• Suitable for FTTH and telecommunications networks

• IEC 61300 and IEC 61754 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: SC/APC

• Connector B: SC/UPC

• Connector Polish: APC / UPC

• Fibre Type: Singlemode G.657A2

• Length: 1m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Connector Housing: Thermoplastic

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB maximum

• Grade B Insertion Loss: ≤0.12dB typical

• Return Loss – SC/APC: ≥60dB

• Return Loss – SC/UPC: ≥50dB

• Operating Temperature: -40°C to +75°C

• Crush Resistance: 1000N

• Static Bend Radius: 15mm

• Traceability: Labelled for IL/RL Conformity and Traceability

• Compliance: IEC 61300, IEC 61754, EN 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Telecom cabinets

• Fibre optic patch panels

• Optical distribution frames

• Singlemode fibre networks

• SC/APC to SC/UPC interconnections

• Fibre access network installations
