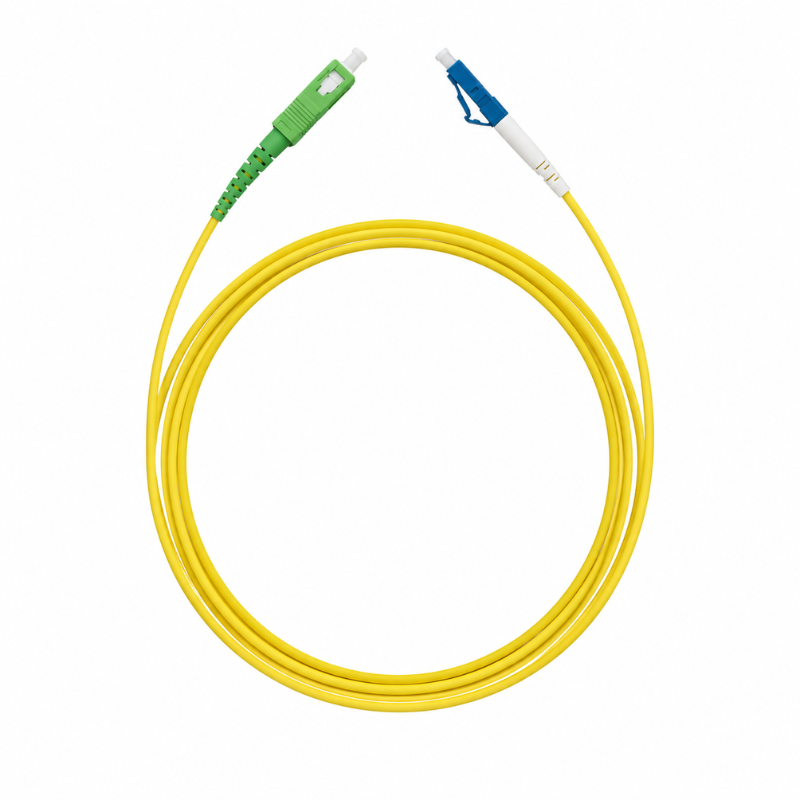

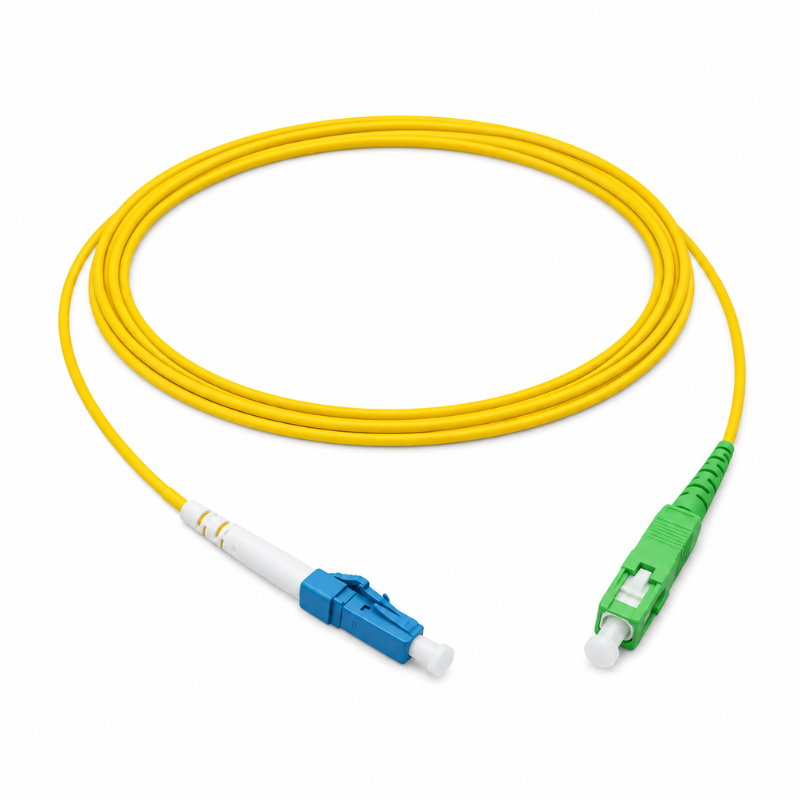

Telenco Patchcord – Yellow – Simplex – LC/UPC to SC/APC – G.657A2 – 2.0mm – 1m

Telenco Patchcord – Yellow – Simplex – LC/UPC to SC/APC – G.657A2 – 2.0mm – 1m

The Telenco 1m Simplex LC/UPC to SC/APC Fibre Patchcord provides reliable singlemode fibre connectivity for FTTH, FTTx, telecommunications and data centre networks. Manufactured using G.657A2 9/125µm bend-insensitive fibre, the patchcord is designed to support tighter routing within cabinets, patch panels and other space-constrained fibre installations.

Featuring an LC/UPC connector at one end and an SC/APC connector at the other, the patchcord enables direct interconnection between equipment using different fibre interfaces. Low insertion loss and high return loss help maintain dependable optical performance across professional fibre networks.

The compact 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath, making it suitable for indoor telecommunications and data infrastructure. Its simplex configuration provides a single optical fibre connection, while the bend-insensitive G.657A2 fibre supports flexible routing in confined installations.

At 1 metre long, the patchcord is particularly suited to short equipment-to-panel and panel-to-panel connections where minimal excess cable and organised fibre management are required.

Key Features:

• 1m singlemode fibre optic patchcord

• Simplex (SX) configuration

• LC/UPC to SC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• 9/125µm fibre construction

• Compact 2.0mm cable diameter

• Yellow cable jacket

• LSZH outer sheath

• Suitable for tight and compact installations

• Low insertion loss

• ≥55dB return loss at LC/UPC interface

• ≥60dB return loss at SC/APC interface

• Suitable for mixed LC and SC fibre interfaces

• Ideal for FTTH, data centre and telecoms networks

• IEC 61754 and IEC 61300 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: LC/UPC

• Connector B: SC/APC

• Connector Polish: UPC (LC) / APC (SC)

• Fibre Type: Singlemode G.657A2

• Fibre Size: 9/125µm

• Length: 1m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Insertion Loss: ≤0.25dB for 97% typical

• Maximum Insertion Loss: 0.30dB

• Return Loss – LC/UPC: ≥55dB

• Return Loss – SC/APC: ≥60dB

• Operating Temperature: -20°C to +60°C

• Approximate Weight: 0.012kg

• Compliance: IEC 61754, IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre connectivity

• Fibre optic patch panels

• Optical distribution frames

• Singlemode optical networks

• LC to SC equipment interconnection

• Short-distance fibre connections
