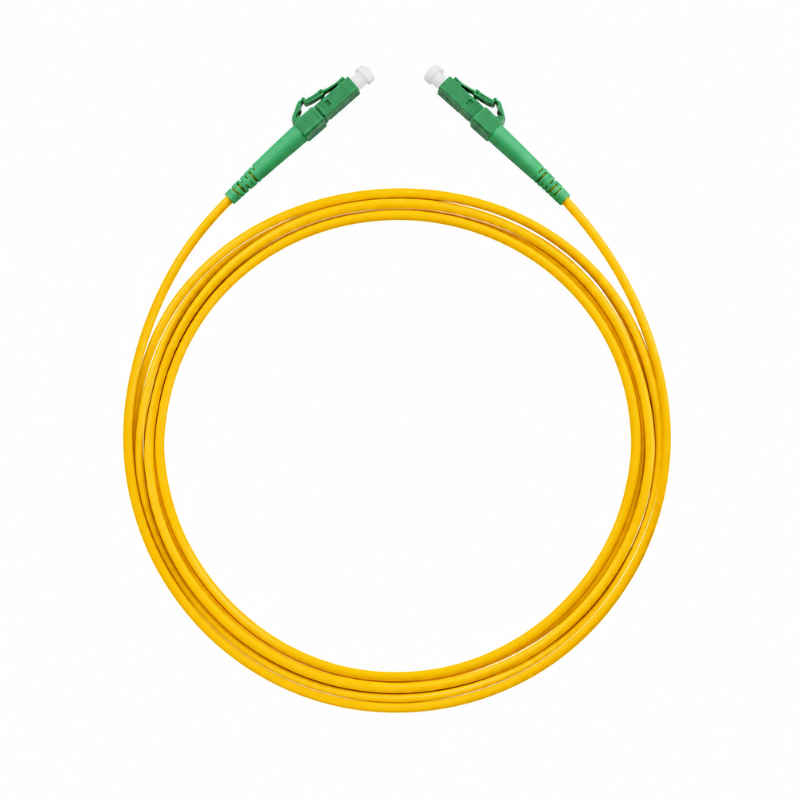

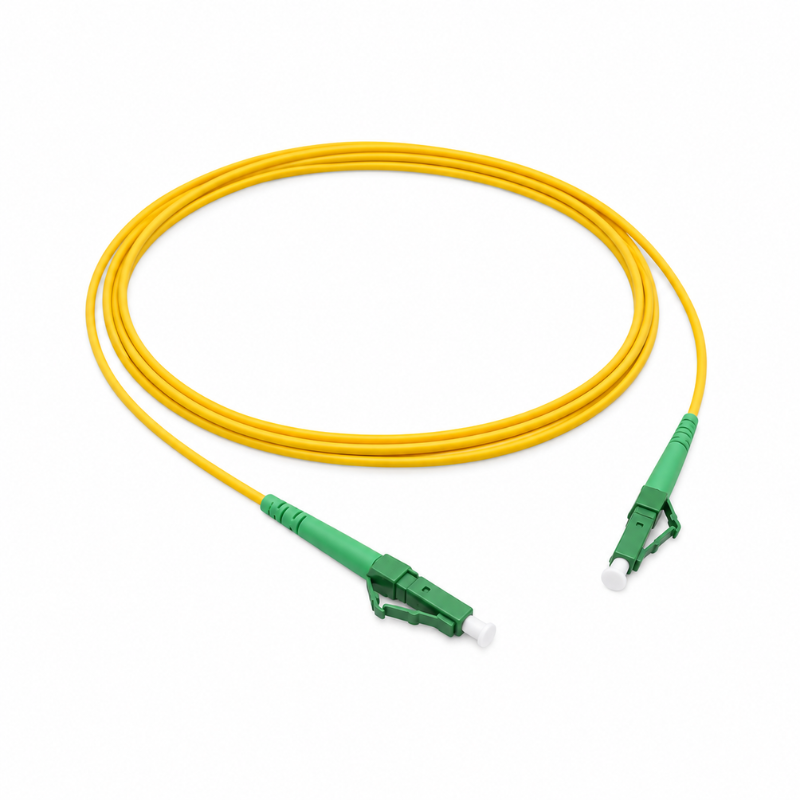

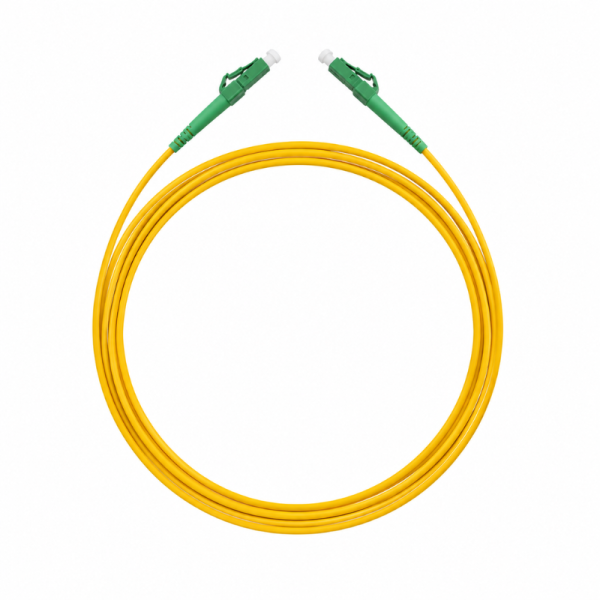

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 1m

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 1m

The Telenco 1m Simplex LC/APC to LC/APC Fibre Patchcord provides high-performance singlemode fibre connectivity for FTTH, FTTx, telecommunications and data centre networks. Manufactured using G.657A2 9/125µm bend-insensitive fibre, the patchcord offers increased flexibility for routing within compact cabinets, patch panels and other space-constrained fibre installations. Both ends are terminated with LC/APC connectors featuring high-performance zirconia ceramic ferrules. The APC polished interfaces provide a return loss of ≥60dB, while low insertion loss supports reliable optical signal transmission across professional fibre networks.

The compact 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath, making it suitable for indoor telecommunications and data infrastructure. Its simplex configuration provides a single optical fibre connection, while the compact LC connector format supports high-density fibre patching.

At 1 metre long, the patchcord is ideal for short-distance connections between patch panels, optical distribution equipment and active network equipment where minimal excess cable and neat fibre management are required.

Key Features:

• 1m singlemode fibre optic patchcord

• Simplex (SX) configuration

• LC/APC to LC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• 9/125µm fibre construction

• Compact 2.0mm cable diameter

• Yellow cable for straightforward identification

• LSZH outer sheath

• Flexible design for confined installations

• High-performance zirconia ceramic ferrules

• Low insertion loss

• ≥60dB APC return loss

• Suitable for high-density fibre installations

• IEC 61754-20 compliant LC connectors

• Tested in accordance with IEC 61300 requirements

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: LC/APC

• Connector B: LC/APC

• Connector Polish: APC (Angled Physical Contact)

• Fibre Type: Singlemode G.657A2

• Fibre Size: 9/125µm

• Length: 1m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB for 97% of connections

• Maximum Insertion Loss: 0.30dB

• Return Loss: ≥60dB

• Operating Temperature: -20°C to +60°C

• Approximate Weight: 0.012kg

• Connector Standard: IEC 61754-20

• Performance Testing: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre patching

• Optical distribution frames

• Fibre optic patch panels

• Singlemode optical networks

• Network equipment interconnection

• High-density LC fibre installations

• Short-distance fibre connections
