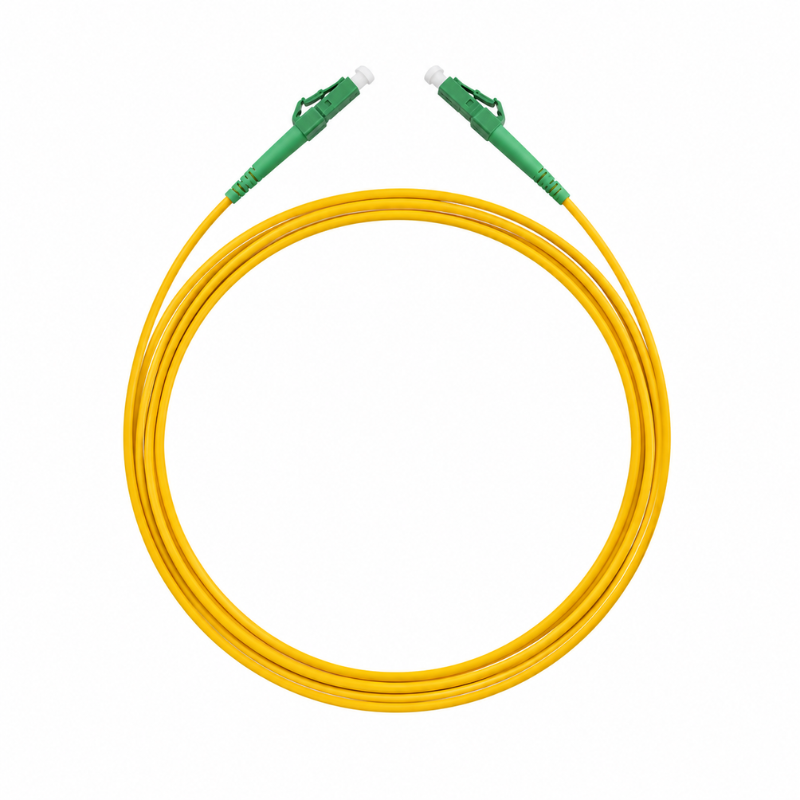

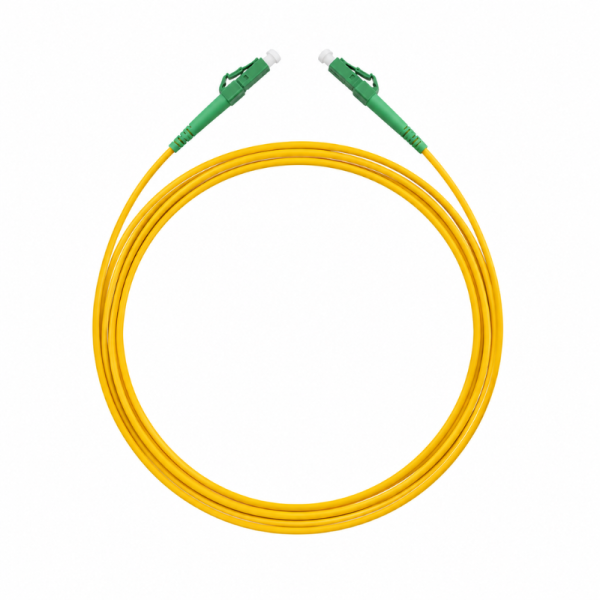

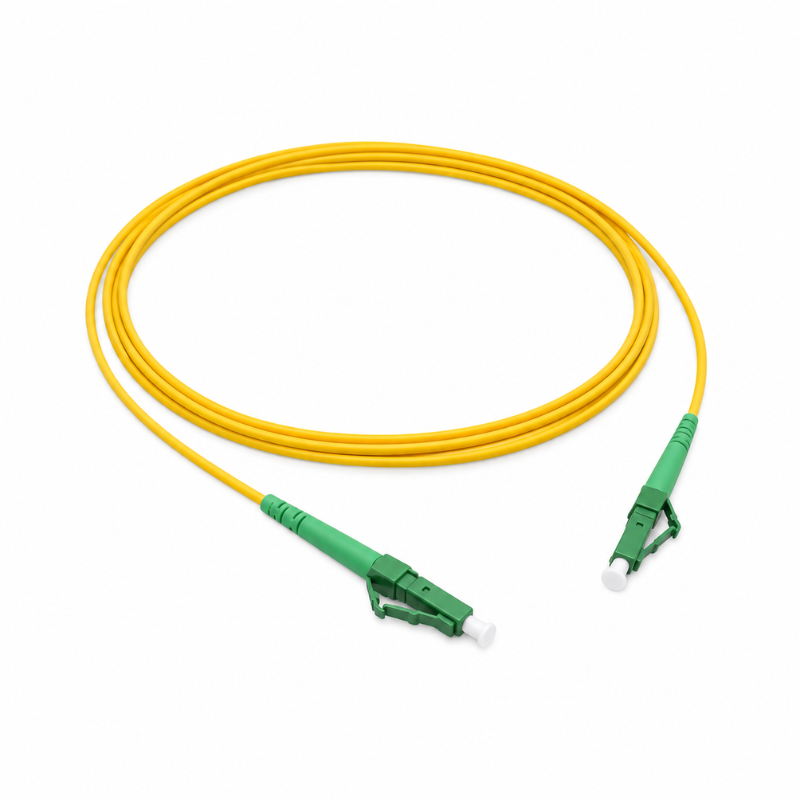

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 2m

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 2m

The Telenco 2m Simplex LC/APC to LC/APC Fibre Patchcord provides reliable singlemode fibre connectivity for FTTH, FTTx, telecommunications and data centre networks. Manufactured using G.657A2 9/125µm bend-insensitive fibre, the patchcord is designed to maintain optical performance when routed through compact or space-constrained installations.

Both ends are terminated with LC/APC connectors incorporating high-performance zirconia ceramic ferrules. The APC polished interface provides a return loss of ≥60dB, while insertion loss is ≤0.25dB for 97% of connections, supporting dependable optical transmission across professional fibre networks.

The patchcord features a 2.0mm yellow LSZH (Low Smoke Zero Halogen) jacket, combining a compact cable profile with enhanced fire safety characteristics. Its simplex configuration provides a single optical fibre connection, while the compact LC connector format is particularly suited to high-density patching environments.

At 2 metres long, the patchcord is well suited to short equipment-to-panel and panel-to-panel connections where controlled cable management and minimal excess fibre are required.

Key Features:

• 2m singlemode fibre optic patchcord

• Simplex (SX) configuration

• LC/APC to LC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• 9/125µm fibre construction

• Compact 2.0mm cable diameter

• Yellow cable jacket

• LSZH outer sheath

• Suitable for tight and compact routing

• High-performance zirconia ceramic ferrules

• Low insertion loss

• ≥60dB APC return loss

• Suitable for FTTH and telecommunications networks

• IEC 61754-20 LC connector standard

• IEC 61300 performance testing compliance

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: LC/APC

• Connector B: LC/APC

• Connector Polish: APC (Angled Physical Contact)

• Fibre Type: Singlemode G.657A2

• Fibre Size: 9/125µm

• Length: 2m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB for 97% of connections

• Maximum Insertion Loss: 0.30dB

• Return Loss: ≥60dB

• Operating Temperature: -20°C to +60°C

• Approximate Weight: 0.014kg

• Connector Standard: IEC 61754-20

• Performance Testing: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre patching

• Optical distribution frames

• Fibre optic patch panels

• Singlemode optical networks

• Network equipment interconnection

• High-density LC fibre installations
