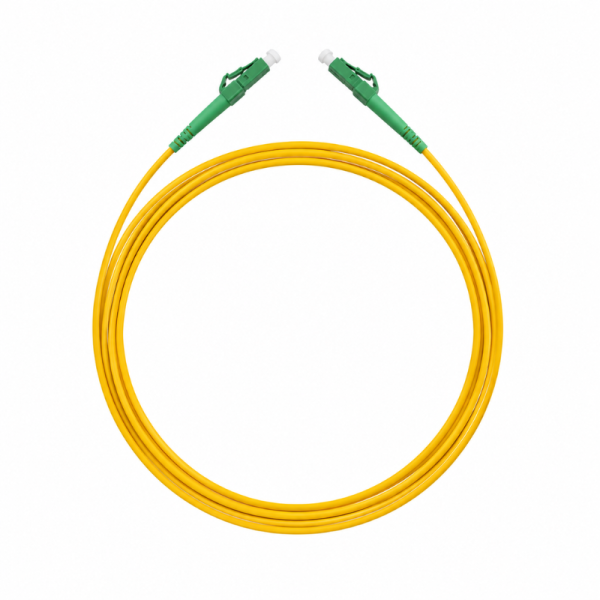

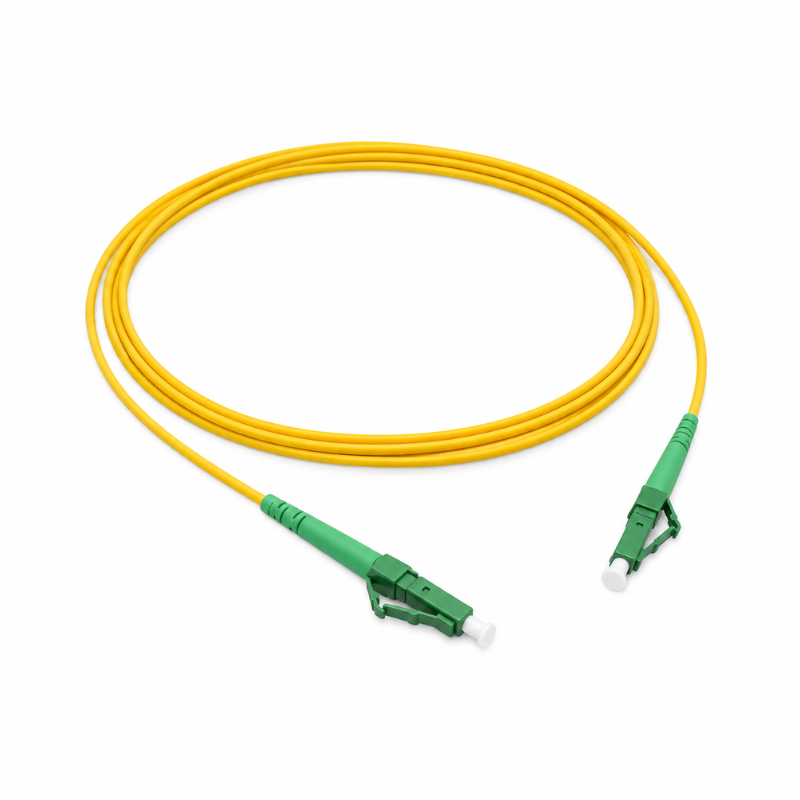

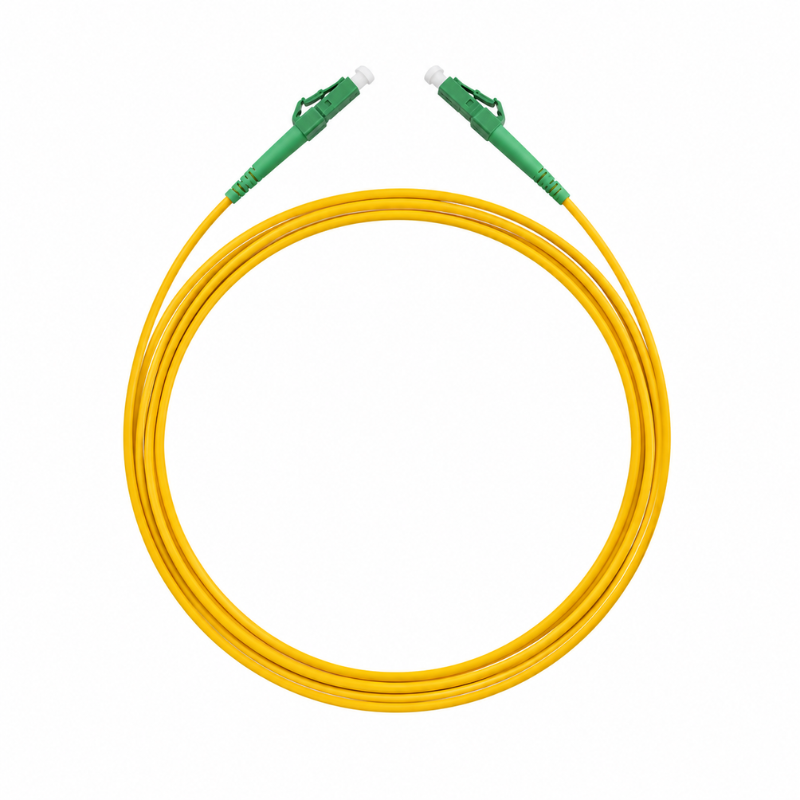

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 5m

Telenco Patchcord – Yellow – Simplex LC/APC to LC/APC – G.657A2 – 2.0mm – 5m

The Telenco 5m Simplex LC/APC to LC/APC Fibre Patchcord is designed to provide reliable singlemode fibre connectivity across FTTH, telecommunications and data centre networks. Manufactured using G.657A2 9/125µm bend-insensitive fibre, the patchcord supports tighter routing while maintaining dependable optical performance.

Both ends are terminated with LC/APC connectors featuring high-precision zirconia ceramic ferrules. The APC polished interface provides a return loss of ≥60dB, making the patchcord suitable for optical networks where low reflection and consistent signal transmission are important.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath, supporting use within telecommunications and data infrastructure environments. Its simplex configuration provides a single optical fibre connection, while the compact LC connectors are well suited to high-density equipment and patching applications.

At 5 metres long, the patchcord provides additional routing flexibility between optical equipment, patch panels and distribution points while maintaining a neat and manageable installation.

Key Features:

• 5m singlemode fibre optic patchcord

• Simplex (SX) configuration

• LC/APC connector at both ends

• G.657A2 bend-insensitive singlemode fibre

• 9/125µm fibre construction

• 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer sheath

• High-precision zirconia ceramic ferrules

• Low insertion loss

• ≥60dB APC return loss

• Suitable for tighter fibre routing

• Compact LC connectors for high-density applications

• Suitable for FTTH, telecoms and data centre networks

• IEC 61754-20 connector standard

• Tested in accordance with IEC 61300 requirements

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: LC/APC

• Connector B: LC/APC

• Connector Polish: APC (Angled Physical Contact)

• Fibre Type: Singlemode G.657A2

• Fibre Size: 9/125µm

• Length: 5m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB for 97% typical

• Maximum Insertion Loss: 0.30dB

• Return Loss: ≥60dB

• Operating Temperature: -20°C to +60°C

• Approximate Weight: 0.020–0.025kg

• Connector Standard: IEC 61754-20

• Testing Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre patching

• Optical distribution frames

• Fibre optic patch panels

• Singlemode optical networks

• Network equipment interconnection

• High-density LC fibre installations
