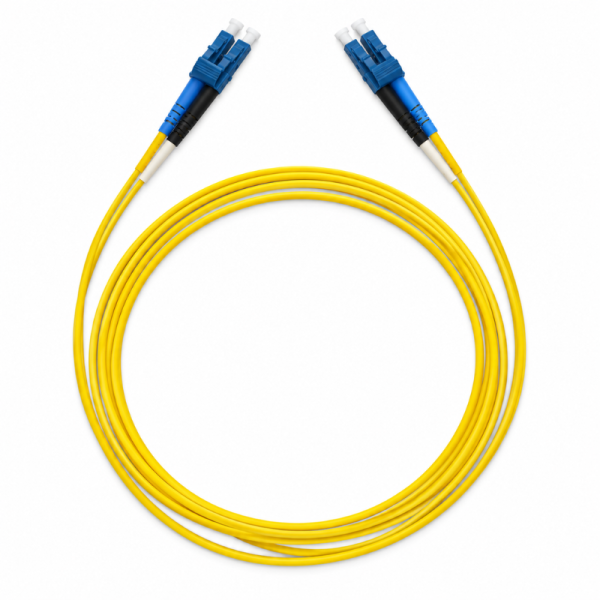

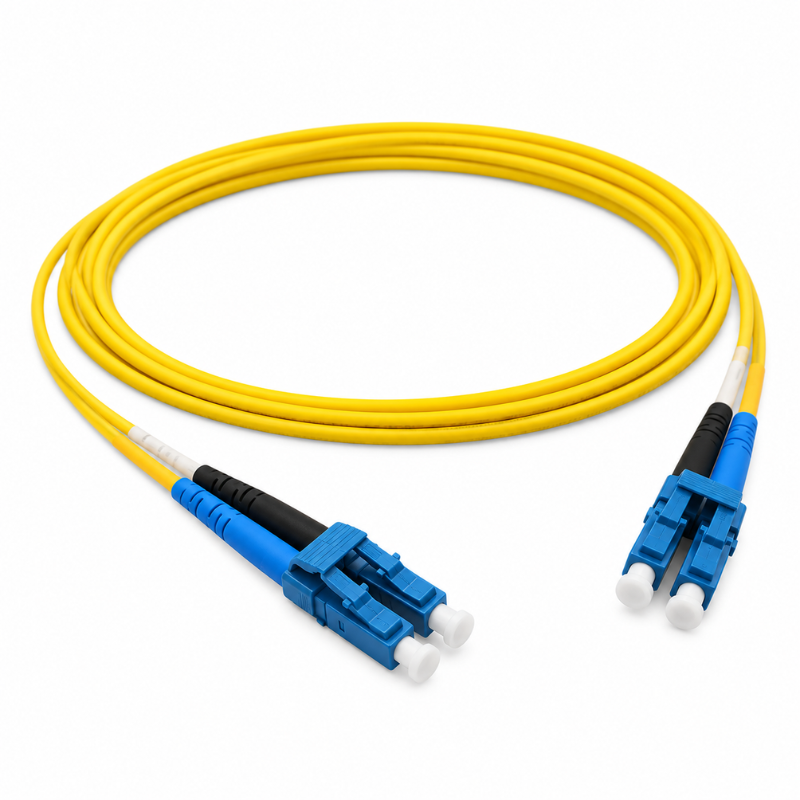

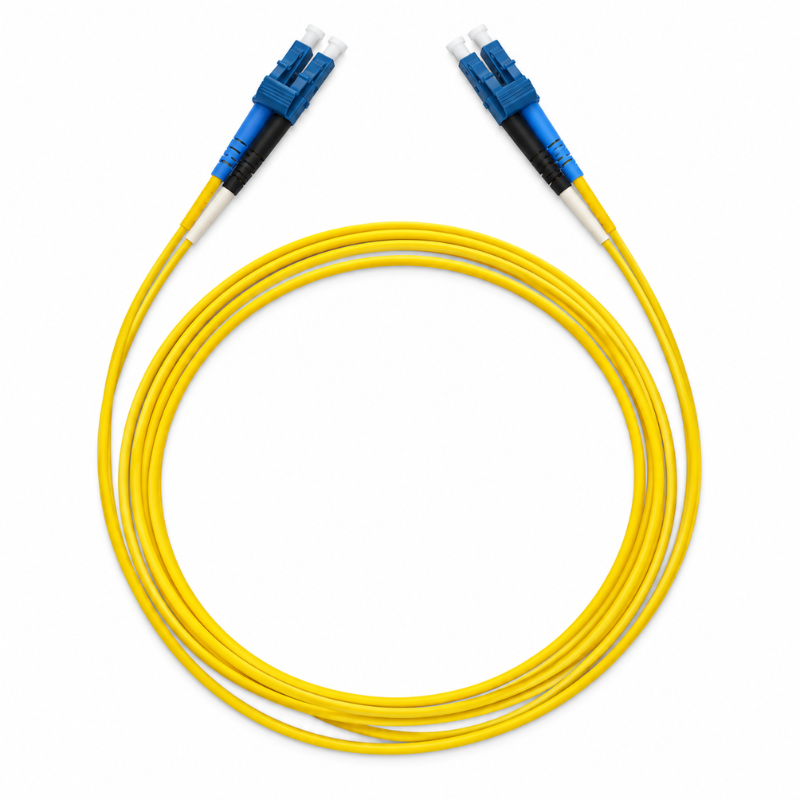

Telenco Patchcord – Yellow – Duplex – LC/UPC to LC/UPC – G.657A2 – 2.0mm – 1m

Telenco Patchcord – Yellow – Duplex – LC/UPC to LC/UPC – G.657A2 – 2.0mm – 1m

The Telenco 1m Duplex LC/UPC to LC/UPC Fibre Patchcord provides high-performance singlemode fibre connectivity for FTTH, optical access and telecommunications networks. Manufactured using G.657A2 bend-insensitive singlemode fibre, the patchcord is designed for reliable optical transmission while supporting tighter routing within cabinets, patch panels and other space-constrained installations.

Featuring LC/UPC connectors at both ends, the patchcord provides compact connectivity suited to high-density fibre environments. Its duplex (DX) configuration incorporates two optical fibres, supporting transmit and receive connections within a single patchcord assembly. High-precision zirconia ceramic ferrules provide accurate fibre alignment and stable mating performance.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath for use within professional indoor fibre infrastructure. G.657A2 fibre, combined with a 15mm static bend radius, provides flexibility for controlled routing within telecom racks and optical cabinets.

Each patchcord is labelled with its part number, batch number and IL/RL conformity for full traceability. The assembly is tested against mechanical and environmental requirements, including crush resistance, flexing, vibration, thermal cycling and water immersion.

Key Features:

• 1m singlemode fibre optic patchcord

• Duplex (DX) configuration

• LC/UPC to LC/UPC connectivity

• G.657A2 bend-insensitive singlemode fibre

• Compact 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer sheath

• High-precision zirconia ceramic ferrules

• Low insertion loss

• ≥50dB UPC return loss

• Grade B typical insertion loss ≤0.12dB

• Excellent mechanical and temperature stability

• 15mm static bend radius

• 1000N crush resistance

• Individually labelled for traceability

• Optional B2ca/Cca fire-rated versions available

• IEC 61754 and IEC 61300 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Duplex (DX)

• Connector A: LC/UPC

• Connector B: LC/UPC

• Connector Polish: UPC / UPC

• Fibre Type: Singlemode G.657A2

• Length: 1m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Connector Housing: Thermoplastic

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB for 97% of connections

• Grade B Insertion Loss: ≤0.12dB typical

• Return Loss: ≥50dB

• Operating Temperature: -40°C to +75°C

• Crush Resistance: 1000N

• Static Bend Radius: 15mm

• Mechanical Testing: Torsion, Flexing, Vibration, Impact and Mating Durability

• Environmental Testing: Water Immersion, Dust Resistance, Thermal Cycling and Ageing

• Fire Rating Options: B2ca / Cca available upon request

• Traceability: Part Number, Batch Number and IL/RL Conformity

• Standards: IEC 61754, IEC 61300 Series

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Telecommunications networks

• Optical cabinets

• Fibre optic patch panels

• Telecom racks and cabinets

• Optical distribution frames

• High-density LC fibre connectivity

• Singlemode network equipment interconnection
