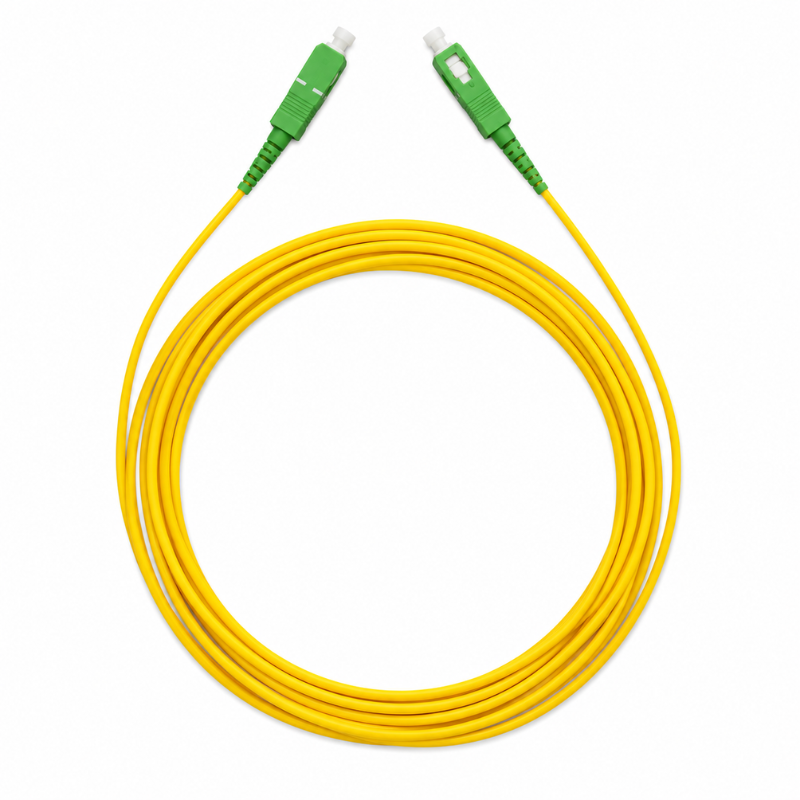

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 2m

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 2m

The Telenco 2m Simplex SC/APC to SC/APC Fibre Patchcord provides high-performance singlemode fibre connectivity for FTTH, telecommunications and optical network infrastructure. Manufactured using G.657A2 bend-insensitive singlemode fibre, the patchcord supports tighter routing within patch panels, telecom cabinets and other space-constrained fibre installations.

Both ends are terminated with SC/APC connectors featuring precision zirconia ceramic ferrules for accurate fibre alignment and consistent mating. The APC interfaces provide a return loss of ≥60dB, while insertion loss is ≤0.25dB maximum and ≤0.12dB typical for Grade B performance.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) jacket and a simplex configuration for a single optical fibre connection. Its G.657A2 construction provides enhanced bend performance, with a 15mm static bend radius supporting controlled fibre routing within compact network environments.

Fully tested to applicable IEC standards for performance and durability, the patchcord is labelled with its part number and batch ID for traceability. B2ca and Cca fire resistance options are also available for installations with specific fire performance requirements.

Key Features:

• 2m singlemode fibre optic patchcord

• Simplex (SX) configuration

• SC/APC to SC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• Compact 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer jacket

• Precision zirconia ceramic ferrules

• Low insertion loss

• ≥60dB return loss

• Grade B typical insertion loss ≤0.12dB

• 15mm static bend radius

• 1000N crush resistance

• Suitable for compact fibre routing

• Labelled with part number and batch ID

• B2ca/Cca fire resistance options available

• Tested to IEC standards for performance and durability

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: SC/APC

• Connector B: SC/APC

• Connector Polish: APC / APC

• Fibre Type: Singlemode G.657A2

• Length: 2m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Connector Housing: Thermoplastic

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB maximum

• Grade B Insertion Loss: ≤0.12dB typical

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Crush Resistance: 1000N

• Static Bend Radius: 15mm

• Fire Rating Options: B2ca / Cca available

• Traceability: Part Number and Batch ID

• Standards: IEC 61300, IEC 61754

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Fibre optic patch panels

• Telecom cabinets and racks

• Optical distribution frames

• Singlemode optical networks

• Fibre access networks

• SC/APC equipment interconnection
