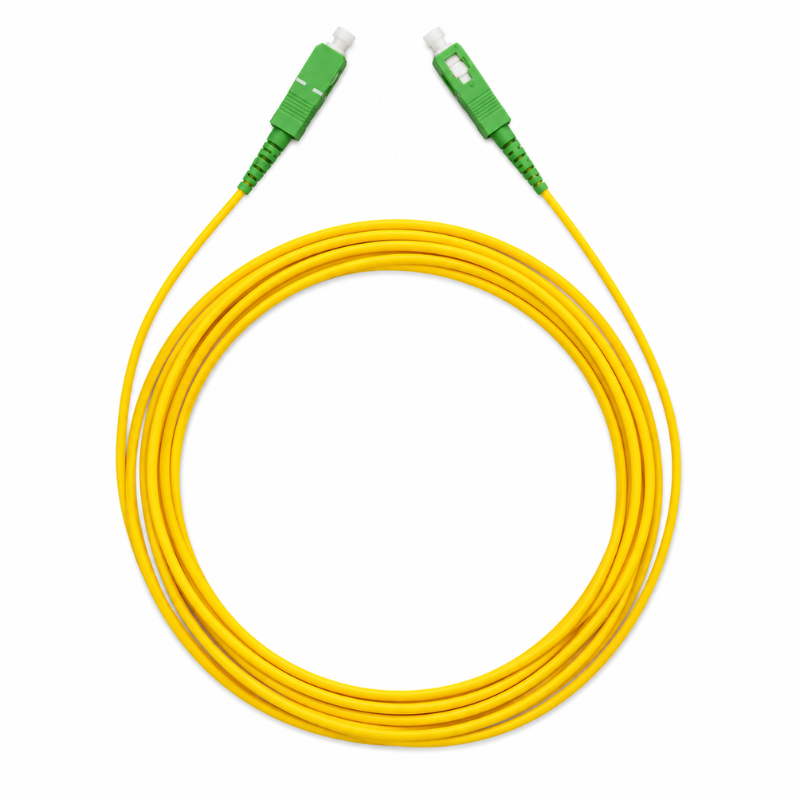

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 1m

Telenco Patchcord – Yellow – Simplex – SC/APC to SC/APC – G.657A2 – 2.0mm – 1m

The Telenco 1m Simplex SC/APC to SC/APC Fibre Patchcord provides high-performance singlemode fibre connectivity for FTTH, telecommunications and optical network infrastructure. Manufactured using G.657A2 bend-insensitive singlemode fibre, the patchcord supports tighter routing within telecom racks, patch panels and other space-constrained fibre installations.

Both ends are terminated with SC/APC connectors featuring precision zirconia ceramic ferrules. The APC interfaces provide a return loss of ≥60dB, while insertion loss is ≤0.25dB maximum and ≤0.12dB typical for Grade B performance, supporting reliable optical transmission.

The 2.0mm yellow cable features an LSZH (Low Smoke Zero Halogen) sheath and a simplex configuration for a single optical fibre connection. Its G.657A2 construction provides enhanced bend performance, with a 15mm static bend radius for controlled routing within fibre management systems.

Each patchcord is 100% tested to IEC 61300 for insertion and return loss and labelled with its part number, batch and IL/RL conformity for traceability. Optional B2ca and Cca fire-rated versions are also available for projects with specific fire performance requirements.

Key Features:

• 1m singlemode fibre optic patchcord

• Simplex (SX) configuration

• SC/APC to SC/APC connectivity

• G.657A2 bend-insensitive singlemode fibre

• Compact 2.0mm cable diameter

• Yellow cable for singlemode identification

• LSZH outer sheath

• Precision zirconia ceramic ferrules

• ≤0.12dB typical Grade B insertion loss

• ≥60dB return loss

• 15mm static bend radius

• 1000N crush resistance

• 100% tested for insertion and return loss

• Labelled for full product and performance traceability

• Optional B2ca/Cca fire-rated versions available

• Suitable for FTTH, patch panels and telecom racks

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Patchcord

• Configuration: Simplex (SX)

• Connector A: SC/APC

• Connector B: SC/APC

• Connector Polish: APC / APC

• Fibre Type: Singlemode G.657A2

• Length: 1m

• Cable Diameter: 2.0mm

• Cable Colour: Yellow

• Cable Jacket: LSZH

• Connector Body: Thermoplastic

• Ferrule Material: Zirconia Ceramic

• Insertion Loss: ≤0.25dB maximum

• Grade B Insertion Loss: ≤0.12dB typical

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Crush Resistance: 1000N

• Static Bend Radius: 15mm

• Environmental Compliance: Dust, Water Immersion and Temperature Cycling

• Fire Rating Options: B2ca / Cca available

• Traceability: Part Number, Batch and IL/RL Conformity Labelling

• Testing: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Fibre optic patch panels

• Telecom racks and cabinets

• Optical distribution frames

• Singlemode optical networks

• Fibre access networks

• SC/APC equipment interconnection
