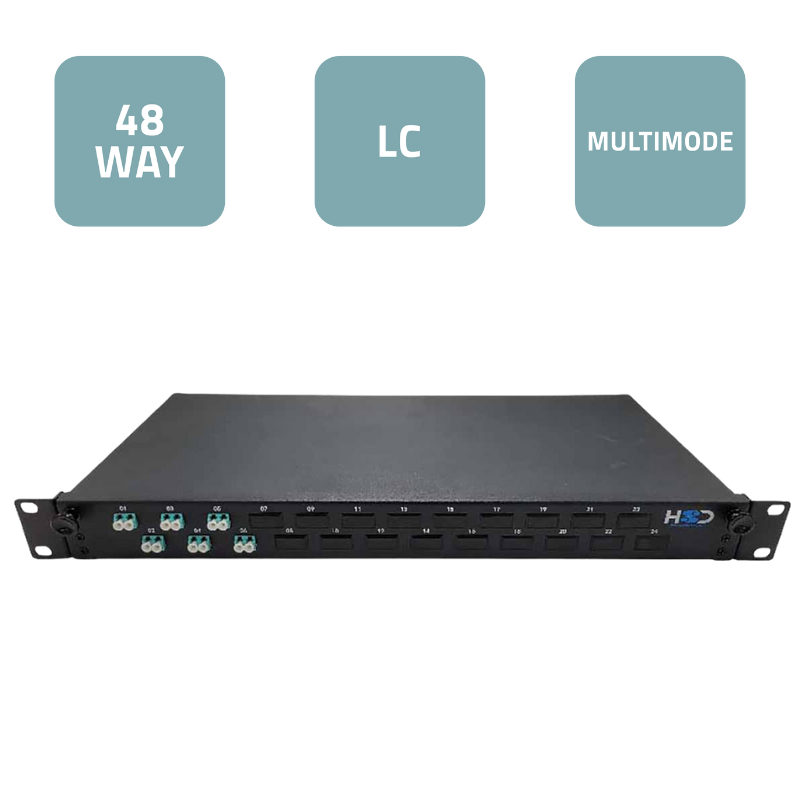

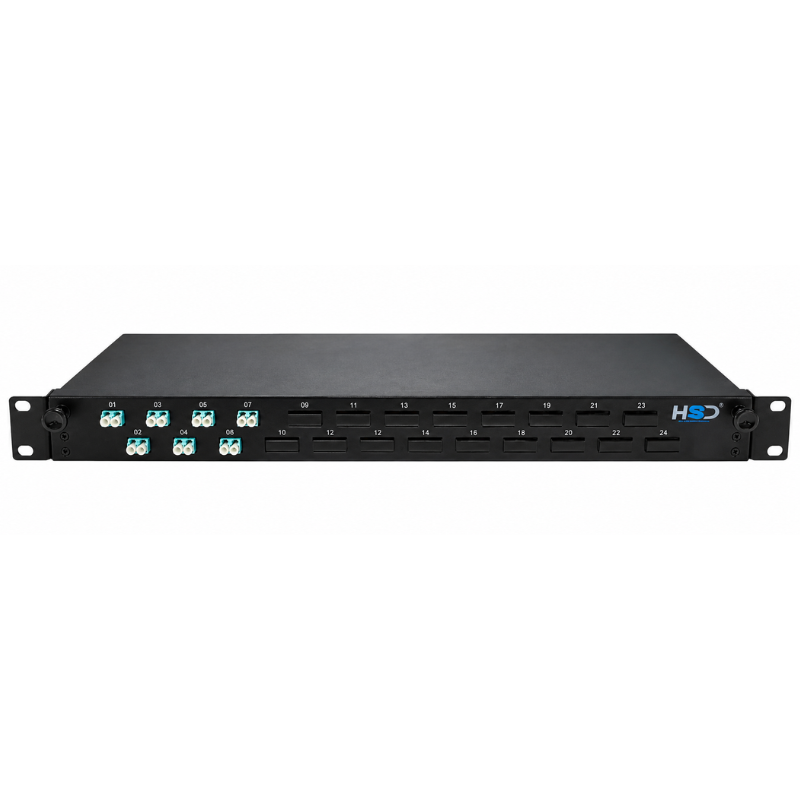

Sliding 19” Patch Panel 1U – 24 LC/UPC Duplex Multimode
This 1U Sliding Patch Panel is a versatile, part-loaded fibre management solution optimised for OM3/OM4 multimode applications. It is equipped with 6 LC/UPC Duplex cross-connects, allowing internal connections between front-facing ports and internal splice trays or patch leads—ideal for structured cabling systems requiring simplified cross-connect routing. With 24 LC Duplex port capacity (48 fibres), this panel supports scalable network expansion while offering front access for easy patching and maintenance.
Key Features:
- 24 LC/UPC Duplex adaptor slots (48-fibre total capacity)
- Pre-installed with 6 x LC/UPC Duplex cross-connects (12 active fibres)
- Sliding drawer design for easy access and cable management
- 1U rack height, suitable for all 19” network enclosures
- Compatible with OM3 and OM4 multimode fibre (50/125 µm)
- Colour-coded aqua adaptors and internal jumpers for clarity and compliance
- Supplied with splice tray, fixings, cable ties and bend control features
- Perfect for data centres, enterprise networks, LANs and interconnect racks
Technical Specification:
- Panel Type: Sliding 1U patch panel
- Fibre Type: OM3/OM4 multimode (50/125 µm)
- Adaptors Installed: 6 x LC/UPC Duplex (12 active fibres)
- Cross-Connects: Internal LC/UPC jumper connections
- Max Capacity: 24 LC Duplex ports / 48 fibres
- Material: Durable powder-coated steel
- Mounting: 19” rack compatible
- Application: High-speed LANs, structured cabling, fibre interconnects
|
