Sliding 19” Patch Panel 1U – 24 LCU DX Single-mode with 24 LCU DX Sleeves

Sliding 19” Patch Panel 1U – 24 LCU DX Single-mode

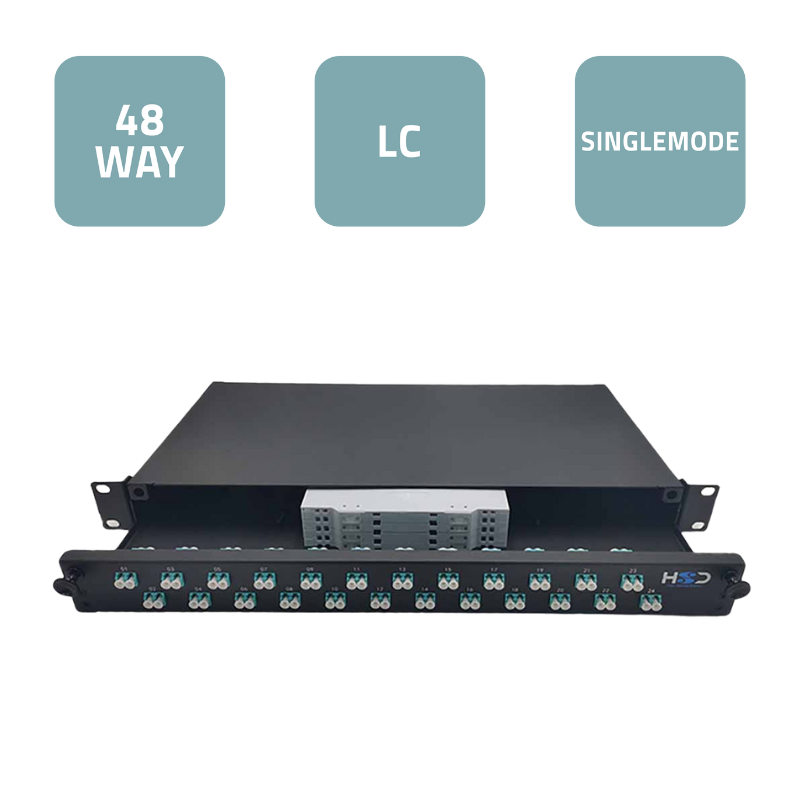

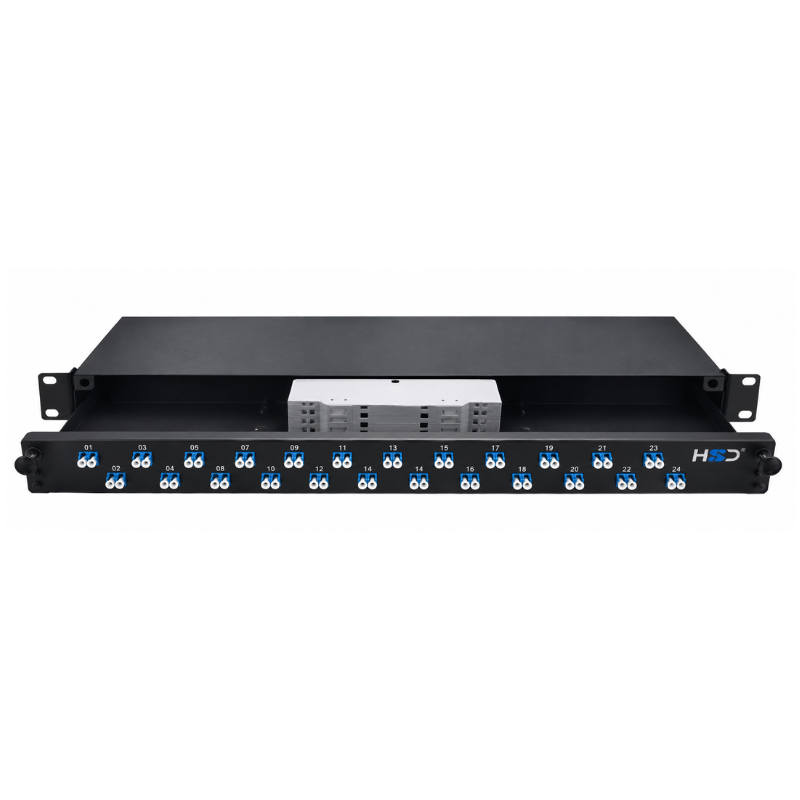

This fully loaded 1U Sliding Patch Panel is designed for high-density single-mode fibre networks. Equipped with 24 LCU DX sleeves, it supports up to 48 fibre connections via LC/UPC duplex interfaces. The sliding drawer provides full front access for straightforward patching, inspection, and management. Suitable for FTTH, telecom, and core network infrastructure, this panel offers a durable and efficient rack-mounted solution for professional optical connectivity.

Key Features:

• 24 LCU DX sleeves (LC/UPC Duplex) for up to 48 single-mode fibres

• Compatible with G.652.D or G.657A2 single-mode fibre

• Sliding tray allows quick access for patching and maintenance

• 1U height, fits all standard 19” rack enclosures

• Pre-loaded for plug-and-play fibre deployment

• Supplied with fixing kit, cable grommets, and splice tray

• Ideal for optical distribution frames, FTTH, and telecom cabinets

Technical Specification:

• Panel Type: Sliding 1U patch panel

• Fibre Type: Single-mode (9/125 µm, LC/UPC)

• Installed Components: 24 x LCU DX sleeves

• Total Capacity: 48 fibres (24 LC duplex ports)

• Material: Powder-coated steel

• Mounting: Standard 19” rack compatible

• Application: Access networks, central offices, data backbones
