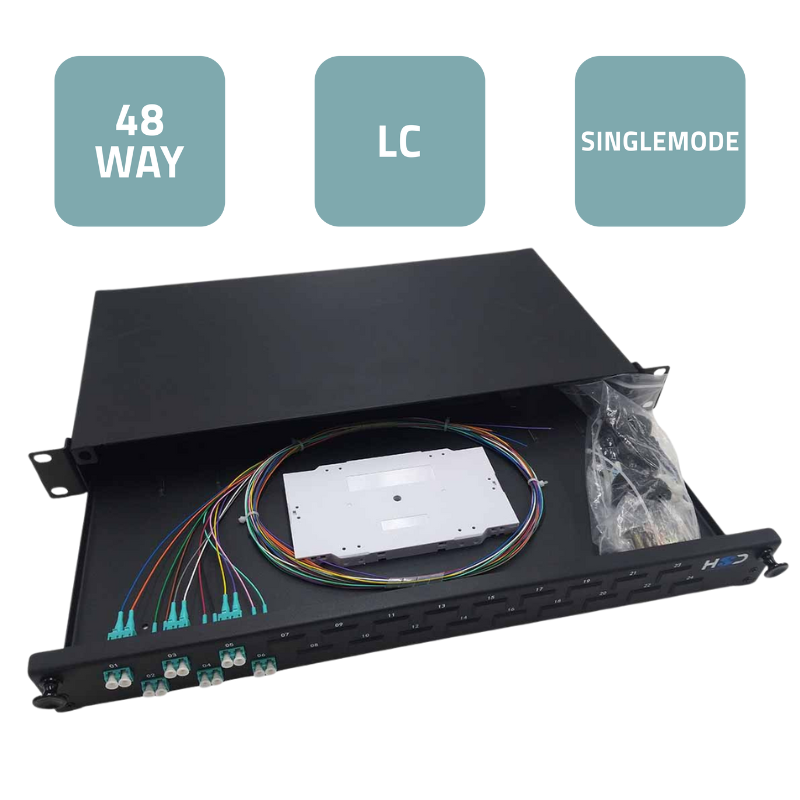

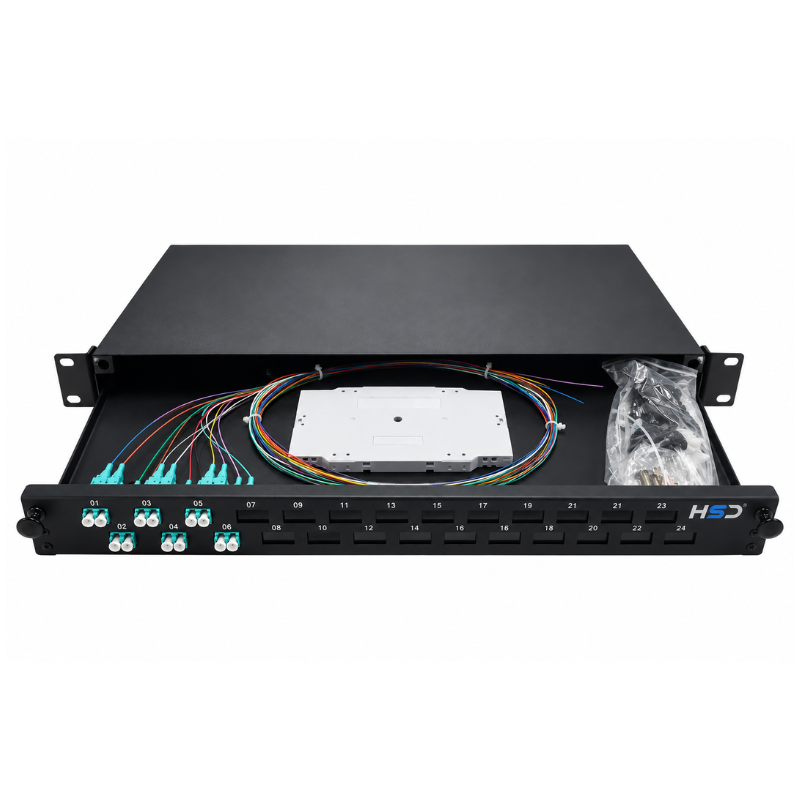

Sliding 19” Patch Panel 1U – 24 LCU DX G.657A2
This part-loaded 1U Sliding Patch Panel provides a scalable, compact solution for single-mode fibre networks using bend-insensitive G.657A2 fibre. Equipped with 6 LCU DX and 12 LC/UPC pigtails, the panel supports 12 active fibres and is expandable to a full 48-fibre capacity via 24 LCU DX ports. The sliding tray offers convenient front access for patching and splicing, making it ideal for FTTH, backbone, and telecom applications.
Key Features:
-
24 LCU DX port capacity (48 fibres total)
-
Pre-installed with 6 LCU DX and 12 LC/UPC pigtails
-
Sliding drawer for easy front access and cable management
-
1U height, 19” rack-mountable
-
Bend-insensitive G.657A2 fibre supports tight routing with minimal loss
-
Supplied with splice tray, fixings, grommets, and cable ties
-
Ideal for FTTH networks, telecom infrastructure, and optical cross-connects
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: G.657A2 single-mode (9/125 µm)
-
Ports Installed: 6 x LCU DX
-
Pigtails Included: 12 x LC/UPC G.657A2
-
Max Capacity: 24 LCU DX (48 fibres)
-
Material: Powder-coated steel
-
Mounting: 19” rack compatible
-
Application: FTTH, data centre links, telecom cabinets, PON networks
|
