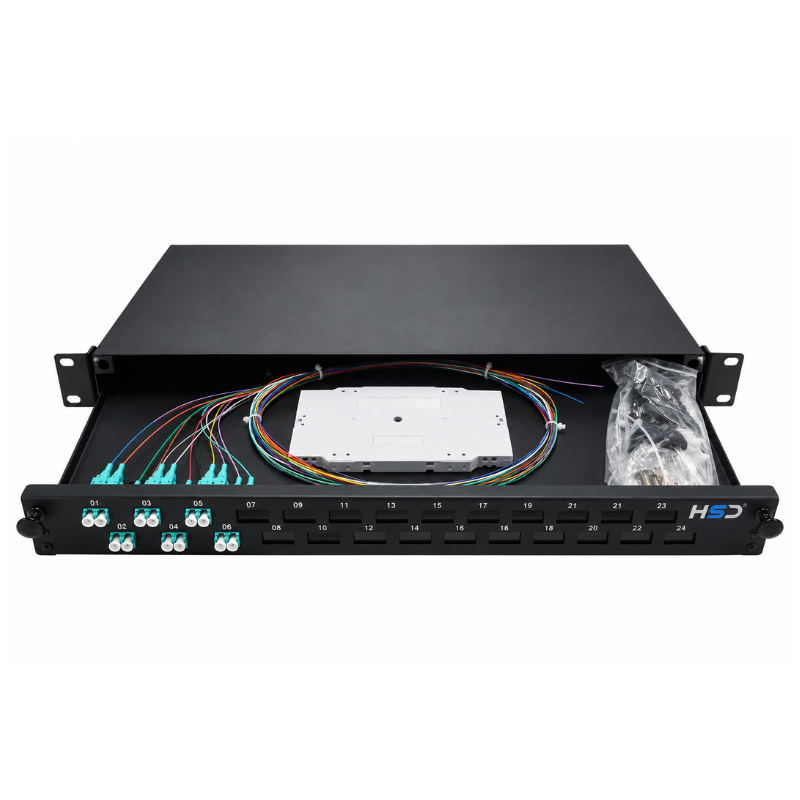

Sliding 19” Patch Panel 1U – 24 LCU DX OM3
This 1U Sliding Patch Panel is a part-loaded solution for high-speed multimode fibre networks. Pre-configured with 12 LCU DX and 24 OM3 LC/UPC pigtails, the panel supports 24-fibre connectivity and offers full capacity for 48 fibres via 24 LC Duplex ports. The sliding tray design ensures easy front access for patching and splicing, making this unit ideal for enterprise networks, campus cabling, and data centre environments using OM3 50/125 µm fibre.
Key Features:
-
12 LCU DX (LC/UPC Duplex) installed – 24 fibre connections active
-
Compatible with OM3 multimode (50/125 µm) fibre systems
-
Supplied with 24 LC/UPC OM3 pigtails, aqua-coloured for compliance
-
Sliding drawer mechanism for simple front access and maintenance
-
1U height, fits all standard 19” rack enclosures
-
Supplied with splice tray, cable management accessories, and fixings
-
Ideal for data centres, LAN backbones, and multimode cross-connects
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: OM3 multimode (50/125 µm)
-
Installed: 12 x LCU DX
-
Pigtails Included: 24 x LC/UPC OM3 (tight-buffered, aqua sheath)
-
Capacity: 24 LCU DX ports (48 fibres total)
-
Material: Powder-coated steel
-
Mounting: 19” rack compatible
-
Application: High-speed LANs, data centre cabling, telecom patching
|
