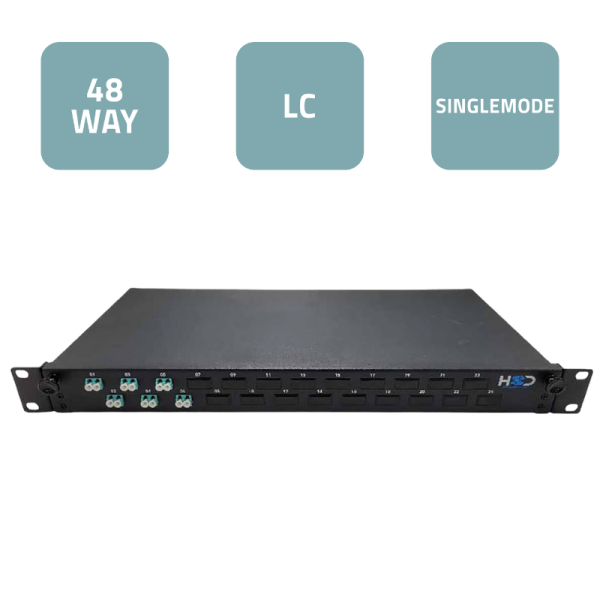

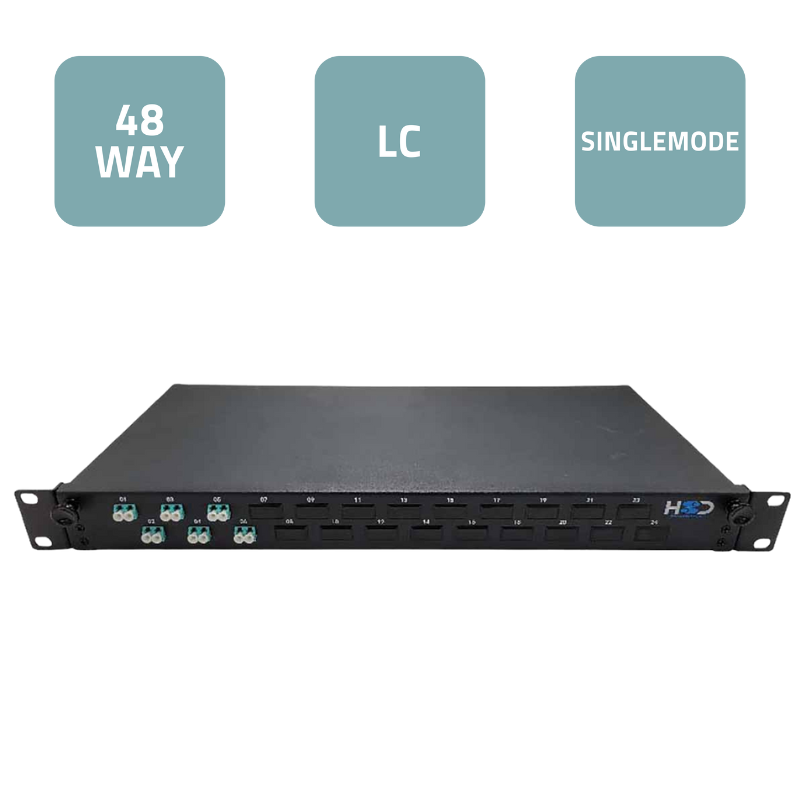

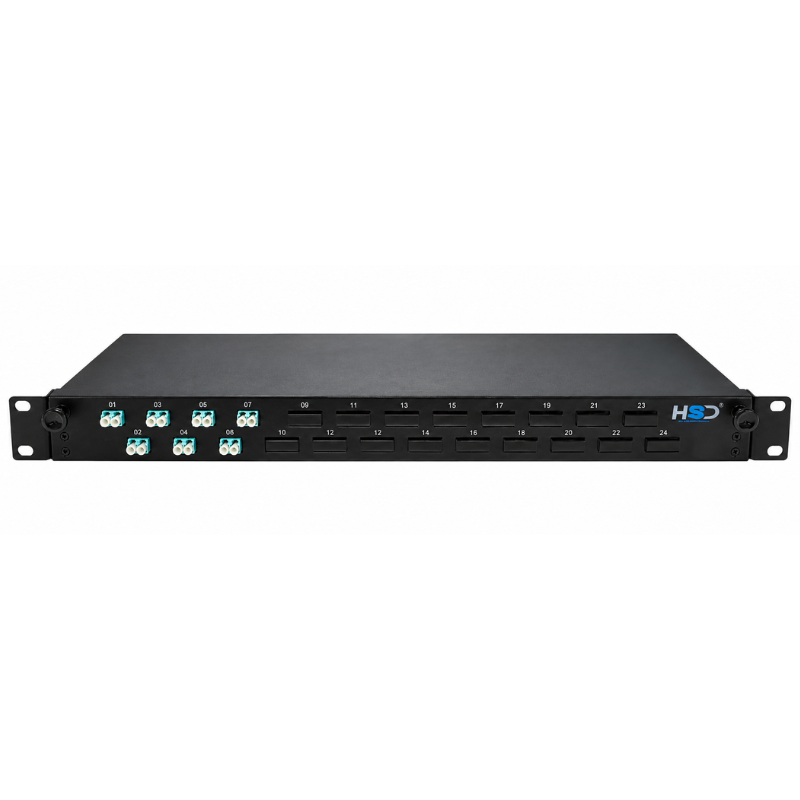

Sliding 19” Patch Panel 1U – 24 LCU DX Single-mode with 3 LCU DX Pass-Throughs

Sliding 19” Patch Panel 1U – 24 LCU DX Single-mode

This part-loaded 1U Sliding Patch Panel is ideal for single-mode fibre deployments that require flexibility and scalability. Supplied with 3 LCU DX pass-throughs, the panel enables 6 active LC/UPC connections and offers expansion up to 48 fibres through its 24 duplex port capacity. Designed with a sliding drawer for easy front access, it is well-suited for FTTH, telecom cabinets, and structured optical networks where reliable performance and future growth are essential.

Key Features:

• 3 LCU DX pass-throughs for 6 active single-mode LC/UPC connections

• 24 LCU DX port capacity – scalable to 48 fibres total

• Compatible with G.652.D or G.657A2 single-mode fibre

• Sliding tray design allows easy front access for patching and inspection

• 1U rack-mountable, fits standard 19” enclosures

• Supplied with cable management accessories, grommets, and fixings

• Ideal for access networks, cross-connects, and telecom distribution points

Technical Specification:

• Panel Type: Sliding 1U patch panel

• Fibre Type: Single-mode (9/125 µm, LC/UPC)

• Installed: 3 x LCU DX pass-throughs

• Capacity: 24 LCU DX (48 fibres total)

• Material: Powder-coated steel

• Mounting: 19” rack compatible

• Application: FTTH, PON, enterprise, telecom networks
