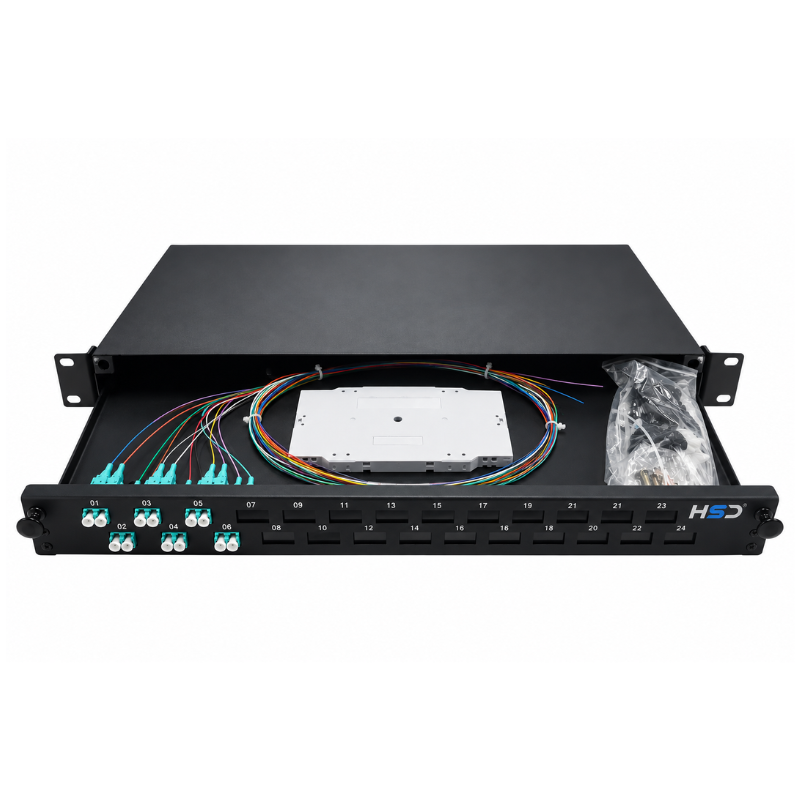

Sliding 19” Patch Panel 1U – 24 LC/UPC Duplex G.657A2 | Fully Loaded with 12 Adaptors & 24 Pigtails
This 1U Sliding Patch Panel is a fully loaded, high-density fibre solution designed for single-mode G.657A2 networks. Pre-installed with 12 LC/UPC Duplex adaptors and 24 LC/UPC G.657A2 pigtails, the panel delivers 48-fibre capacity in a compact, rack-mountable format. Ideal for FTTH, access networks, and telecom environments, the sliding tray provides simple front access for efficient splicing, patching and future expansion.
Key Features:
-
24 LC/UPC Duplex ports (48 fibres total capacity)
-
Pre-installed with 12 x LC/UPC Duplex adaptors (Blue)
-
Includes 24 x LC/UPC G.657A2 pigtails (9/125 µm)
-
Sliding drawer for front-access splicing and patching
-
1U height, suitable for any standard 19” rack enclosure
-
Bend-insensitive G.657A2 fibre for tight routing and minimal loss
-
Supplied with splice tray, fixing kit, grommets, and cable ties
-
Ideal for FTTH, central offices, street cabinets and backbone links
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: Single-mode G.657A2 (9/125 µm)
-
Adaptors: 12 x LC/UPC Duplex (24 ports)
-
Pigtails Included: 24 x LC/UPC G.657A2
-
Material: Powder-coated steel
-
Maximum Capacity: 24 LC Duplex adaptors / 48 fibres
-
Mounting: Standard 19” rack compatible
-
Application: FTTH, telecom, PON systems, data centre cross-connects
|
