19” Sliding Patch Panel 1U – 24 LCU DX G.657A2 with 24 LCU DX Fibres

19” Sliding Patch Panel 1U – 24 LCU DX G.657A2 | Equipped with 24 LCU DX Fibres

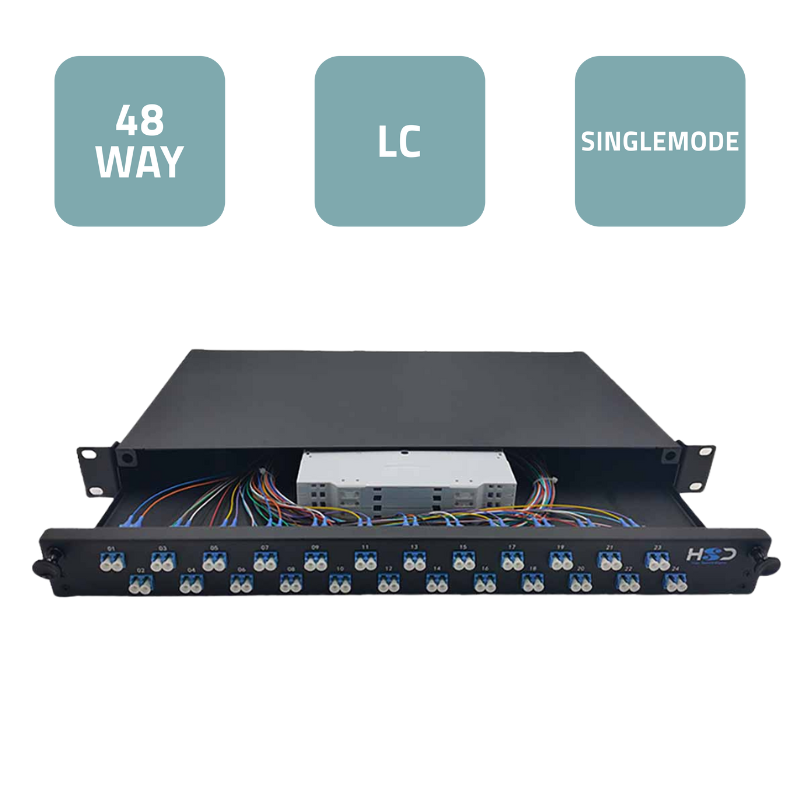

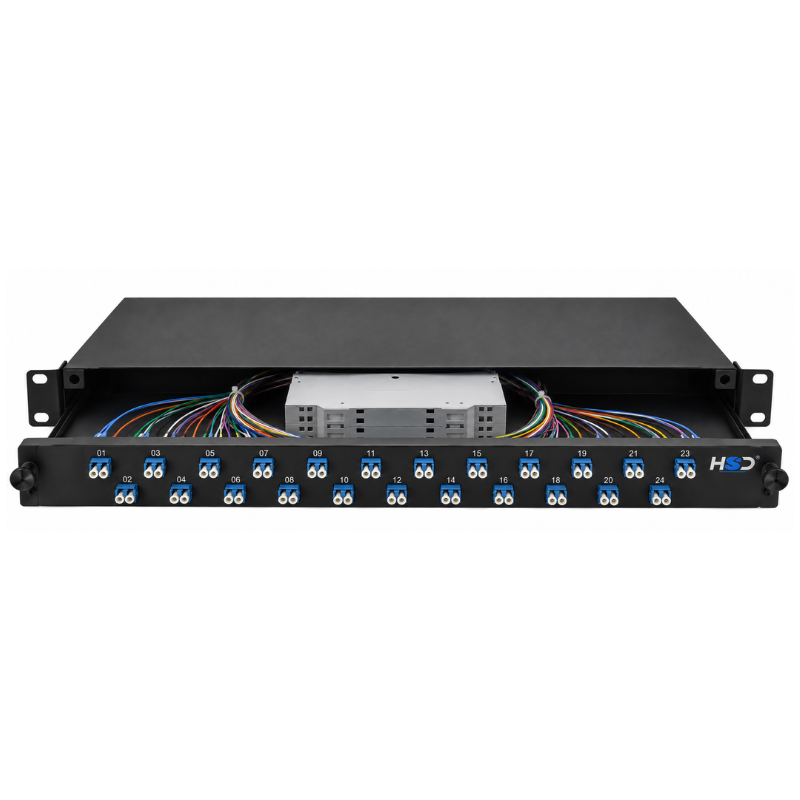

This high-performance 1U Sliding Patch Panel is designed for high-density single-mode applications. Pre-installed with 24 LCU DX fibres, it provides a 48-fibre capacity using LC/UPC duplex connectors and G.657A2 bend-insensitive fibre. The sliding tray allows full front access, making it easy to patch, splice, or expand. Ideal for FTTH deployments, central office cabling, and high-reliability optical distribution systems.

Key Features:

• 24 LCU DX (LC/UPC Duplex) fibre connections – 48 fibre total capacity

• Factory-equipped with G.657A2 bend-insensitive single-mode fibre

• Sliding tray design for easy front access and maintenance

• Compact 1U height, fits all standard 19” enclosures

• Pre-loaded and pre-terminated for rapid installation

• Supplied with splice tray, cable management, fixings, and cable ties

• Suitable for FTTH, backbone cabling, PON, and optical distribution networks

Technical Specification:

• Panel Type: Sliding 1U patch panel

• Fibre Type: Single-mode G.657A2 (9/125 µm)

• Connections: 24 x LCU DX (LC/UPC Duplex)

• Capacity: 48 fibres

• Material: Powder-coated steel

• Mounting: 19” rack compatible

• Application: FTTH, telecoms, cross-connects, access and core networks
