Sliding 19” Patch Panel 1U – 24 LCU DX OM3

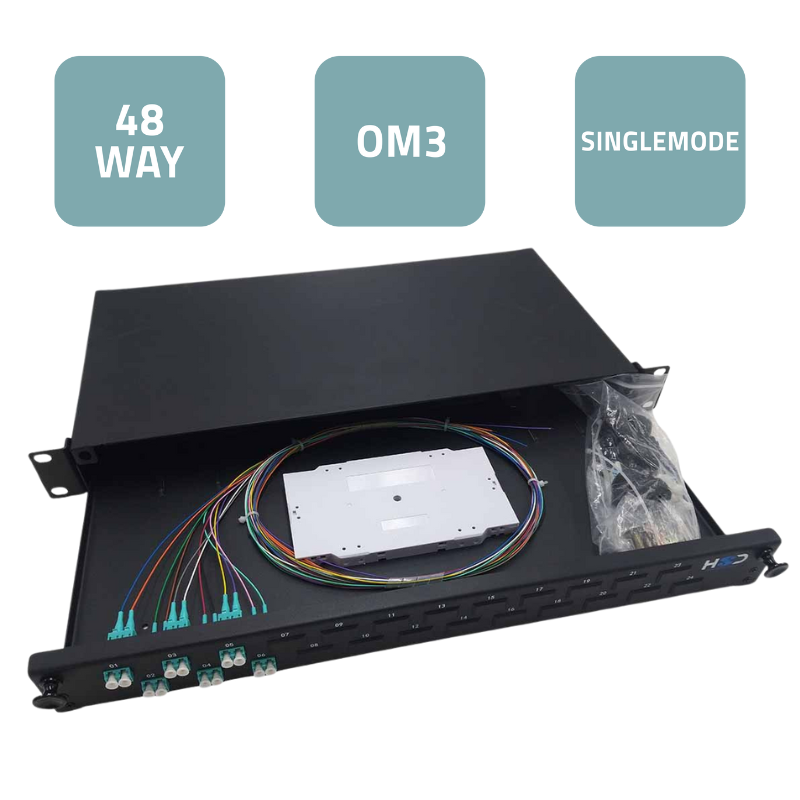

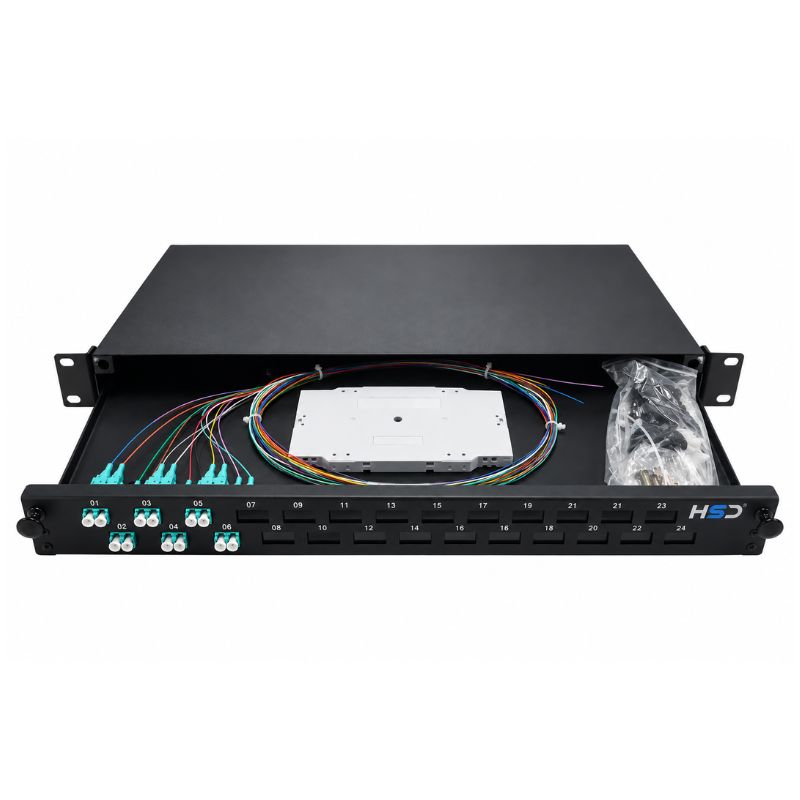

This part-loaded 1U Sliding Patch Panel is designed for high-speed multimode fibre networks and pre-installed with 6 LCU DX and corresponding OM3 LC/UPC pigtails. Offering 12 active fibre connections, the panel supports full expansion up to 48 fibres through its 24 LC/UPC Duplex capacity. The sliding drawer provides easy front access for installation, maintenance, and future upgrades—ideal for enterprise, campus, and data centre applications.
Key Features:
-
6 LCU DX installed – 12 active fibre connections
-
Compatible with OM3 multimode (50/125 µm) LC/UPC fibre
-
Supplied with OM3 LC/UPC pigtails (aqua, tight-buffered)
-
Sliding tray mechanism for easy access and improved patching workflow
-
1U rack height, compatible with all standard 19” enclosures
-
Includes splice tray, cable management accessories, and fixings
-
Expandable to 24 LCU DX ports / 48 fibres
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: OM3 multimode (50/125 µm)
-
Installed Ports: 6 x LCU DX
-
Pigtails Included: 12 x LC/UPC OM3 (tight-buffered)
-
Maximum Capacity: 24 LCU DX (48 fibres)
-
Material: Powder-coated steel
-
Mounting: Standard 19” rack compatible
-
Application: High-speed LANs, structured cabling, data centre patching
|
