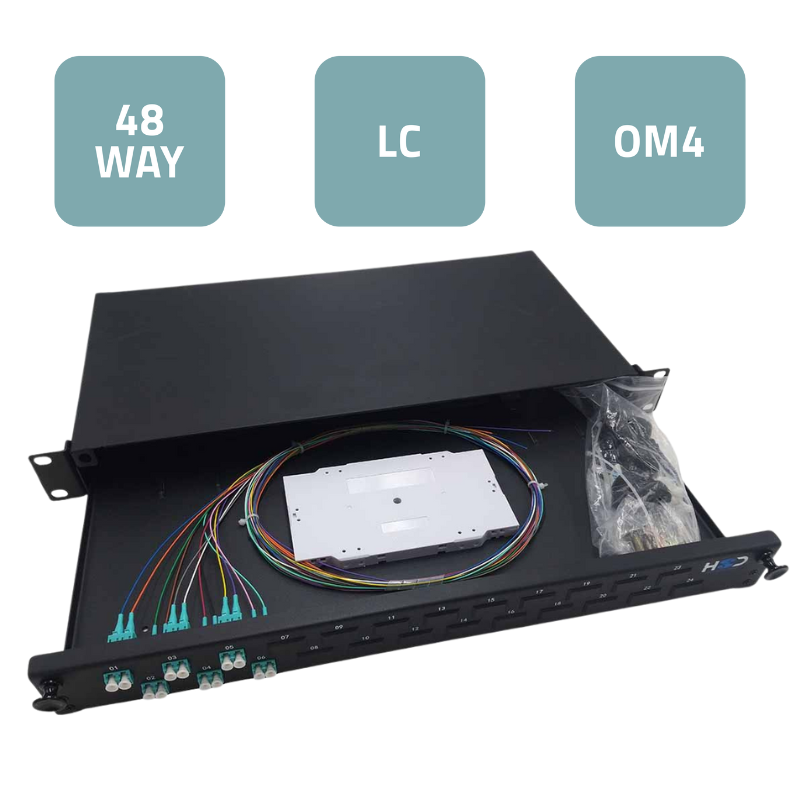

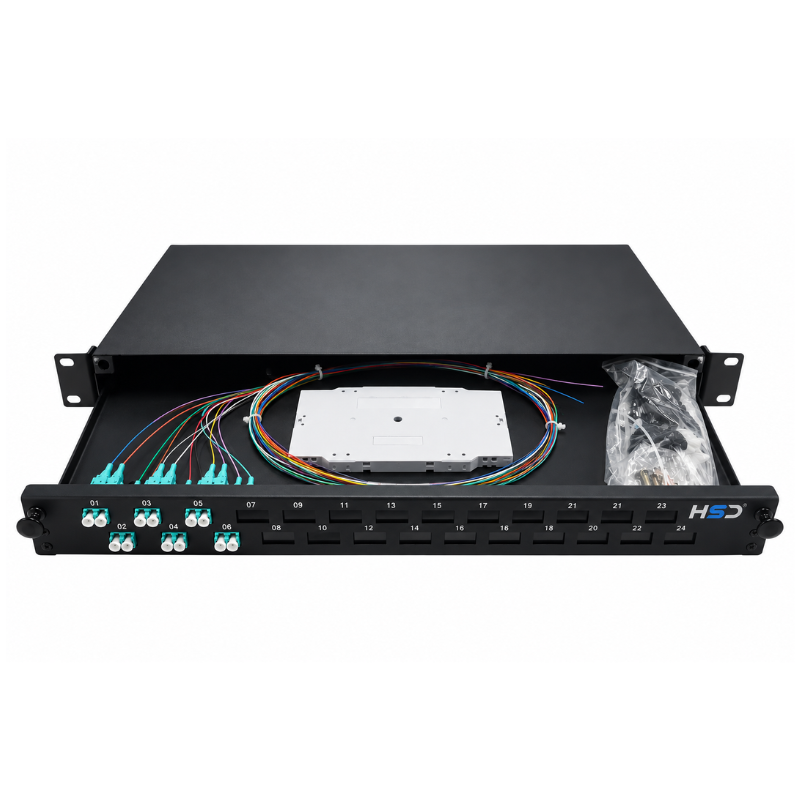

Sliding 19” Patch Panel 1U – 24 LCU DX OM4
This part-loaded 1U Sliding Patch Panel is designed for high-performance OM4 multimode fibre networks. Equipped with 3 LCU DX and 6 LC/UPC OM4 pigtails, it provides 6 active fibre connections with expansion potential up to 48 fibres through 24 LCU DX ports. The sliding tray allows full front access for patching and maintenance, making it ideal for scalable deployment in data centres, enterprise backbones, and structured cabling systems.
Key Features:
- 3 LCU DX installed – 6 active fibre connections
- Compatible with OM4 multimode (50/125 µm) LC/UPC connectors
- Supplied with 6 x LC/UPC OM4 pigtails (aqua, tight-buffered)
- Sliding drawer design for efficient front access and management
- 1U rack-mountable, suitable for all standard 19” enclosures
- Supplied with splice tray, fixings, grommets, and cable management accessories
- Scalable to 24 LCU DX positions / 48 fibres
Technical Specification:
- Panel Type: Sliding 1U patch panel
- Fibre Type: OM4 multimode (50/125 µm)
- Installed: 3 x LCU DX
- Pigtails: 6 x LC/UPC OM4 (tight-buffered)
- Max Capacity: 24 LCU DX (48 fibres)
- Material: Powder-coated steel
- Mounting: 19” rack compatible
- Application: Data centres, campus networks, structured cabling
|
