Sliding 19” Patch Panel 1U – 24 LCU DX Single-mode

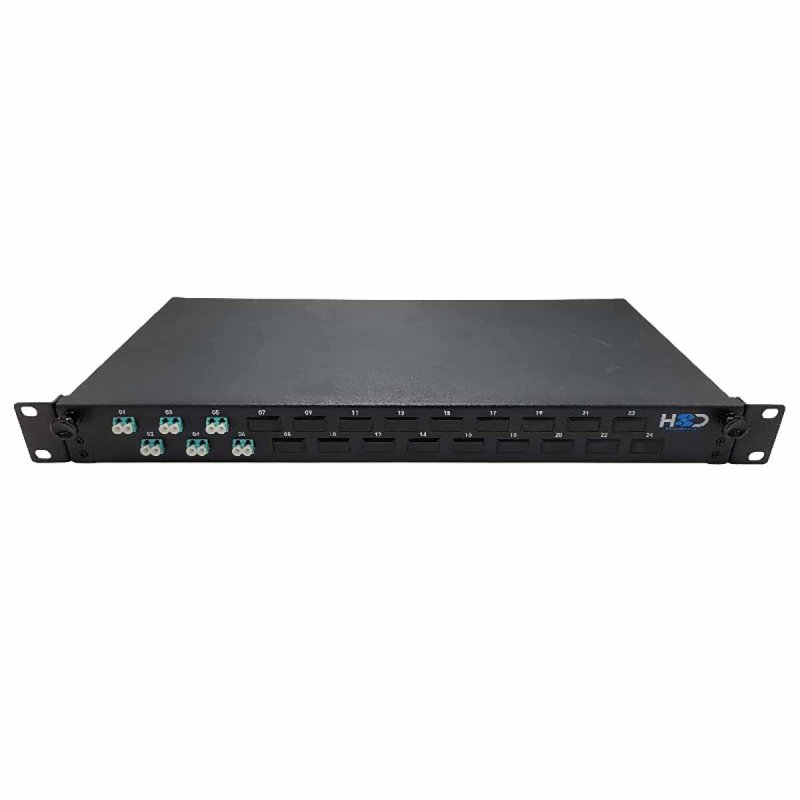

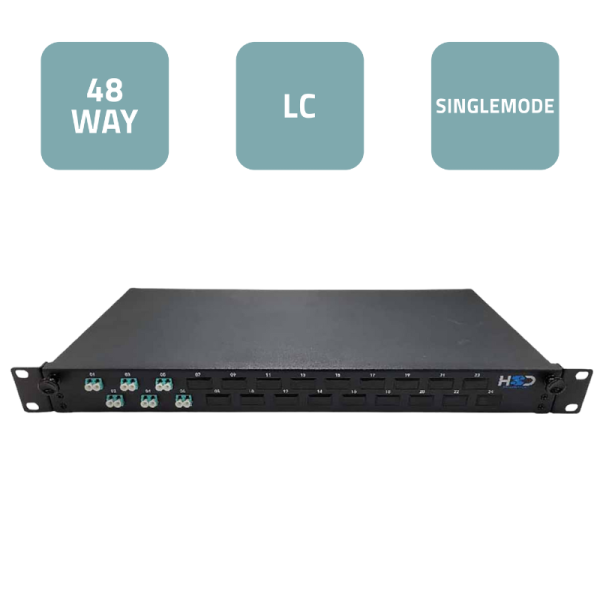

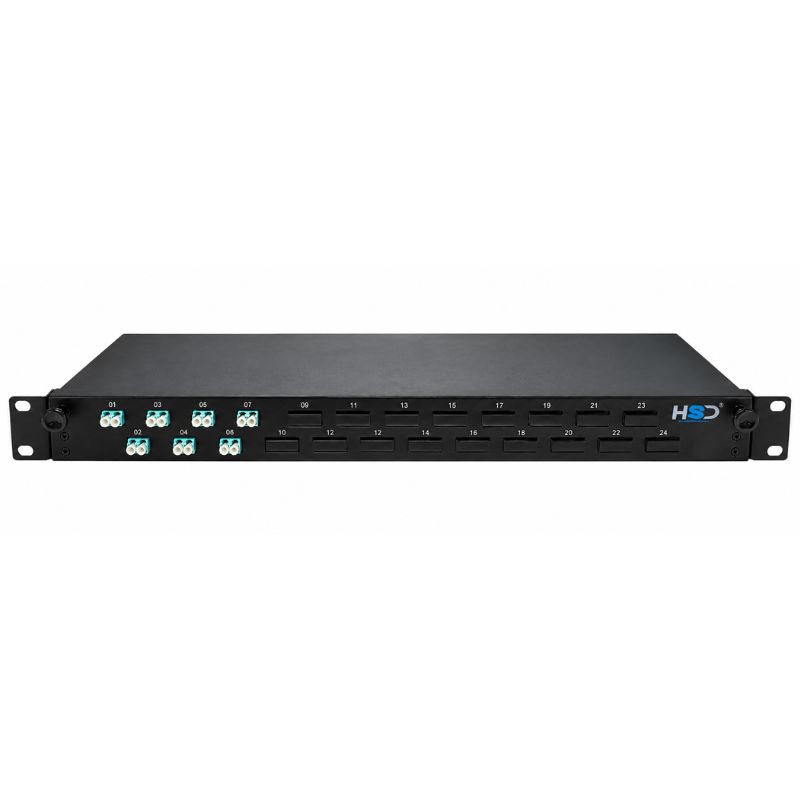

This part-loaded 1U Sliding Patch Panel is designed for efficient single-mode fibre management in high-density network environments. Pre-installed with 6 LCU DX trays, the panel supports 12 LC/UPC single-mode connections and offers scalability up to 48 fibres through 24 LCU DX ports. The sliding drawer ensures easy front access for installation, patching, and future expansion—ideal for FTTH, telecom, and backbone infrastructure.
Key Features:
-
6 LCU DX trays installed – 12 active single-mode LC/UPC connections
-
Expandable to 24 LCU DX ports (48 fibres total)
-
Compatible with G.652.D or G.657A2 single-mode fibre
-
Sliding drawer mechanism for easy access and maintenance
-
1U height, fits all standard 19” rack enclosures
-
Supplied with splice tray, grommets, cable ties, and fixings
-
Suitable for access networks, cross-connects, and structured cabling
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: Single-mode (9/125 µm, LC/UPC)
-
Installed: 6 x LCU DX trays
-
Capacity: 24 LCU DX ports / 48 fibres
-
Material: Powder-coated steel
-
Mounting: 19” rack compatible
-
Application: FTTH, telecom cabinets, optical distribution
|
