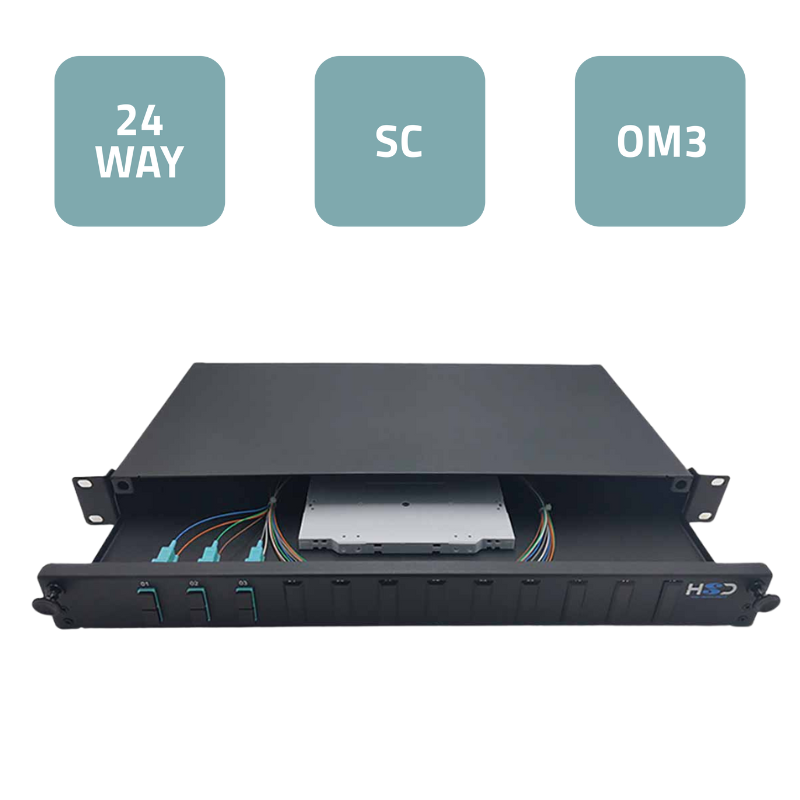

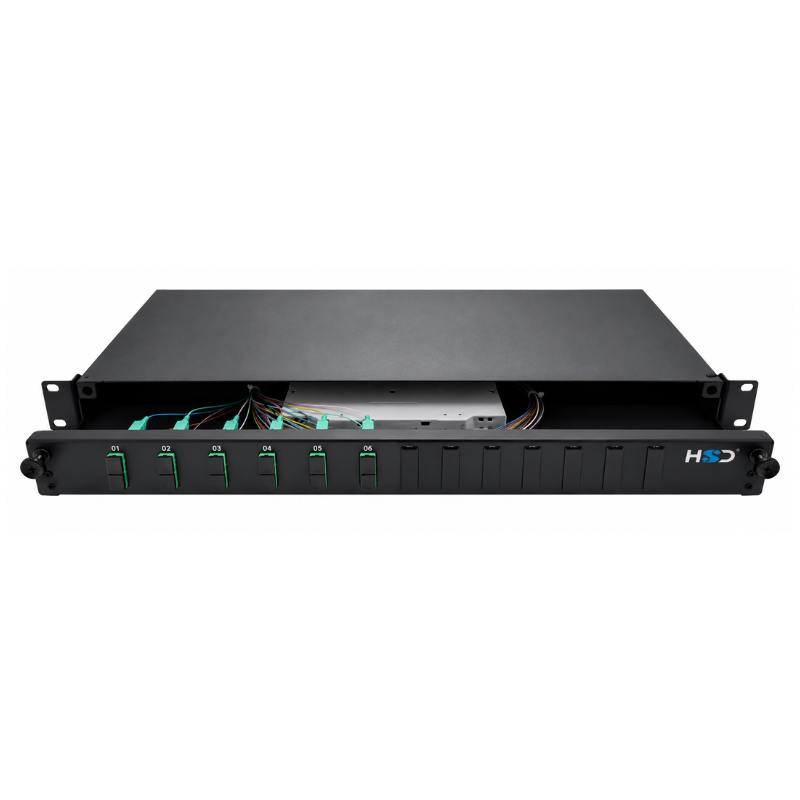

Sliding 19” Patch Panel 1U – 12 SC Duplex OM3
This 1U Sliding 19” Patch Panel is a compact and modular fibre management solution, equipped with 3 SC Duplex OM3 pass-through adapters and 6 OM3 multimode pigtails (50/125 µm). With a total capacity for 12 SC Duplex ports (24 fibres), it supports phased or partial deployment of high-speed fibre networks. The sliding tray enables quick access for splicing, patching, and maintenance, making it ideal for data centres, telecom cabinets, and structured cabling environments requiring OM3 multimode performance.
Key Features:
-
12 SC Duplex OM3 adapter slots (24-fibre capacity)
-
Pre-installed with 3 SC Duplex OM3 pass-through adapters
-
Includes 6 x OM3 pigtails (50/125 µm multimode)
-
Sliding drawer design for easy access and management
-
1U rack-mountable format, fits standard 19” enclosures
-
Supplied with splice tray, fixings, cable ties
-
Ideal for 10GbE and high-speed LAN/WAN networks
-
OM3 multimode fibre supports extended bandwidth and reduced signal loss
Technical Specification:
-
Panel Size: 1U (19” rack mount)
-
Adapter Type: SC Duplex OM3 (Aqua)
-
Installed Pass-throughs: 3 x SC Duplex (6 fibres)
-
Installed Pigtails: 6 x OM3 multimode (50/125 µm)
-
Fibre Compatibility: Multimode OM3
-
Material: Powder-coated steel
-
Tray Type: Sliding with internal splice area
-
Application: Data centres, enterprise networks, patching fields, FTTO
