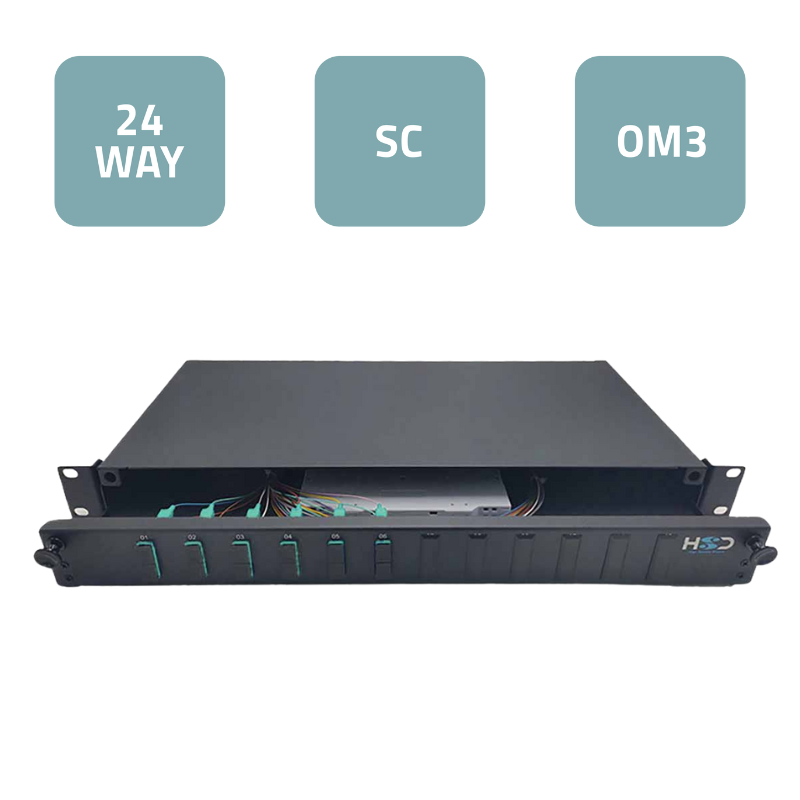

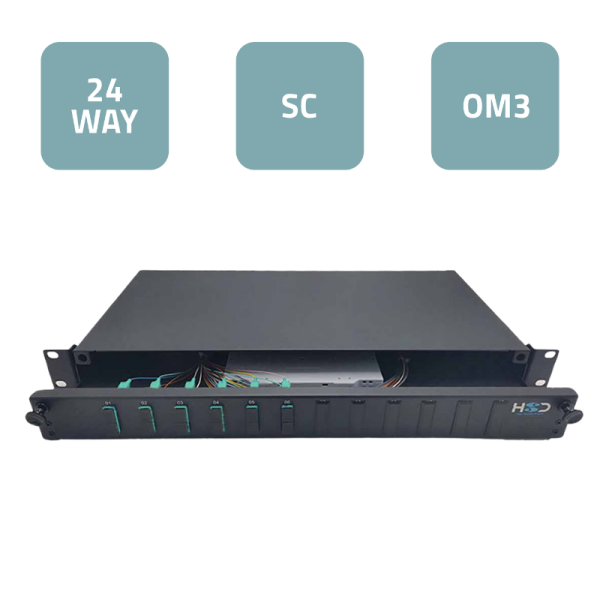

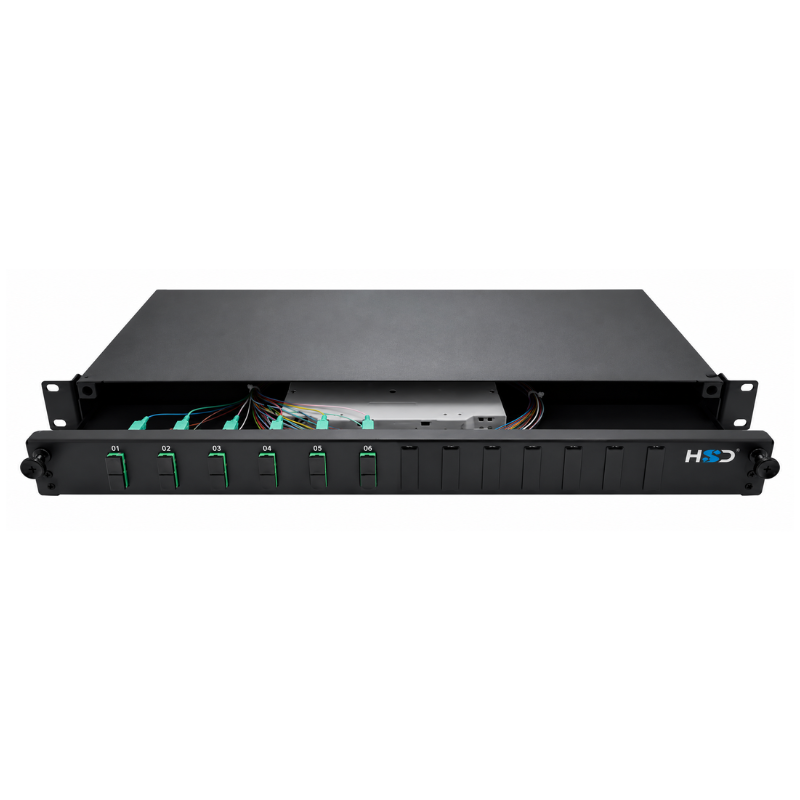

Sliding 19” Patch Panel 1U – 12 SC Duplex OM3
This modular 1U Sliding Patch Panel is a flexible, part-loaded solution for OM3 multimode fibre installations. Pre-installed with 6 SC Duplex OM3 adapters and 12 OM3 pigtails (50/125 µm), it supports 12-fibre capacity out of a potential 24. Ideal for scalable deployments, the sliding drawer design provides easy front access for splicing and patching, while maintaining a neat, professional finish. Suitable for data centres, telecom cabinets, and high-speed LAN/WAN networks requiring 10GbE support.
Key Features:
-
12 SC Duplex OM3 port capacity (24 fibres total)
-
Equipped with 6 x SC Duplex OM3 adapters (12 fibres active)
-
Includes 12 x OM3 pigtails (50/125 µm)
-
Sliding drawer design for simple installation and maintenance
-
1U height, fits standard 19” rack systems
-
Pre-terminated for quick deployment with splicing accessories included
-
Ideal for high-speed data networks and structured cabling environments
Technical Specification:
-
Panel Size: 1U (19” rack compatible)
-
Adapter Type: SC Duplex OM3 (Aqua)
-
Installed Adapters: 6 x SC Duplex (12 active fibres)
-
Pigtails Included: 12 x OM3 multimode (50/125 µm)
-
Fibre Type: Multimode OM3
-
Material: Powder-coated steel
-
Drawer Type: Sliding with internal splice tray
-
Application: 10GbE+ networks, data centres, telecom ODFs
