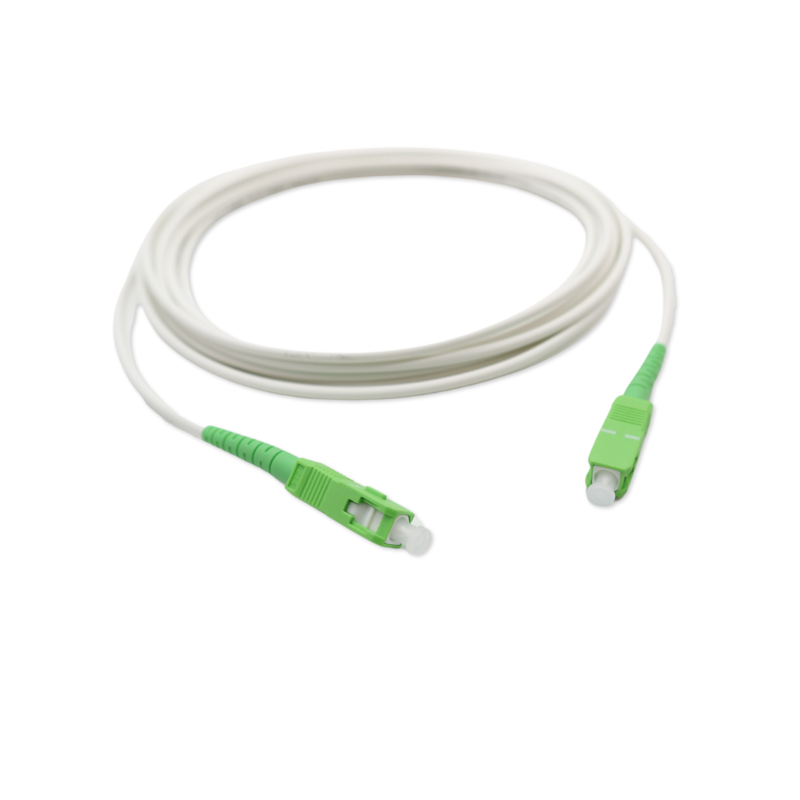

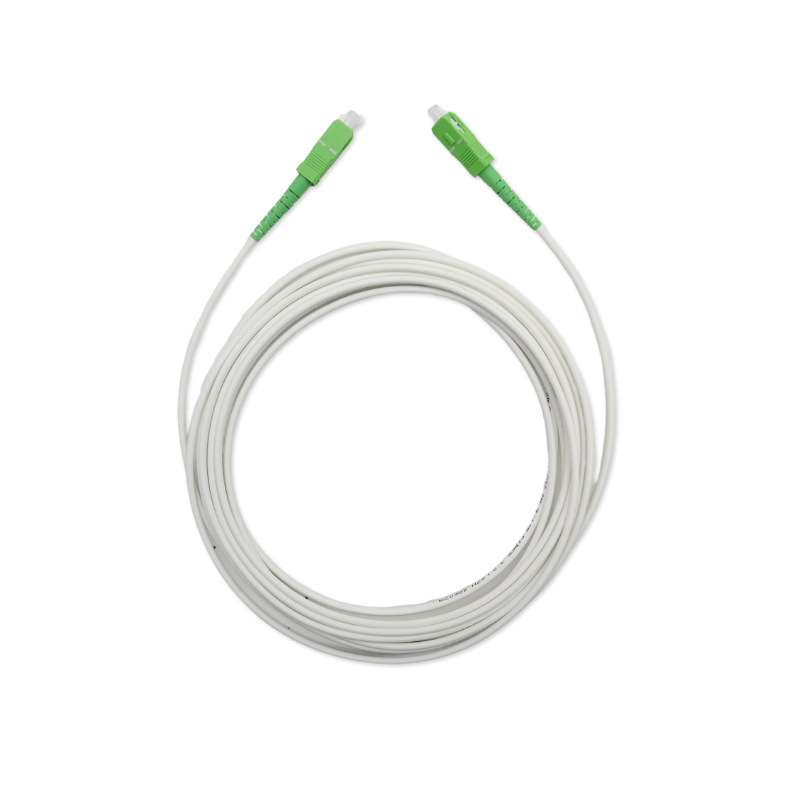

Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 2m
The Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 2m is a high-performance simplex fibre patchcord designed for reliable optical connections in FTTH networks, telecom racks and internal building installations.
Manufactured with G.657A2 bend-insensitive singlemode fibre, this patchcord supports tight bend radius routing with minimal signal loss, making it ideal for cabinets, patch panels, wall outlets and other confined installation spaces. The SC/APC connectors provide excellent return loss and stable signal transmission for dependable fibre performance.
The Ø3mm LSZH (Low Smoke Zero Halogen) outer sheath delivers enhanced mechanical protection while maintaining installation flexibility. Its white finish is especially suitable for residential and visible applications where a clean and discreet appearance is preferred.
Designed with precision zirconia ceramic ferrules, the patchcord offers accurate alignment, low insertion loss and consistent long-term performance across demanding optical networks.
Key Features:
-
SC/APC to SC/APC connectors for high-performance optical links
-
G.657A2 bend-insensitive singlemode fibre
-
Simplex (SX) configuration
-
2 metre length
-
Ø3.0mm LSZH sheath for durability and flexibility
-
White outer jacket for clean, aesthetic installations
-
Low insertion loss and high return loss performance
-
Zirconia ceramic ferrules for precision alignment
-
Fully tested to IEC standards
Technical Specifications:
-
Product Type: Fibre patchcord (simplex)
-
Connector Type: SC/APC – SC/APC
-
Fibre Type: Singlemode G.657A2
-
Configuration: Simplex (SX)
-
Length: 2 m
-
Cable Diameter: Ø3.0 mm
-
Sheath Material: LSZH (Low Smoke Zero Halogen)
-
Colour: White
-
Insertion Loss: ≤ 0.25 dB max, ≤ 0.12 dB typical (Grade B)
-
Return Loss: ≥ 60 dB (SC/APC)
-
Operating Temperature: -40°C to +75°C
-
Static Bend Radius: 15 mm
-
Crush Resistance: 1000 N
-
Compliance: IEC 61300, IEC 61754
Applications:
-
FTTH (Fibre to the Home) installations
-
Telecom cabinets and patch panels
-
Internal fibre connections
-
Optical outlets and short link connections
-
Data and broadband infrastructure
