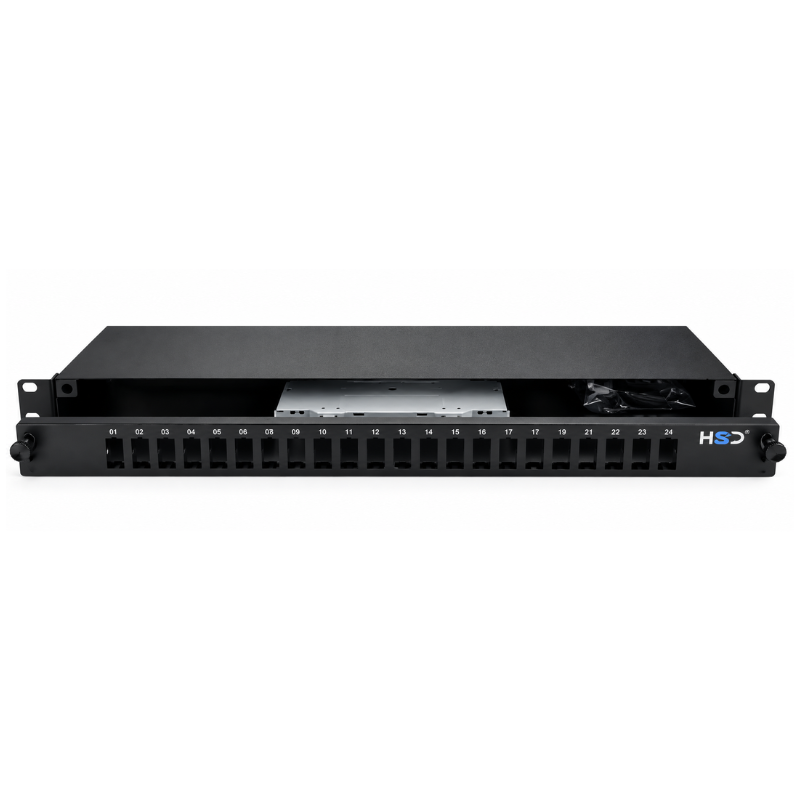

Sliding 19” Patch Panel 1U – 24 SC DX
This 1U Sliding Patch Panel is a high-quality, rack-mountable enclosure pre-configured with 24 SC duplex cut-outs and supplied unloaded, ready for custom configuration. Designed for both single-mode and multimode fibre applications, this empty panel offers a future-ready platform for up to 48 fibre connections using SC DX adaptors. The sliding tray allows for full front access, making it an ideal solution for telecom, enterprise, or data centre environments where flexibility and expandability are key.
Key Features:
- 24 SC DX cut-outs, supports up to 48 fibre connections
- Supplied unloaded for full customisation
- Compatible with SC/UPC or SC/APC duplex adaptors
- Sliding drawer design ensures easy front access for patching and upgrades
- 1U rack-mountable, fits all standard 19” enclosures
- Includes fixings, cable grommets, splice tray and cable management accessories
- Ideal for FTTH, telecom cabinets, data centres, and cross-connect racks
Technical Specification:
- Panel Type: Sliding 1U patch panel
- Port Openings: 24 x SC DX (Duplex)
- Fibre Capacity: Up to 48 fibres (when fully loaded)
- Material: Powder-coated steel
- Mounting: Standard 19” rack compatible
- Application: FTTH, PON, core networks, telecom, structured cabling
|
