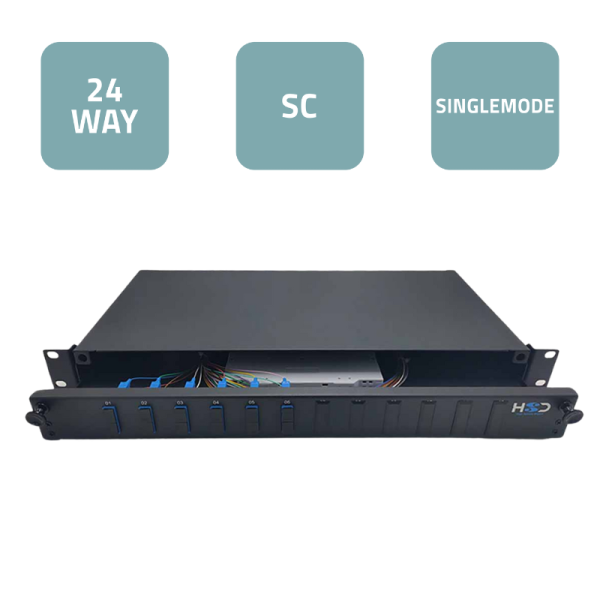

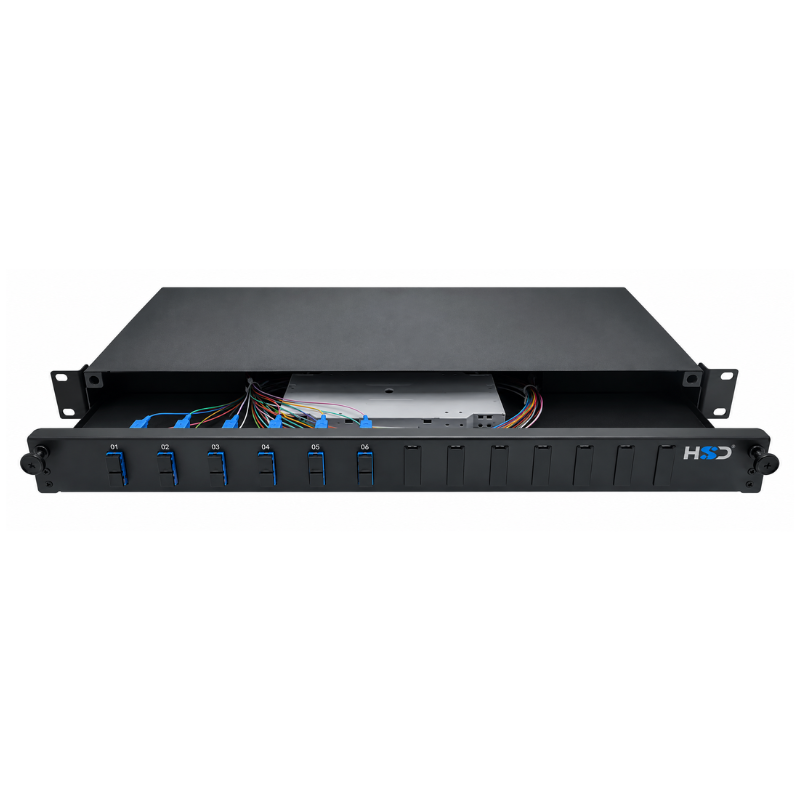

Sliding 19” Patch Panel 1U – 12 SC/UPC Duplex G.657A2
This part-loaded 1U Sliding Patch Panel provides a compact and scalable solution for single-mode fibre networks using traversing pigtails. Pre-installed with 6 SC/UPC Duplex adaptors and 12 SC/UPC G.657A2 traversing pigtails, it supports 12 active fibres within a 24-fibre capacity. The traversing pigtails are routed internally between the adaptors and splice tray, minimising the need for additional patch cords and offering a neat, efficient patching solution for FTTH and telecom infrastructures.
Key Features:
-
12 SC/UPC Duplex port capacity (24 fibres total)
-
Fitted with 6 SC/UPC Duplex adaptors (blue)
-
Includes 12 x SC/UPC G.657A2 traversing pigtails (9/125 µm)
-
Sliding drawer design for front access and ease of maintenance
-
1U height, compatible with all standard 19” racks
-
Supplied with splice tray, cable ties, fixings, and grommets
-
G.657A2 bend-insensitive fibre enables tight bends without signal loss
-
Ideal for FTTH, cross-connects, data centres and telecoms networks
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Fibre Type: Single-mode G.657A2 (9/125 µm, bend-insensitive)
-
Adaptors: 6 x SC/UPC Duplex
-
Pigtails: 12 x SC/UPC traversing (internally routed)
-
Material: Powder-coated steel
-
Max Capacity: 12 SC Duplex adaptors / 24 fibres
-
Mounting: 19” rack compatible
-
Application: FTTH, PON, telecom distribution, ODFs
|
