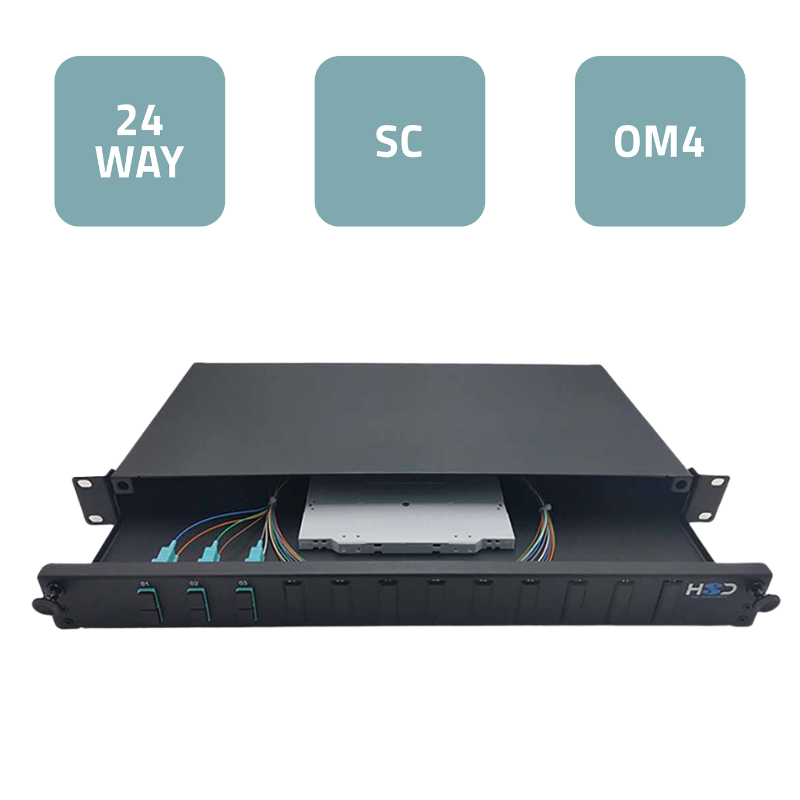

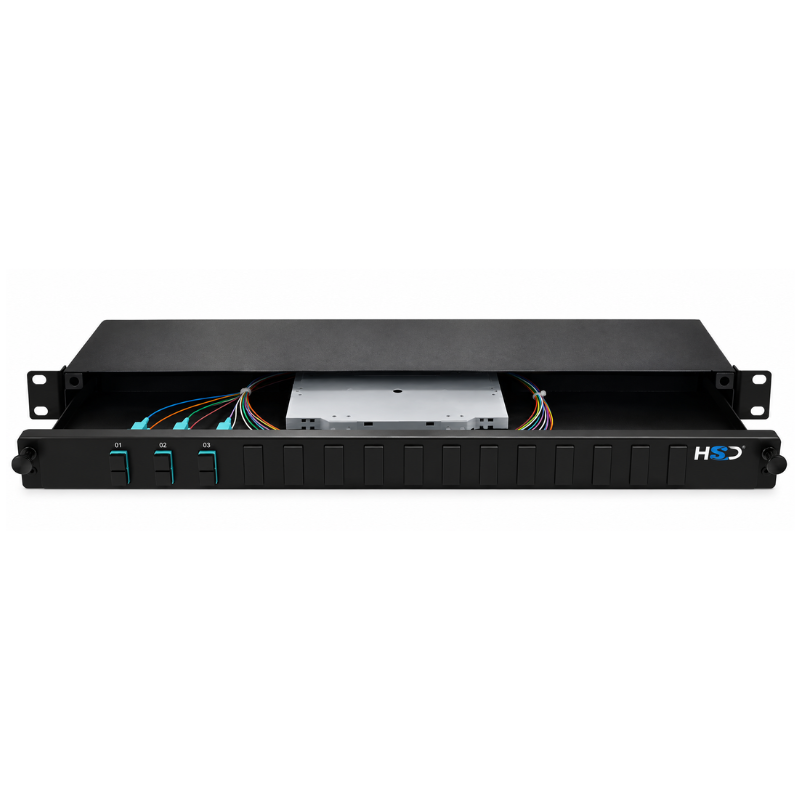

Sliding 19” Patch Panel 1U – 12 SC Duplex OM4
This 1U Sliding Patch Panel offers a flexible, part-loaded fibre solution for OM4 multimode applications. Pre-equipped with 3 SC Duplex OM4 adaptors and 6 OM4 50/125 µm pigtails, it provides capacity for up to 24 fibres and allows for phased deployment. The sliding tray design offers front access for fast installation, patching, and future expansion. Ideal for data centres, LAN backbones, and structured cabling where scalability, performance, and space-saving are key.
Key Features:
-
12 SC Duplex OM4 port capacity (24 fibres total)
-
Pre-installed with 3 x SC Duplex OM4 adaptors (6 fibres active)
-
Includes 6 x OM4 50/125 µm multimode pigtails
-
Sliding drawer for easy access and management
-
1U rack-mountable, suitable for all standard 19” enclosures
-
Supplied with splice tray, cable ties, and fixings
-
OM4 fibre supports 10/40/100GbE high-bandwidth applications
-
Colour-coded aqua adaptors and pigtails for multimode identification
Technical Specification:
-
Panel Type: Sliding fibre patch panel
-
Size: 1U (19” rack-mountable)
-
Fibre Type: OM4 multimode (50/125 µm)
-
Installed Adaptors: 3 x SC Duplex OM4
-
Pigtails Included: 6 x OM4 (pre-terminated)
-
Maximum Capacity: 12 SC Duplex (24 fibres)
-
Material: Powder-coated steel
-
Colour Coding: Aqua (OM4)
-
Application: Scalable deployments in data centres, telecoms, and enterprise networks
|
