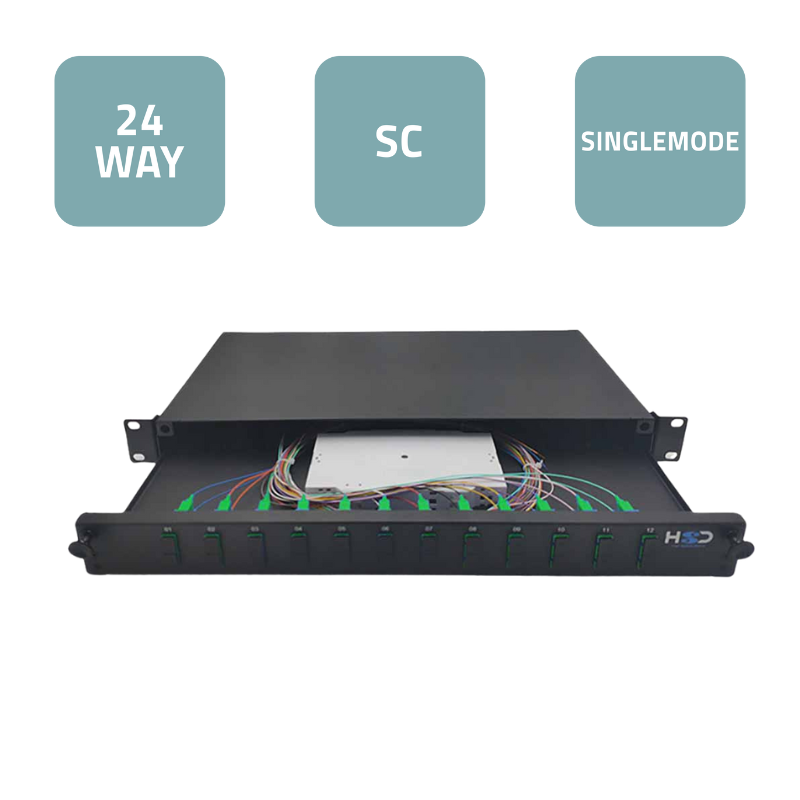

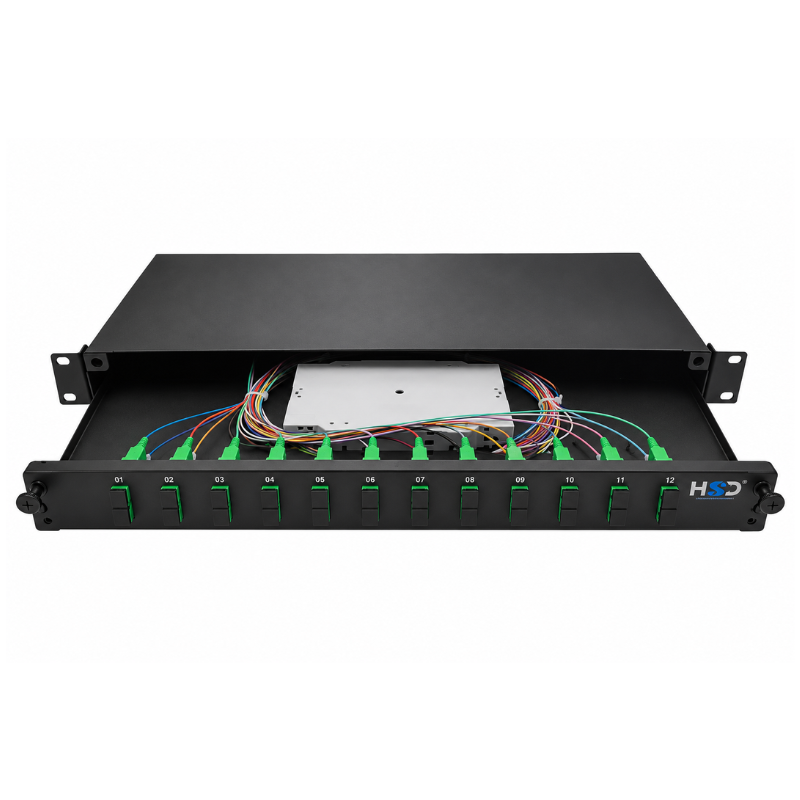

Sliding 19” Patch Panel 1U – 12 SC/APC Duplex G.657A2
This 1U Sliding 19” Patch Panel is a ready-to-install, high-density solution for fibre management in FTTH and telecom environments. Pre-loaded with 12 SC/APC Duplex couplers and 24 G.657A2 single-mode pigtails, it delivers 24-fibre capacity in a compact and accessible format. The sliding drawer allows front access for simplified patching and splicing, supporting quick deployment and efficient cable routing in 19” enclosures or street cabinets.
Key Features:
-
12 SC/APC Duplex couplers (24 fibre capacity)
-
24 x G.657A2 single-mode pigtails (2m, 9/125 µm) included
-
Sliding drawer for easy installation, patching and maintenance
-
1U height, compatible with all standard 19” rack systems
-
Supplied with splice tray, fixing hardware, cable ties and protective grommets
-
G.657A2 bend-insensitive fibre enables tight routing without signal loss
-
Ideal for FTTH networks, ODFs, and optical backbone infrastructure
Technical Specification:
-
Panel Type: Sliding 1U fibre patch panel
-
Adaptor Type: SC/APC Duplex (Green)
-
Fibre Type: G.657A2 single-mode (bend-insensitive)
-
Pigtails Included: 24 x SC/APC, 9/125 µm
-
Maximum Fibre Capacity: 24 fibres
-
Mounting: 19” rack-mountable
-
Material: Powder-coated steel with internal splice tray
-
Application: FTTH, telecoms, exchange racks, outdoor cabinets
|
