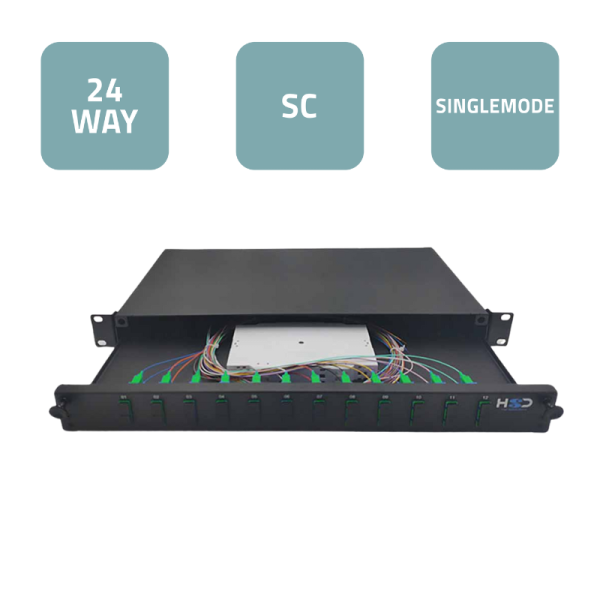

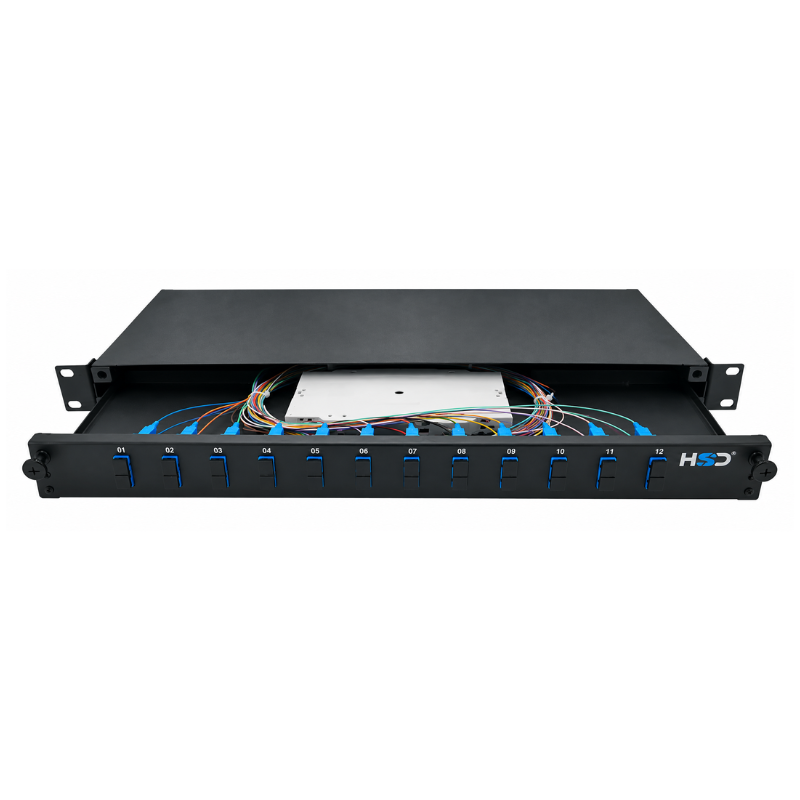

Sliding 19” Patch Panel 1U – 12 SC/UPC Duplex G.657A2
This fully loaded 1U Sliding Patch Panel is designed for high-performance single-mode fibre installations, pre-equipped with 12 SC/UPC Duplex pass-through adaptors and 24 SC/UPC G.657A2 pigtails. Supporting 24-fibre capacity, it provides a complete plug-and-play solution for rapid deployment in FTTH, telecom, or enterprise environments. The sliding tray offers easy access for front-side patching and internal cable management, making maintenance and future upgrades simple and efficient.
Key Features:
-
12 SC/UPC Duplex adaptor slots (24-fibre capacity)
-
Fully equipped with 12 SC/UPC Duplex pass-through adaptors
-
Includes 24 x SC/UPC pigtails (G.657A2, 9/125 µm)
-
Sliding drawer for easy patching, splicing, and maintenance
-
1U height, fits all standard 19” telecom and data racks
-
Supplied with splice tray, cable ties, mounting fixings, and grommets
-
G.657A2 bend-insensitive fibre for tight installation routing
-
Ideal for FTTH, PON, backbone, and central office applications
Technical Specification:
-
Panel Size: 1U (19” rack-mountable)
-
Fibre Type: G.657A2 single-mode (9/125 µm, bend-insensitive)
-
Adaptors Installed: 12 x SC/UPC Duplex (Blue)
-
Pigtails Included: 24 x SC/UPC G.657A2
-
Material: Powder-coated steel
-
Maximum Capacity: 24 fibres (12 SC Duplex ports)
-
Application: High-density fibre patching in FTTH, telecom, and enterprise networks
|
