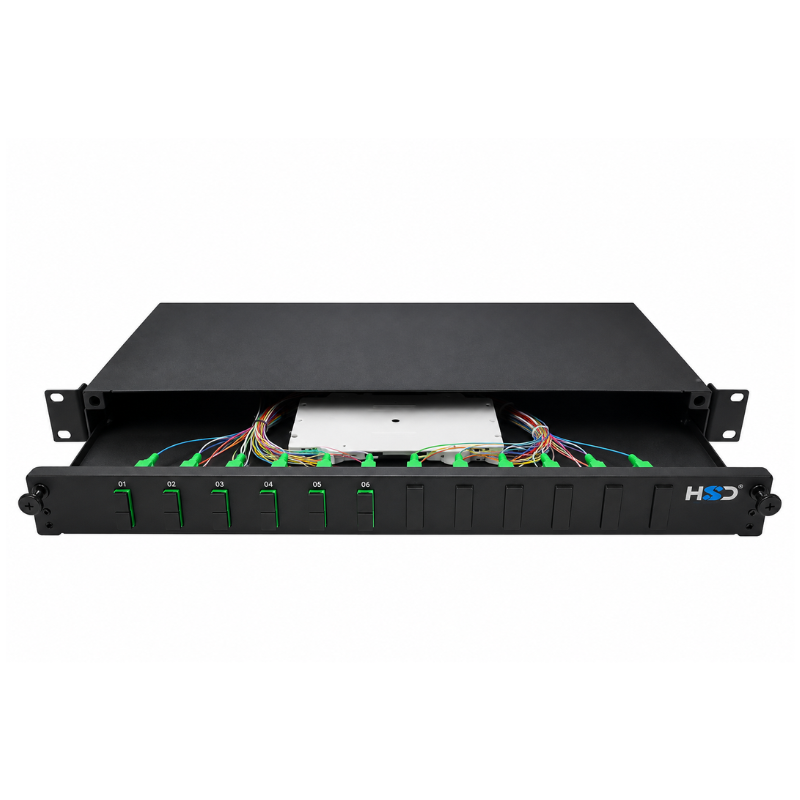

Sliding 19” Patch Panel 1U – 12 SC/APC Duplex G.657A2
This 1U Sliding 19” Patch Panel offers a flexible, part-loaded fibre management solution, pre-equipped with 3 SC/APC Duplex cassettes and 6 G.657A2 single-mode pigtails. Designed to support phased rollouts or low-fibre-count installations, this patch panel provides a 24-fibre capacity (12 SC Duplex ports) and is ideal for FTTH, access networks, and central office deployments. The sliding drawer design allows easy access for patching, splicing, and future expansion.
Key Features:
-
12 SC/APC Duplex port capacity (24 fibres total)
-
Pre-installed with 3 SC/APC Duplex cassettes (6 active fibres)
-
Includes 6 x G.657A2 SC/APC pigtails (9/125 µm)
-
Sliding drawer design for simplified installation and maintenance
-
1U rack-mountable, fits all standard 19” enclosures
-
Supplied with splice tray, cable ties, mounting accessories and grommets
-
G.657A2 bend-insensitive fibre enables tight routing without compromising performance
-
Suitable for FTTH, PON, street cabinets, and telecom networks
Technical Specification:
-
Panel Type: Sliding fibre patch panel
-
Size: 1U (19” rack)
-
Adaptor Type: SC/APC Duplex (Green)
-
Cassettes Installed: 3 x SC/APC Duplex (6 fibres active)
-
Pigtails Included: 6 x SC/APC G.657A2 (9/125 µm)
-
Maximum Capacity: 12 SC Duplex ports / 24 fibres
-
Material: Powder-coated steel
-
Application: FTTH, access networks, ODFs, telecom exchanges
|
