Telenco Pivoting Patch Panel – 19" 1U – 48FO – SC/UPC – G.657A2 – R/L

Telenco Pivoting Patch Panel – 19" 1U – 48FO – SC/UPC – G.657A2 – R/L

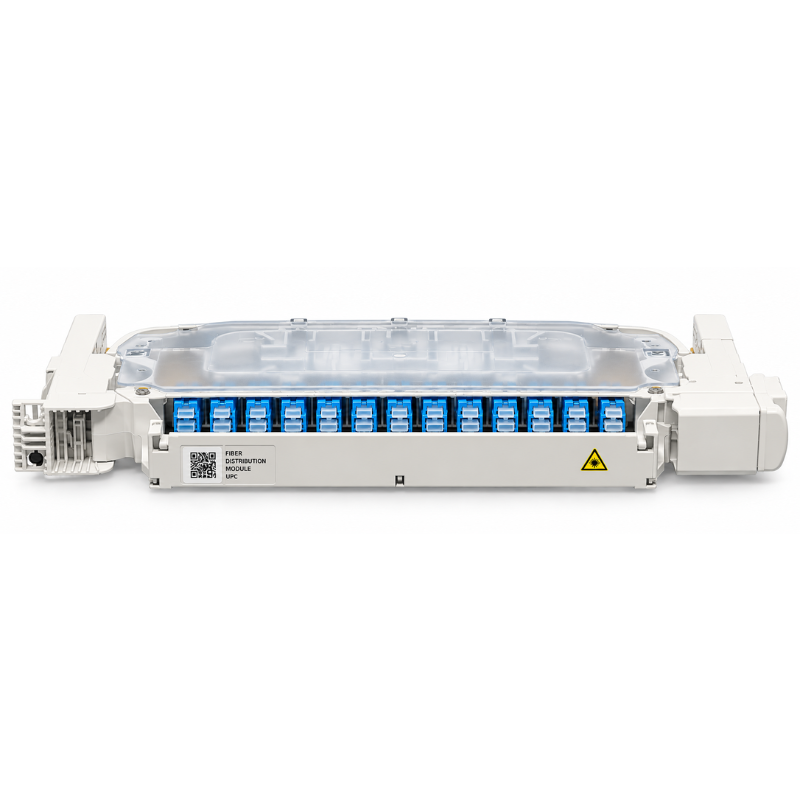

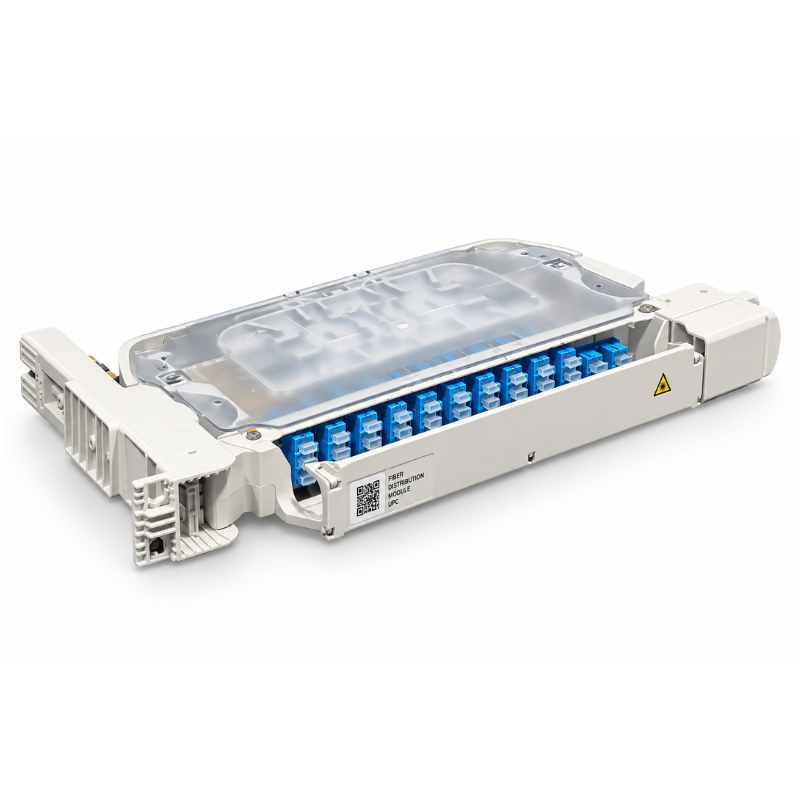

The Telenco 48FO Pivoting Patch Panel is a compact, high-density fibre management solution designed for FTTH, FTTx and optical access networks. Pre-terminated with 48 SC/UPC connectors and G.657A2 single-mode fibre, the panel provides a factory-assembled solution that helps reduce installation time while delivering consistent optical performance.

Its pivoting tray design can be configured for either right- or left-hand opening, providing convenient front access to fibre connections during installation, maintenance and network expansion. This is particularly beneficial where rear access is restricted or the panel is installed within compact telecommunications cabinets.

The 1U, 19-inch rack-mount format combines high fibre density with a shallow installation footprint. A recessed front face helps protect connected patchcords and supports efficient fibre routing, making the panel suitable for standard racks, street cabinets and shallow-depth enclosures.

The panel uses bend-insensitive G.657A2 fibre, supporting tighter routing while maintaining optical performance. Supplied with installation accessories including splice sleeves, cage nuts, screws and cable ties, the panel provides a practical, installation-ready solution for professional fibre networks.

Key Features:

• High-density 48-fibre pivoting patch panel

• Pre-terminated with 48 x SC/UPC connectors

• G.657A2 bend-insensitive single-mode fibre

• Pivoting tray for convenient front access

• Configurable right- or left-hand opening

• Compact 1U rack height

• Compatible with standard 19" racks

• Suitable for street cabinets and shallow-depth enclosures

• Recessed front panel helps protect connected patchcords

• Designed for efficient fibre routing and management

• 2.5m pigtail length

• Factory-assembled and tested

• Supplied with splice sleeves, cage nuts, screws and cable ties

• Manufactured in Europe

• Compliant with IEC 61300 optical and mechanical requirements

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 48FO

• Connector Type: SC/UPC

• Number of Connectors: 48

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥50dB

• Ferrule Material: Zirconia Ceramic

• Panel Material: Fibre-Reinforced Composite

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Fibre distribution networks

• Telecommunications exchanges

• 19" telecommunications racks

• Street cabinets

• Shallow-depth fibre enclosures

• High-density fibre termination

• Fibre network maintenance and expansion
