Telenco Pivoting Patch Panel – 19" 1U – 48FO – LC/APC – G.657A2 – R/L

Telenco Pivoting Patch Panel – 19" 1U – 48FO – LC/APC – G.657A2 – R/L

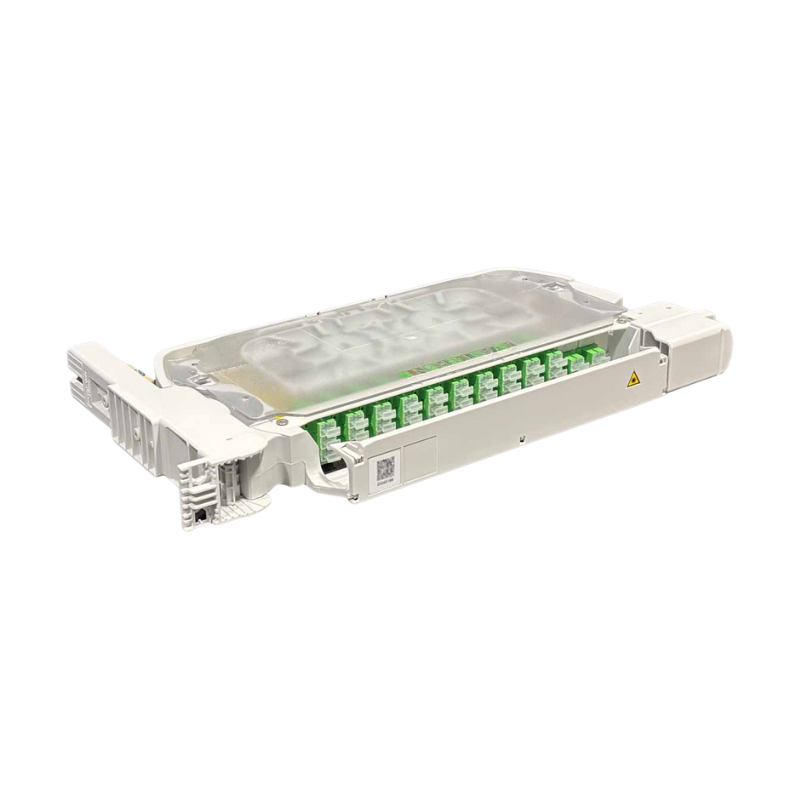

The Telenco 48FO LC/APC Pivoting Patch Panel is a compact, high-density fibre management solution designed for FTTH, FTTx and optical access networks. Factory pre-assembled with 48 LC/APC connectors and G.657A2 single-mode fibre, the panel provides an installation-ready solution that helps reduce on-site preparation while delivering consistent optical performance.

Its pivoting tray design can be configured for either right- or left-hand access, providing convenient front access during installation, maintenance and network expansion. This configuration is particularly beneficial in telecommunications racks and street cabinets where space or rear access may be restricted.

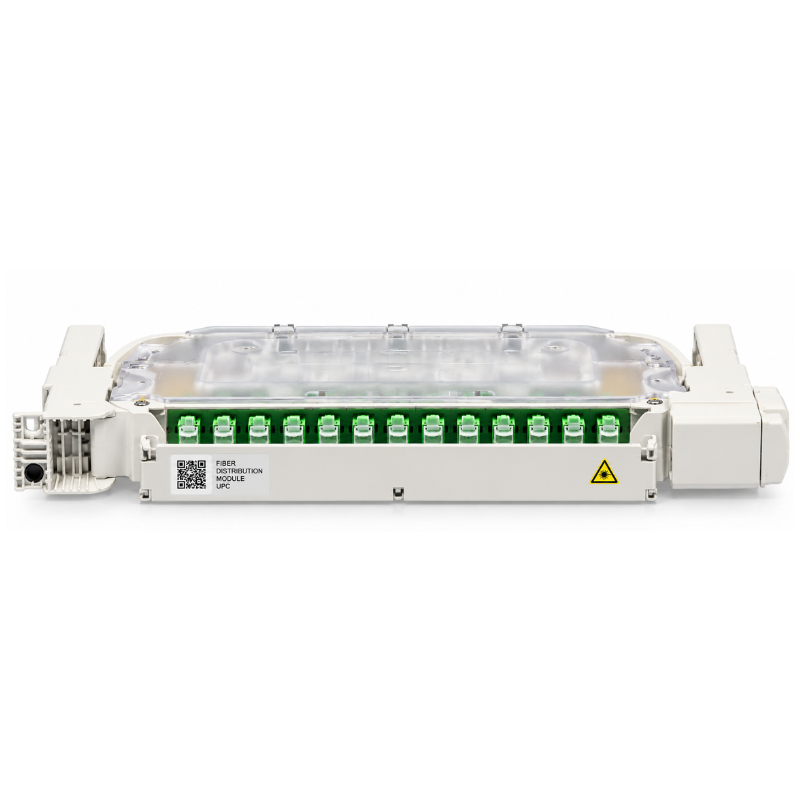

The compact 19" 1U format provides high fibre density while minimising rack space requirements. A recessed front panel provides integrated protection for connected patchcords and supports controlled cable routing, helping maintain a neat and organised fibre installation.

The panel incorporates bend-insensitive G.657A2 fibre, supporting tighter routing while reducing the risk of performance degradation caused by bending. Factory-tested and manufactured in Europe, the panel is supplied with splice sleeves, screws, cage nuts and cable ties for professional fibre network installation.

Key Features:

• Pre-assembled with 48 x LC/APC connectors

• 48-fibre single-mode configuration

• G.657A2 bend-insensitive fibre

• Pivoting tray for convenient front access

• Configurable right- or left-hand opening

• Compact 1U rack height

• Compatible with standard 19" racks

• Suitable for telecommunications street cabinets

• Recessed front panel with integrated cord protection

• Supports efficient fibre routing and management

• 2.5m pigtail length

• Factory-assembled and tested

• Supplied with splice sleeves

• Screws, cage nuts and cable ties included

• Manufactured in Europe

• Compliant with IEC 61300 standards

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 48FO

• Connector Type: LC/APC

• Number of Connectors: 48

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥60dB

• Ferrule Material: Zirconia Ceramic

• Panel Material: Fibre-Reinforced Composite

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Fibre distribution networks

• Telecommunications infrastructure

• 19" telecommunications racks

• Street cabinets

• Shallow-depth enclosures

• High-density fibre termination

• Fibre network maintenance and expansion
