Telenco Pivoting Patch Panel – 19" 1U – 24FO – LC/APC – G.657A2 – R/L

Telenco Pivoting Patch Panel – 19" 1U – 24FO – LC/APC – G.657A2 – R/L

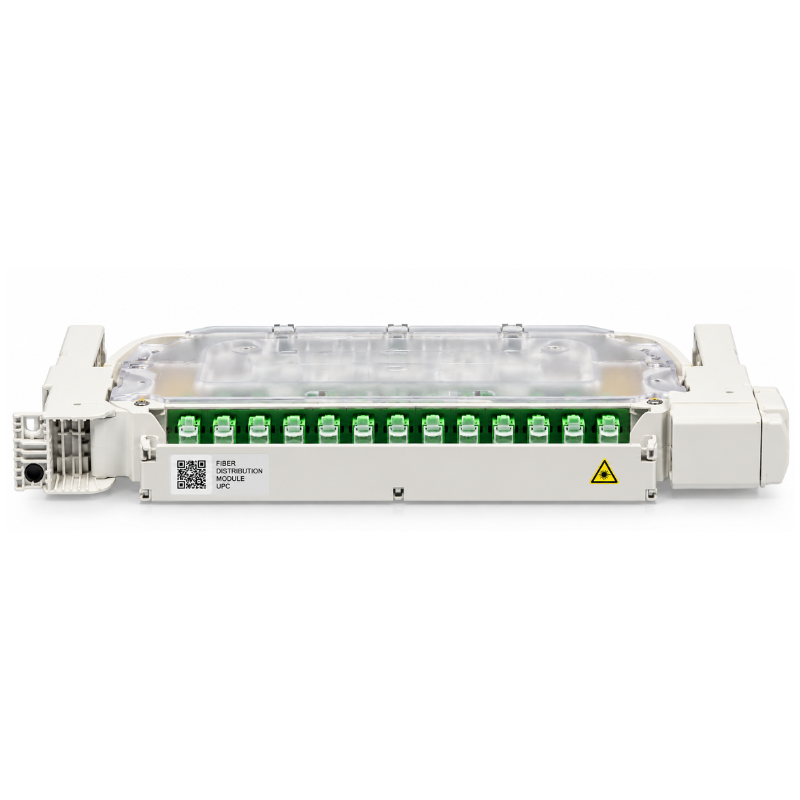

The Telenco 24FO LC/APC Pivoting Patch Panel is a compact, factory-assembled fibre management solution designed for FTTH, FTTx and optical access networks. Pre-terminated with 24 LC/APC connectors and G.657A2 single-mode pigtails, the panel provides an installation-ready solution that helps reduce on-site preparation while delivering reliable optical connectivity.

Its pivoting tray design can be configured for either right- or left-hand opening, providing convenient front access for installation, maintenance and network expansion. This makes the panel particularly suitable for installations where rack space is limited or rear access is restricted.

The compact 19" 1U format is compatible with standard telecommunications racks and shallow-depth cabinets. A recessed front panel provides additional protection for connected patchcords while supporting neat and controlled fibre routing.

Using bend-insensitive G.657A2 fibre, the panel is well suited to installations requiring tight routing within cabinets and racks. Manufactured in Europe at Telenco's certified production centre, the panel is supplied with splice sleeves, cage nuts, screws and cable ties for professional installation.

Key Features:

• Factory-assembled with 24 x LC/APC connectors

• G.657A2 bend-insensitive single-mode pigtails

• 24-fibre configuration

• Pivoting tray for convenient front access

• Configurable right- or left-hand opening

• Compact 1U rack height

• Compatible with standard 19" racks

• Suitable for shallow-depth cabinets

• Recessed front panel with cord protection

• Supports organised fibre routing and management

• 2.5m pigtail length

• Supplied with splice sleeves

• Cage nuts, screws and cable ties included

• Manufactured in Europe

• Compliant with IEC 61300 standards

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 24FO

• Connector Type: LC/APC

• Number of Connectors: 24

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥60dB (APC)

• Panel Material: Fibre-Reinforced Composite

• Ferrule Material: Zirconia Ceramic

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Fibre distribution networks

• Telecommunications infrastructure

• 19" equipment racks

• Street and telecommunications cabinets

• Shallow-depth enclosures

• Fibre termination and distribution

• Fibre network maintenance and expansion
