Telenco Pivoting Patch Panel – 19" 1U – 48FO – SC/APC – G.657A2 – R/L

Telenco Pivoting Patch Panel – 19" 1U – 48FO – SC/APC – G.657A2 – R/L

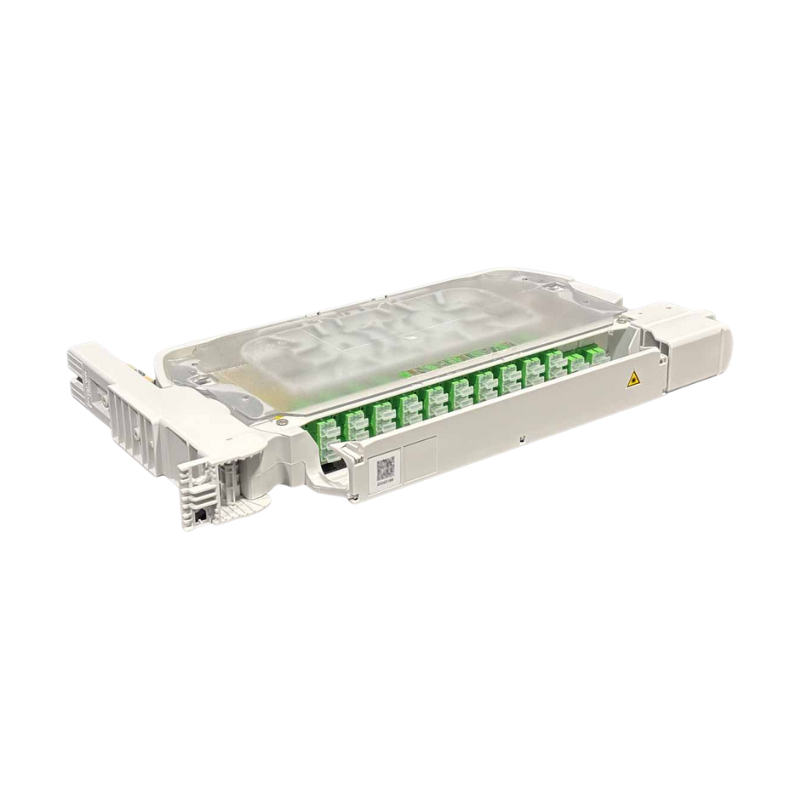

The Telenco 48FO SC/APC Pivoting Patch Panel is a compact, high-density fibre management solution designed for FTTH, FTTx and optical access network deployments. Factory pre-terminated with 48 SC/APC connectors and G.657A2 single-mode fibre, the panel provides an installation-ready solution that helps reduce on-site preparation and supports consistent optical performance.

Its pivoting tray design can be configured for either right- or left-hand opening, providing convenient front access during installation, maintenance and network expansion. This makes the panel particularly suitable for street cabinets, ODFs and other installations where rear access or available working space may be restricted.

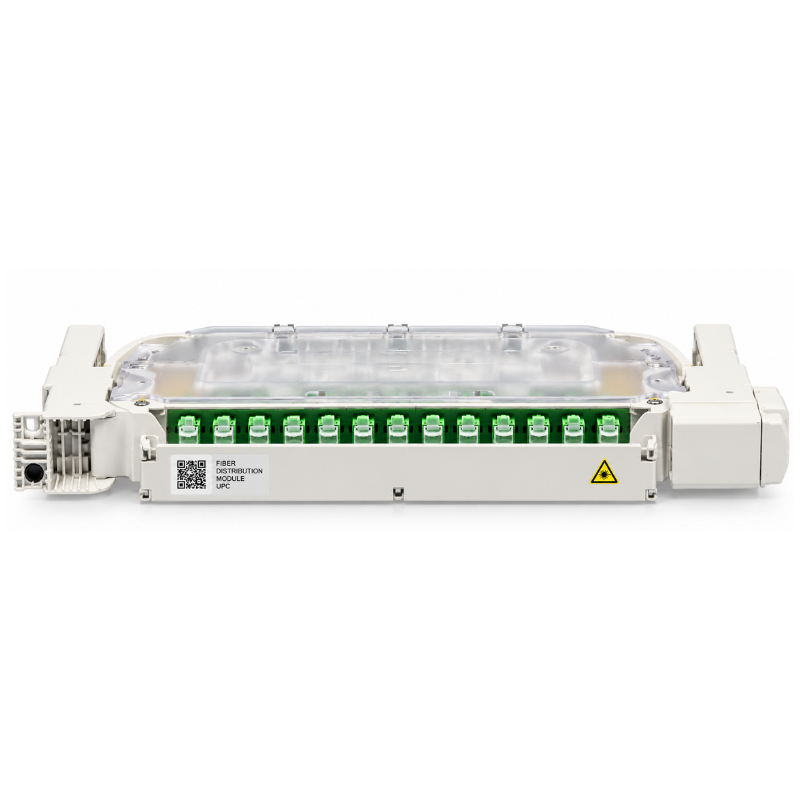

The compact 19" 1U format provides 48-fibre capacity while minimising rack space requirements. A recessed front panel helps protect connected patchcords and supports neat, controlled cable management within high-density fibre environments.

The panel incorporates bend-insensitive G.657A2 fibre, supporting tighter routing within cabinets and racks. Factory-built at Telenco's European production centre, the panel is supplied with splice sleeves, cable ties, cage nuts and screws for streamlined installation.

Key Features:

• Factory pre-terminated with 48 x SC/APC connectors

• 48-fibre single-mode configuration

• G.657A2 bend-insensitive fibre

• Pivoting tray for convenient front access

• Configurable right- or left-hand opening

• Compact 1U rack height

• Compatible with standard 19" racks

• Suitable for ODFs and shallow-depth cabinets

• Recessed front panel with cord protection

• Supports organised fibre and patchcord management

• 2.5m pigtail length

• Factory-built for reduced installation time

• Supplied with splice sleeves and cable ties

• Cage nuts and screws included

• Manufactured at Telenco's European production centre

• IEC 61300 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 48FO

• Connector Type: SC/APC

• Number of Connectors: 48

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥60dB (APC)

• Panel Material: Fibre-Reinforced Composite

• Ferrule Material: Zirconia Ceramic

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Fibre distribution networks

• Optical Distribution Frames (ODFs)

• Telecommunications infrastructure

• 19" telecommunications racks

• Street cabinets

• Shallow-depth enclosures

• High-density fibre termination and distribution
