Telenco Pivoting Patch Panel 19’’ 1U – 24FO SC/UPC G.657A2 R/L

Telenco Pivoting Patch Panel – 19" 1U – 24FO – SC/UPC – G.657A2 – R/L

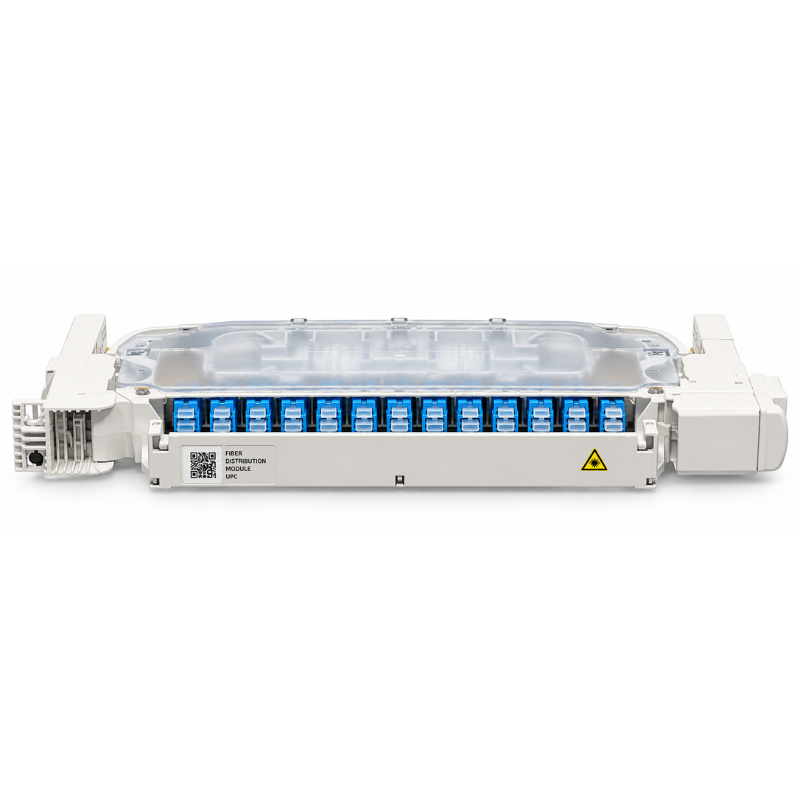

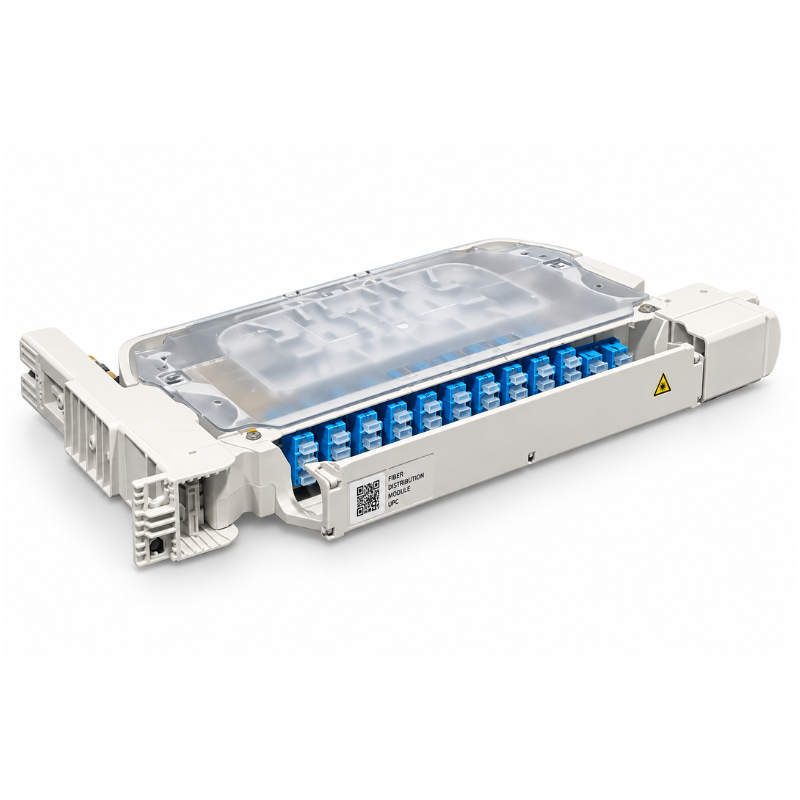

The Telenco 24FO Pivoting Patch Panel is a compact, factory-prepared fibre management solution designed for FTTH, FTTx and optical distribution networks. Pre-terminated with 24 SC/UPC connectors and G.657A2 single-mode fibre, the panel helps reduce on-site preparation while providing reliable, low-loss optical connectivity.

Its pivoting tray design can be configured to open from either the right or left, providing convenient front access to fibre connections for installation, maintenance and network expansion. This makes the panel particularly useful in installations where rear access is limited.

The compact 19" 1U format is suitable for standard telecommunications racks as well as shallow street cabinets. A recessed front panel helps protect connected patchcords while supporting neat and controlled fibre routing within the rack or enclosure.

Using bend-insensitive G.657A2 fibre, the panel is optimised for installations requiring tighter fibre routing. It is supplied with splice sleeves, cable ties, cage nuts and screws and is manufactured in Europe to provide a factory-prepared solution for professional optical network deployments.

Key Features:

• Factory pre-terminated with 24 x SC/UPC connectors

• 24-fibre single-mode configuration

• G.657A2 bend-insensitive fibre

• Pivoting tray for convenient front access

• Configurable right- or left-hand opening

• Compact 1U rack height

• Compatible with standard 19" racks

• Suitable for shallow street cabinets

• Recessed front panel for patchcord protection

• Supports neat and efficient fibre routing

• 2.5m pigtail length

• Supplied with splice sleeves and cable ties

• Cage nuts and screws included

• Manufactured in Europe

• Compliant with IEC 61300 standards

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 24FO

• Connector Type: SC/UPC

• Number of Connectors: 24

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥50dB

• Ferrule Material: Zirconia Ceramic

• Panel Material: Fibre-Reinforced Composite

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical distribution networks

• Fibre access networks

• Telecommunications infrastructure

• 19" equipment racks

• Street cabinets

• Shallow-depth enclosures

• Fibre termination and distribution

• Network maintenance and expansion
