Telenco Pivoting Patch Panel – 19" 1U – 24FO – SC/APC – G.657A2 – R/L

Telenco Pivoting Patch Panel – 19" 1U – 24FO – SC/APC – G.657A2 – R/L

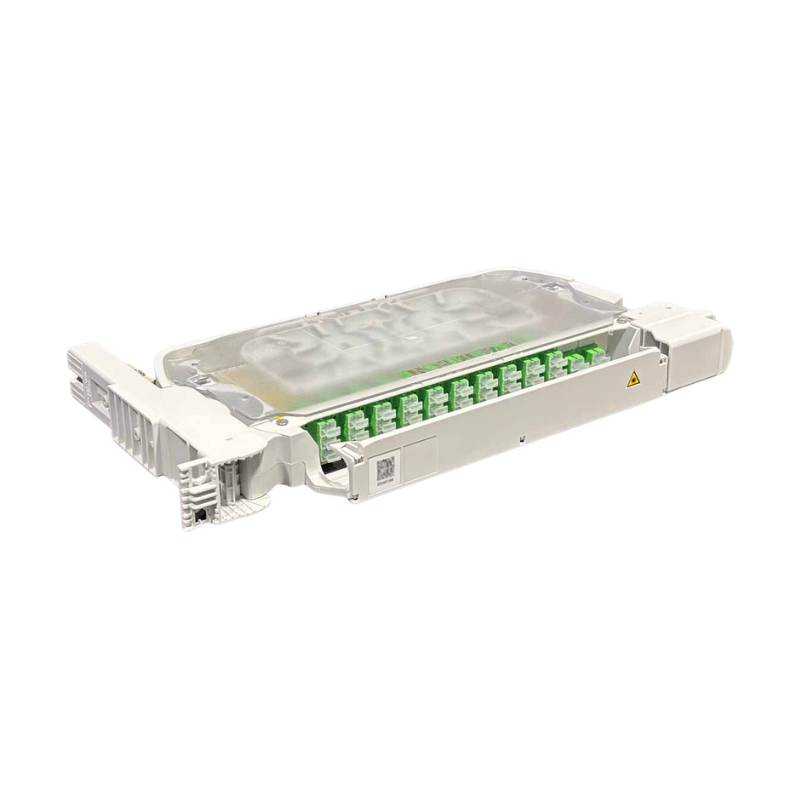

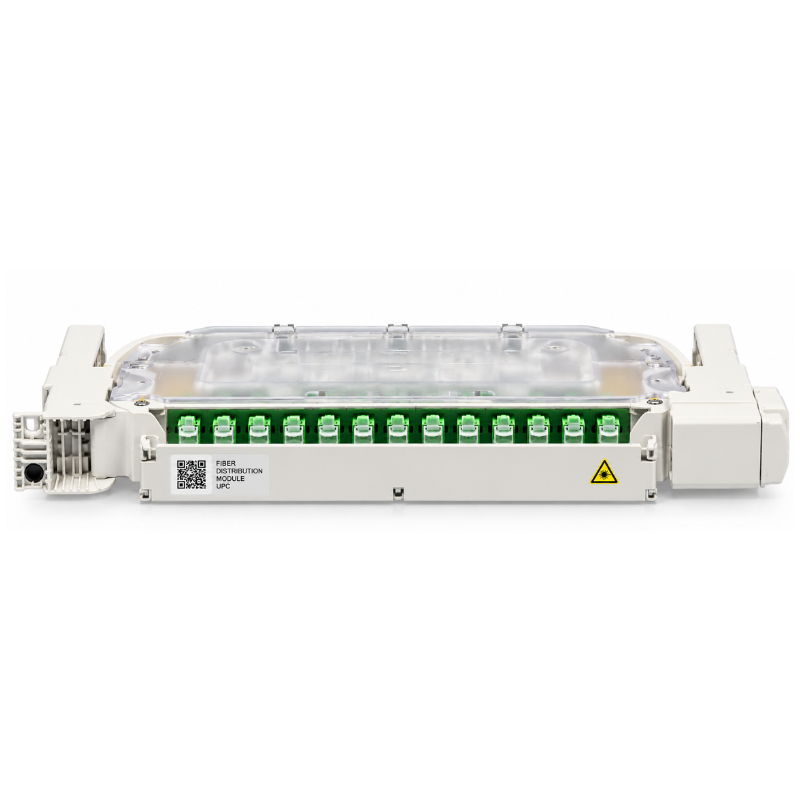

The Telenco 24FO SC/APC Pivoting Patch Panel is a high-performance fibre optic solution designed for efficient FTTH, FTTx and optical access network deployments. Factory pre-terminated with 24 SC/APC connectors and G.657A2 single-mode pigtails, the panel helps reduce installation time while providing consistent optical performance.

Its pivoting design features a configurable right- or left-hand axis, providing convenient front access to fibre connections during installation, maintenance and network expansion. The compact design is suitable for standard 19" racks, street cabinets and open chassis, with a minimum rack depth of 300mm.

The 1U format provides an efficient use of rack space, while the recessed front panel and integrated cord protection support organised patchcord routing. Bend-insensitive G.657A2 fibre also enables tighter routing within space-constrained cabinets while maintaining reliable optical performance.

Manufactured from durable fibre-reinforced composite, the panel is factory-assembled at Telenco's European production unit and supplied with cage nuts, screws, splice sleeves and cable ties for streamlined installation.

Key Features:

• Factory pre-terminated with 24 x SC/APC connectors

• 24-fibre single-mode configuration

• G.657A2 bend-insensitive fibre pigtails

• Pivoting design for improved front access

• Configurable right- or left-hand axis

• Compact 19" 1U format

• Suitable for racks with a minimum depth of 300mm

• Suitable for street cabinets and open chassis

• Recessed front panel for organised fibre management

• Front cord protection

• 2.5m pigtail length

• Fibre-reinforced composite construction

• Factory-assembled for faster deployment

• Cage nuts and screws included

• Splice sleeves and cable ties included

• Manufactured in Europe

• IEC 61300 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Pivoting Fibre Optic Patch Panel

• Fibre Count: 24FO

• Connector Type: SC/APC

• Number of Connectors: 24

• Fibre Type: G.657A2

• Pigtail Length: 2.5m

• Rack Size: 19"

• Rack Height: 1U

• Minimum Rack Depth: 300mm

• Opening Direction: Right / Left Configurable

• Insertion Loss: ≤0.12dB average

• Maximum Insertion Loss: ≤0.25dB for 97% of samples

• Return Loss: ≥60dB (APC)

• Panel Material: Fibre-Reinforced Composite

• Ferrule Material: Zirconia

• Depth: 235 + 38mm

• Width: 482mm

• Height: 44mm

• Operating Temperature: -40°C to +75°C

• Compliance: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Optical access networks

• Fibre distribution networks

• Telecommunications infrastructure

• 19" telecommunications racks

• Street cabinets

• Open chassis installations

• Fibre termination and distribution

• Network maintenance and expansion
