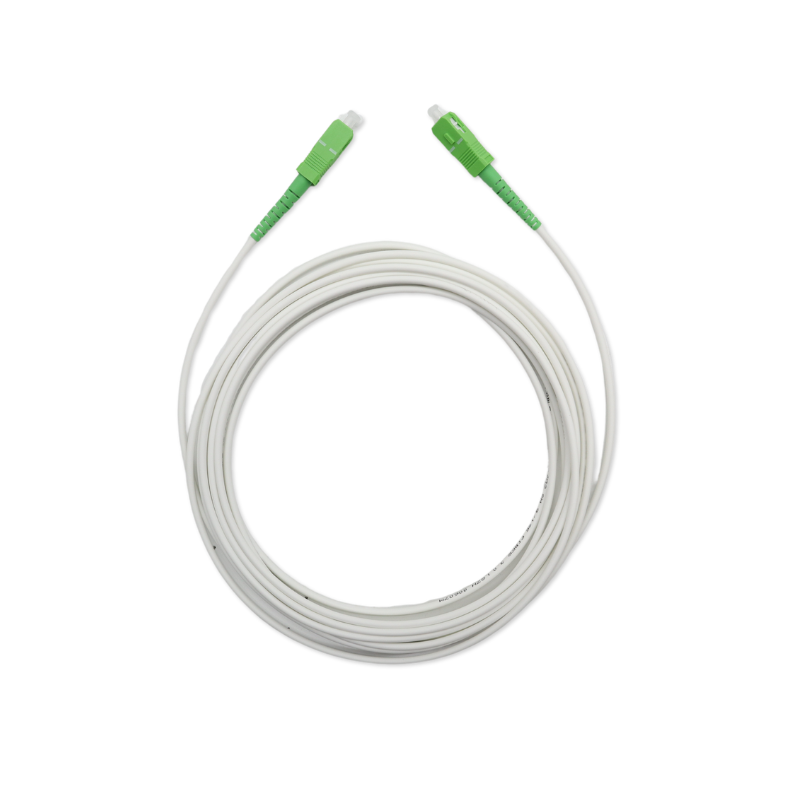

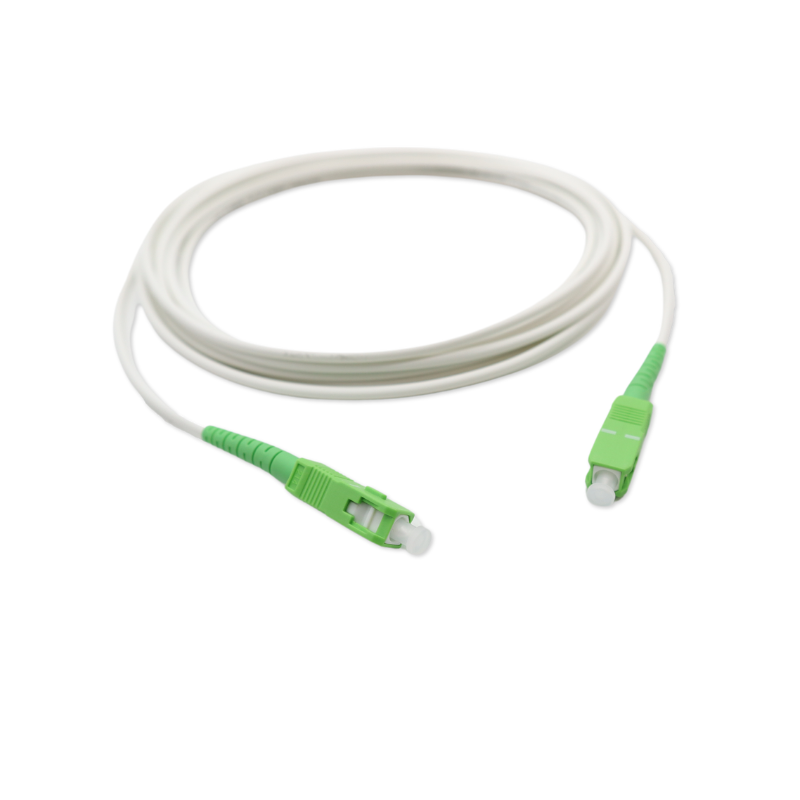

Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 1m
The Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 1m is a high-performance simplex fibre patchcord designed for short-distance optical connections in FTTH networks, telecom racks and internal building installations.
Manufactured with G.657A2 bend-insensitive singlemode fibre, this patchcord enables tight bend radius routing with minimal signal loss, making it ideal for confined spaces such as cabinets, patch panels and wall outlets. The SC/APC connectors ensure excellent return loss and stable signal transmission for high-quality fibre performance.
The Ø3mm LSZH (Low Smoke Zero Halogen) outer sheath provides strong mechanical protection while maintaining flexibility for easy installation. Its white finish is perfectly suited for residential and visible applications where a clean and discreet appearance is required.
Engineered with precision zirconia ceramic ferrules, the patchcord delivers low insertion loss, accurate alignment and consistent long-term reliability.
Key Features:
-
SC/APC to SC/APC connectors for high-performance connections
-
G.657A2 bend-insensitive singlemode fibre
-
Simplex (SX) configuration
-
1 metre length ideal for short connections
-
Ø3.0mm LSZH sheath for durability and flexibility
-
White outer jacket for clean, aesthetic installations
-
Low insertion loss and high return loss
-
Zirconia ceramic ferrules for precision alignment
-
Fully tested to IEC standards
Technical Specifications:
-
Product Type: Fibre patchcord (simplex)
-
Connector Type: SC/APC – SC/APC
-
Fibre Type: Singlemode G.657A2
-
Configuration: Simplex (SX)
-
Length: 1 m
-
Cable Diameter: Ø3.0 mm
-
Sheath Material: LSZH (Low Smoke Zero Halogen)
-
Colour: White
-
Insertion Loss: ≤ 0.25 dB max, ≤ 0.12 dB typical (Grade B)
-
Return Loss: ≥ 60 dB (SC/APC)
-
Operating Temperature: -40°C to +75°C
-
Static Bend Radius: 15 mm
-
Crush Resistance: 1000 N
-
Compliance: IEC 61300, IEC 61754
Applications:
-
FTTH (Fibre to the Home) installations
-
Telecom cabinets and patch panels
-
Internal fibre connections
-
Optical outlets and short link connections
-
Data and broadband infrastructure
