Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 10m

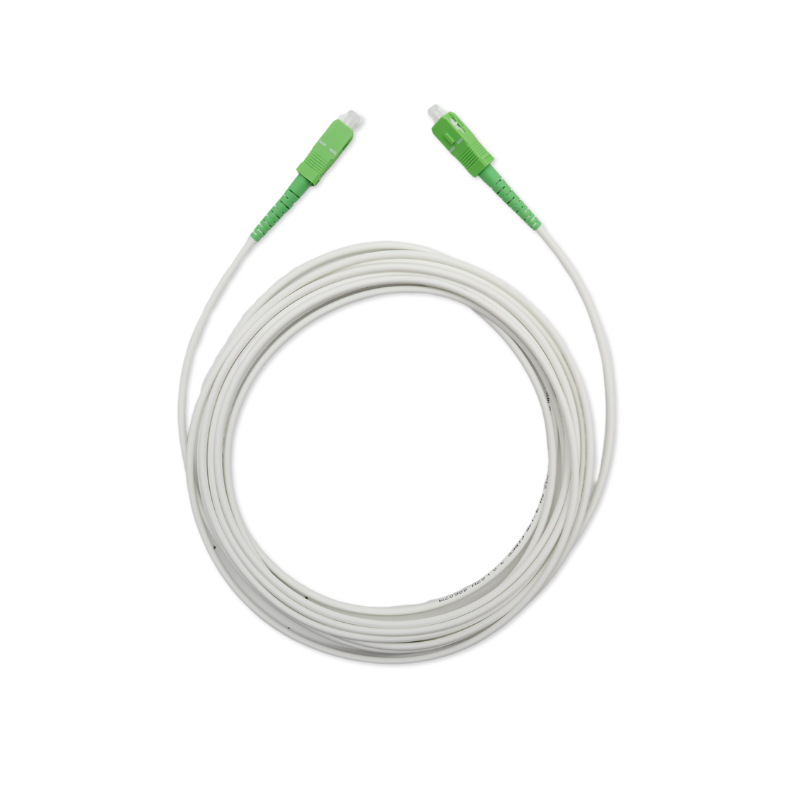

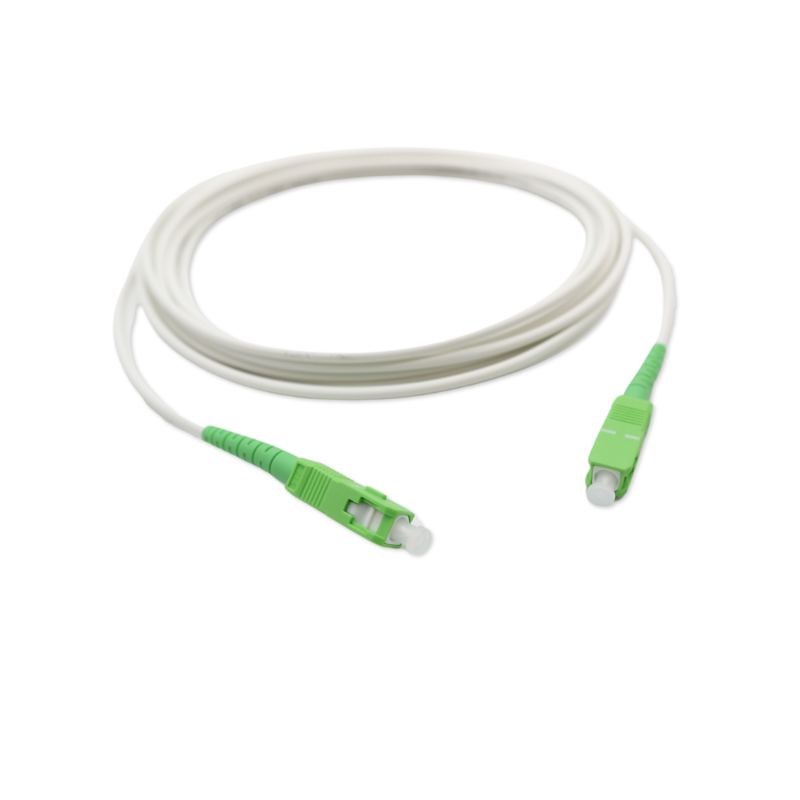

The Telenco Patchcord White SX SC/APC–SC/APC G.657A2 Ø3mm – 10m is a high-performance simplex fibre patchcord designed for reliable optical connectivity in FTTH networks, telecom racks and internal building installations. Manufactured using G.657A2 bend-insensitive singlemode fibre, this patchcord supports tight bend radius installations with minimal signal loss, making it ideal for confined spaces such as cabinets, wall outlets and patch panels. The SC/APC connectors ensure excellent return loss and stable signal transmission, supporting high-quality fibre network performance.
The Ø3mm LSZH (Low Smoke Zero Halogen) outer sheath provides enhanced mechanical protection while maintaining flexibility for easy routing. Its white finish is ideal for residential and visible installations where aesthetics are important.
Built for precision and durability, the connectors incorporate zirconia ceramic ferrules, ensuring accurate alignment, low insertion loss and consistent long-term performance.
Key Features:
-
SC/APC to SC/APC connectors for high-performance optical links
-
G.657A2 bend-insensitive singlemode fibre
-
Simplex (SX) configuration
-
10 metre length
-
Ø3.0mm LSZH sheath for durability and flexibility
-
White outer jacket for clean, aesthetic installations
-
Low insertion loss and high return loss performance
-
Zirconia ceramic ferrules for precision alignment
-
Fully tested to IEC standards
Technical Specifications:
-
Product Type: Fibre patchcord (simplex)
-
Connector Type: SC/APC – SC/APC
-
Fibre Type: Singlemode G.657A2
-
Configuration: Simplex (SX)
-
Length: 10 m
-
Cable Diameter: Ø3.0 mm
-
Sheath Material: LSZH (Low Smoke Zero Halogen)
-
Colour: White
-
Insertion Loss: ≤ 0.25 dB max, ≤ 0.12 dB typical (Grade B)
-
Return Loss: ≥ 60 dB (SC/APC)
-
Operating Temperature: -40°C to +75°C
-
Static Bend Radius: 15 mm
-
Crush Resistance: 1000 N
-
Compliance: IEC 61300, IEC 61754
Applications:
-
FTTH (Fibre to the Home) installations
-
Telecom cabinets and patch panels
-
Internal fibre connections
-
Optical outlets and residential deployments
-
Data and broadband infrastructure
