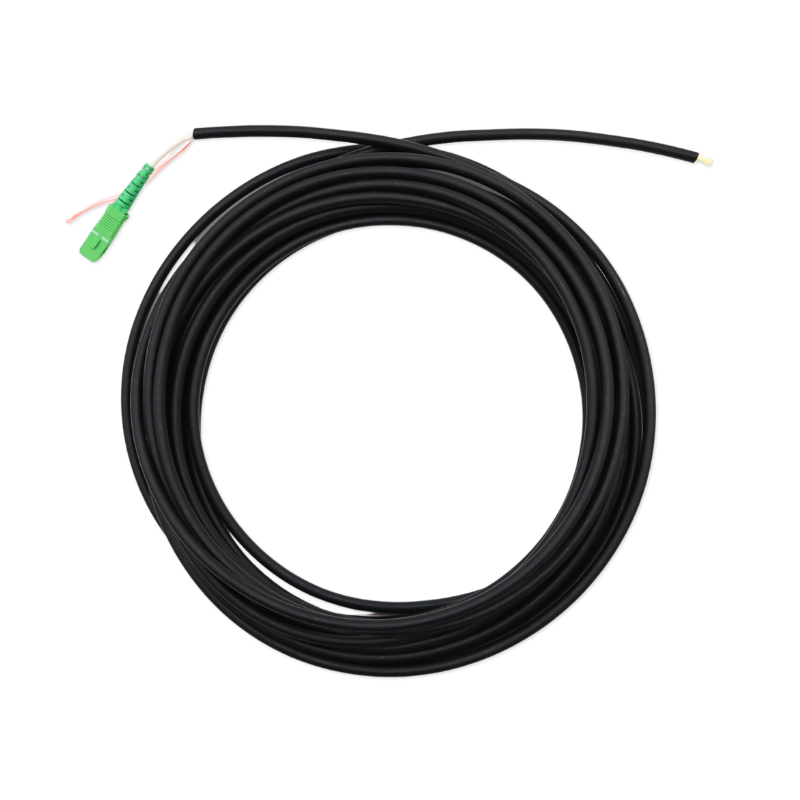

Telenco Dual Sheath Internal/External Lead-In Cable 1F SC/APC – Multiple Lengths

Telenco Dual Sheath Internal / External Lead-In Cable 1F SC/APC – Multiple Lengths

The Telenco Dual Sheath Internal / External Lead-In Cable 1F SC/APC – Multiple Lengths is a high-performance drop cable engineered to simplify outdoor-to-indoor fibre transitions in FTTH deployments.

Designed with a dual-sheath construction, the cable features a robust 5.0mm UV-resistant LSZH outer jacket for external protection and a 3.0mm flame-retardant LSZH inner cable for safe indoor routing. This ensures full compliance with CPR B2ca fire standards, making it suitable for installations that transition directly into customer premises.

At its core, the cable uses G.657B3 bend-insensitive singlemode fibre, allowing for tight routing with minimal signal loss, even in confined or complex environments. A pre-terminated SC/APC connector provides fast, reliable connections, while the integrated rip cord enables quick removal of the outer sheath during installation.

Lightweight, flexible and durable, this cable is optimised for efficient installation, reduced labour time and consistent optical performance across transition points.

Key Features:

• Dual-sheath design for outdoor-to-indoor transitions

• 1F G.657B3 bend-insensitive fibre

• Pre-terminated SC/APC connector

• UV-resistant 5.0mm outer sheath for external protection

• 3.0mm FR-LSZH inner cable for indoor use

• Integrated rip cord for easy sheath removal

• Aramid yarn strength member for reliable pulling performance

• Compliant with CPR B2ca fire rating (inner cable)

• Available in multiple lengths for flexible deployment

Technical Specifications:

• Product Type: Dual sheath lead-in drop cable

• Fibre Count: 1F

• Fibre Type: ITU-T G.657B3 singlemode

• Connector Type: SC/APC

Cable Construction:

• Outer Sheath: 5.0 mm UV-LSZH (Black)

• Inner Cable: 3.0 mm FR-LSZH (White)

• Buffer: 0.9 mm LSZH

• Strength Member: Aramid yarn

• Sheath Removal: Rip cord

• Nominal Weight: ~21 kg/km

Mechanical & Optical Performance:

• Tensile Strength: 100N (long-term) / 200N (short-term)

• Crush Resistance: 300N (long-term) / 1000N (short-term)

• Minimum Bend Diameter: 5 mm (fibre)

• Attenuation: 0.35 dB/km @1310nm / 0.21 dB/km @1550nm

• Insertion Loss: ≤ 0.30 dB

• Return Loss: ≥ 60 dB (SC/APC)

Environmental:

• Installation Temperature: -10°C to +60°C

• Storage Temperature: -40°C to +70°C

Applications:

• FTTH lead-in cable installations

• Outdoor-to-indoor fibre transitions

• Residential and MDU deployments

• Customer connection drop cables

• Telecom access network installations
