Telenco Dual Sheath Internal/External Lead-In Cable G657B3 1F SC/APC - 15m Pigtail

Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 15m Pigtail

The Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 15m Pigtail is a premium fibre optic lead-in cable engineered to provide a seamless transition between outdoor and indoor fibre installations without the need for additional joints or transition enclosures.

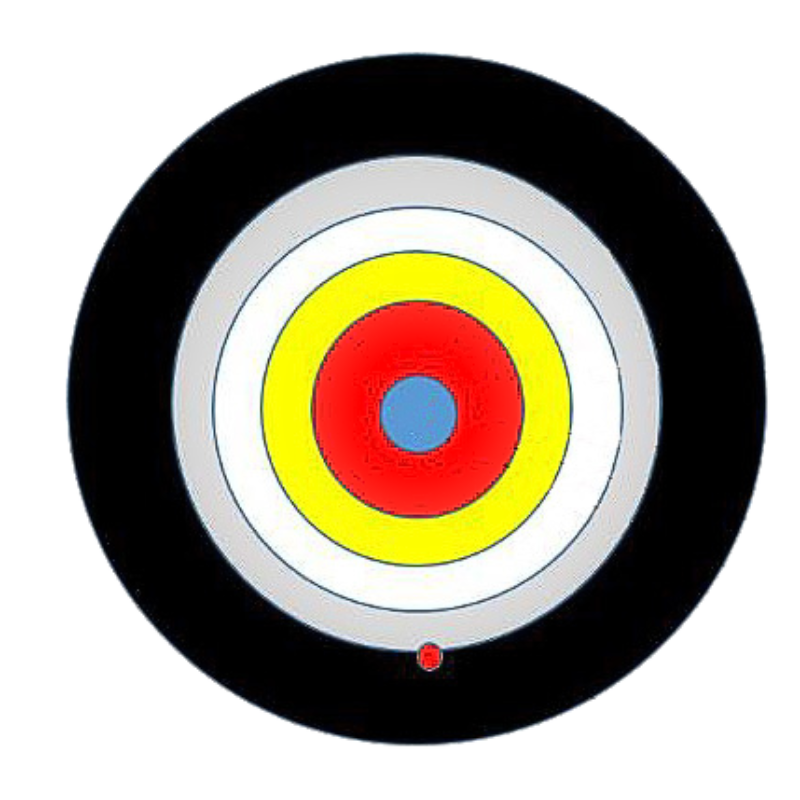

Manufactured using G657B3 bend-insensitive single-mode fibre, the cable delivers exceptional optical performance and outstanding flexibility, making it ideal for FTTH, FTTP and broadband access networks where tight bend radii and complex installation routes are common. Its innovative dual sheath construction combines a durable 5.0mm UV-resistant LSZH outer sheath for outdoor protection with a 3.0mm CPR B2ca LSZH inner cable, allowing direct building entry while complying with stringent fire safety regulations.

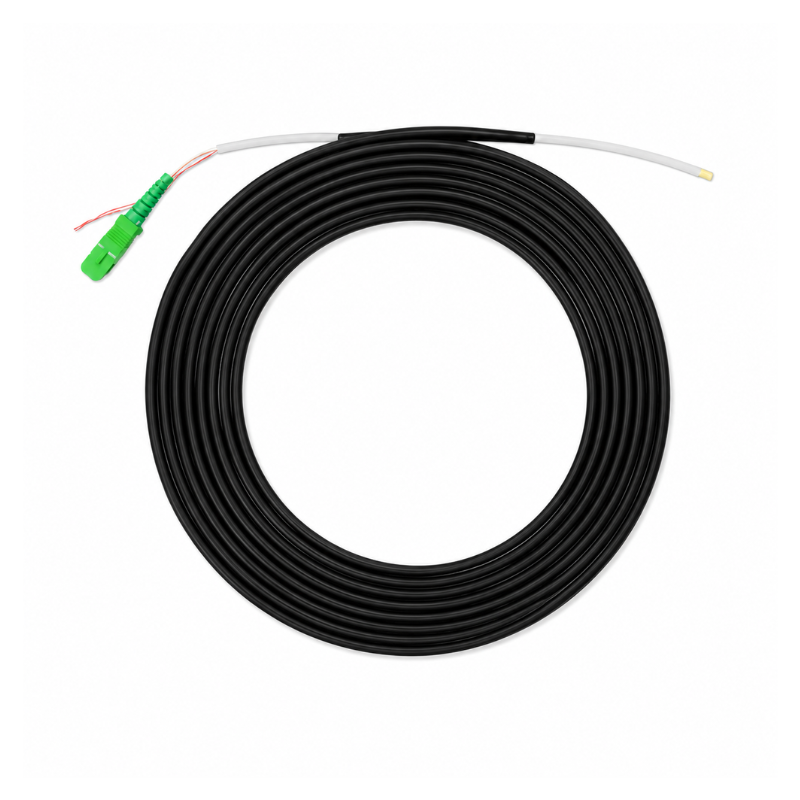

Supplied with a factory-terminated SC/APC connector on a 15m pigtail, the cable offers excellent return loss and low insertion loss, reducing installation time while ensuring reliable long-term network performance. Aramid yarn strength members, water-blocking tape and an integrated rip cord provide enhanced mechanical protection and ease of installation, making this cable an ideal solution for professional fibre access deployments.

Key Features:

• Dual sheath internal/external lead-in cable

• 1 fibre G657B3 bend-insensitive single-mode fibre

• Factory-terminated SC/APC connector

• 15m pigtail

• UV-resistant LSZH outer sheath

• CPR B2ca LSZH internal cable

• Water-blocking tape for enhanced protection

• Aramid yarn strength members

• Excellent bend performance for confined installations

• Ideal for FTTH and FTTP deployments

Technical Specifications:

• Product Type: Dual Sheath Lead-In Cable

• Fibre Count: 1 Fibre (1F)

• Fibre Type: Single-Mode G657B3

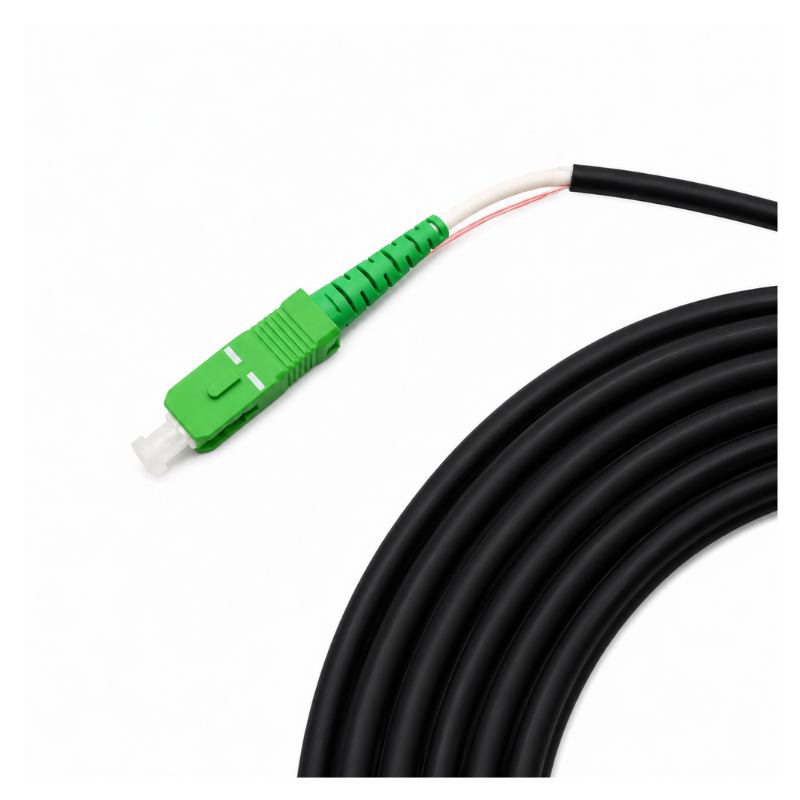

• Connector: SC/APC

• Pigtail Length: 15m

• Outer Cable Diameter: 5.0mm

• Inner Cable Diameter: 3.0mm

• Tight Buffer Diameter: 0.9mm

• Outer Jacket Material: UV-LSZH

• Outer Jacket Colour: Black

• Inner Jacket Material: LSZH CPR B2ca

• Inner Jacket Colour: White

• Strength Member: Aramid Yarn

• Water Blocking: Water Blocking Tape

• Sheath Removal: Rip Cord

• Cable Weight: 21kg/km

• Operating Temperature: -10°C to +60°C

• Tensile Strength:

  • Long Term: 100N

  • Short Term: 200N

• Crush Resistance:

  • Long Term: 300N

  • Short Term: 1000N

• Flame Performance: CPR B2ca

• Standards:

  • IEC 60794 Mechanical Test Methods

  • CPR B2ca Rated

Applications:

• FTTH installations

• FTTP deployments

• Fibre broadband rollouts

• Customer lead-in connections

• Internal and external fibre routing

• Residential fibre installations

• Commercial building entry

• Passive Optical Networks (PON)

• Telecommunications infrastructure

• Fibre access networks
