Telenco Dual Sheath Internal/External Lead-In Cable G657B3 1F SC/APC - 250m Pigtail

Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 200m Pigtail

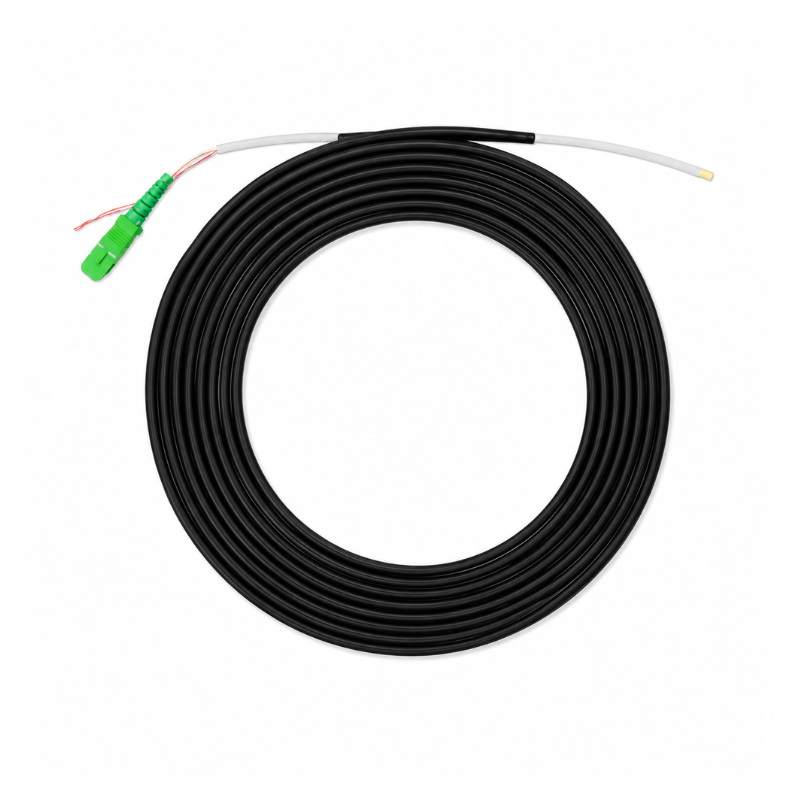

The Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 200m Pigtail is a premium fibre optic lead-in cable engineered to provide a seamless transition between outdoor and indoor fibre installations without the need for additional joints or transition enclosures.

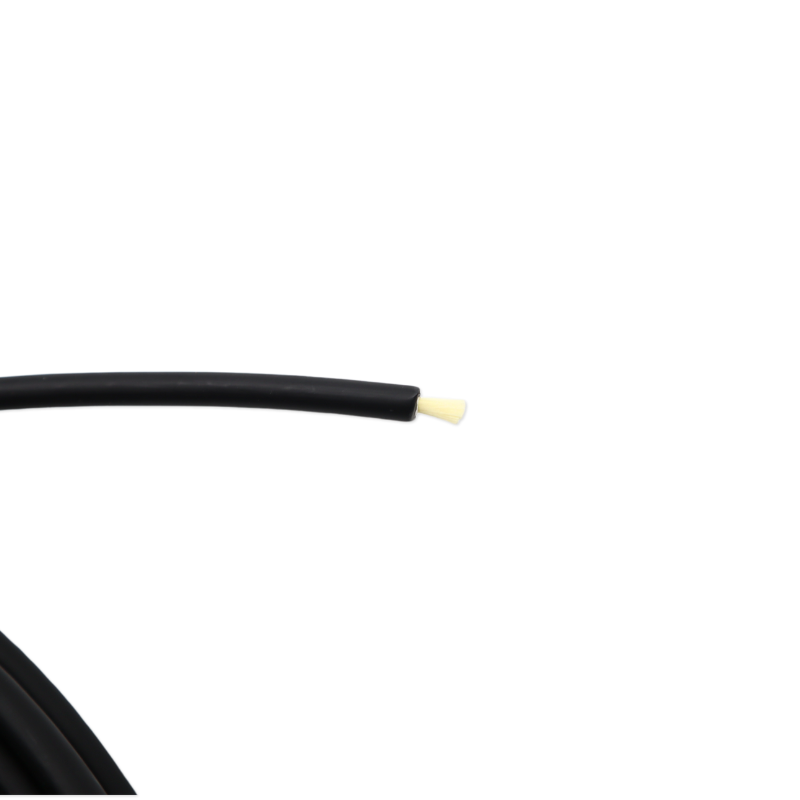

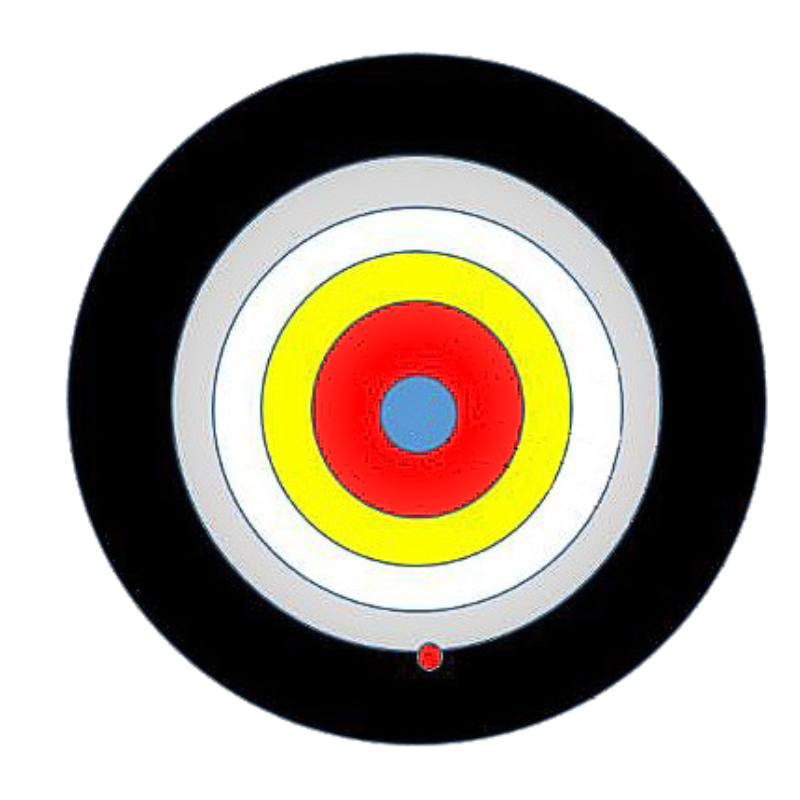

Manufactured using G657B3 bend-insensitive single-mode fibre, the cable delivers exceptional optical performance and superior flexibility, making it ideal for FTTH, FTTP and broadband access networks where extended lead-in distances and demanding installation routes are required. Its innovative dual sheath construction combines a durable 5.0mm UV-resistant LSZH outer sheath for external protection with a 3.0mm CPR B2ca flame-retardant LSZH inner cable, allowing direct building entry while complying with stringent fire safety requirements. The integrated rip cord enables quick removal of the outer sheath, while aramid yarn strength members provide excellent pulling performance and mechanical protection.

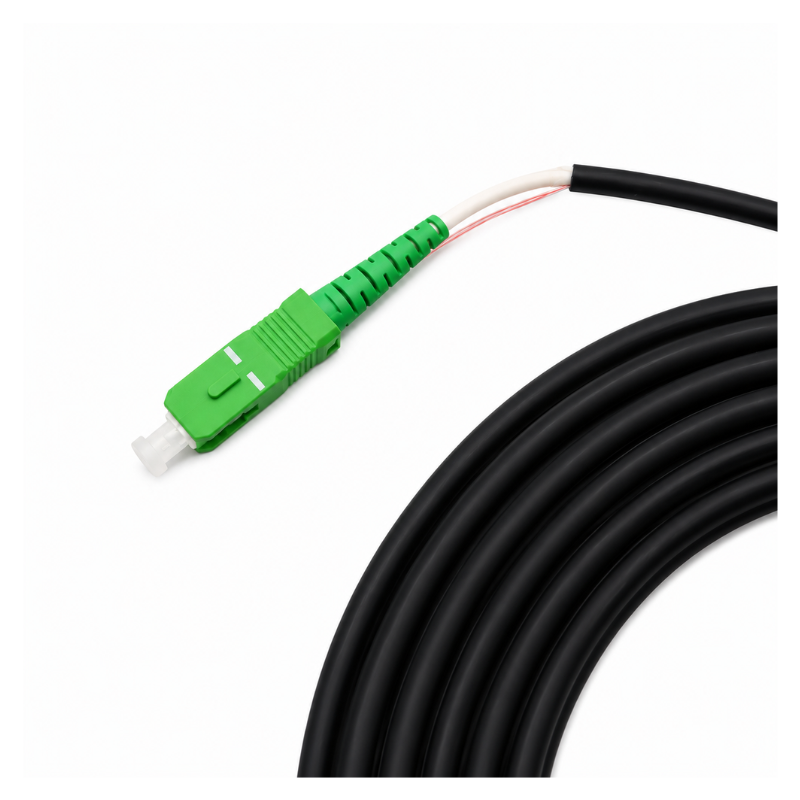

Supplied with a factory-terminated SC/APC connector on a 200m pigtail, the cable offers low insertion loss and high return loss for reliable, long-term optical performance. Its lightweight construction and robust design help reduce installation time, making it an ideal solution for professional FTTH, MDU and fibre access network deployments.

Key Features:

• Dual sheath internal/external lead-in cable

• 1 fibre G657B3 bend-insensitive single-mode fibre

• Factory-terminated SC/APC connector

• 200m pigtail

• UV-resistant LSZH outer sheath

• CPR B2ca flame-retardant LSZH inner cable

• Water-blocking tape for enhanced protection

• Aramid yarn strength members

• Integrated rip cord for easy sheath removal

• Ideal for FTTH and FTTP deployments

Technical Specifications:

• Product Type: Dual Sheath Lead-In Cable

• Fibre Count: 1 Fibre (1F)

• Fibre Type: ITU-T G657B3 Single-Mode

• Connector: SC/APC

• Pigtail Length: 200m

• Outer Cable Diameter: 5.0mm

• Inner Cable Diameter: 3.0mm

• Buffer Diameter: 0.9mm

• Outer Jacket: UV-LSZH (Black)

• Inner Jacket: FR-LSZH CPR B2ca (White)

• Strength Member: Aramid Yarn

• Water Blocking: Water-Blocking Tape

• Sheath Removal: Rip Cord

• Cable Weight: 21kg/km

• Tensile Strength:

  • Long Term: 100N

  • Short Term: 200N

• Crush Resistance:

  • Long Term: 300N

  • Short Term: 1000N

• Operating Temperature: -10°C to +60°C

• Storage Temperature: -40°C to +70°C

• Fibre Attenuation:

  • 0.35dB/km @1310nm

  • 0.21dB/km @1550nm

• Insertion Loss: ≤0.30dB

• Return Loss: ≥60dB

• Standards: IEC 60794 Mechanical Test Methods, CPR B2ca

Applications:

• FTTH installations

• FTTP deployments

• MDU fibre installations

• Customer lead-in connections

• Outdoor-to-indoor fibre transitions

• Residential broadband installations

• Commercial fibre networks

• Passive Optical Networks (PON)

• Telecommunications infrastructure

• Fibre access networks
