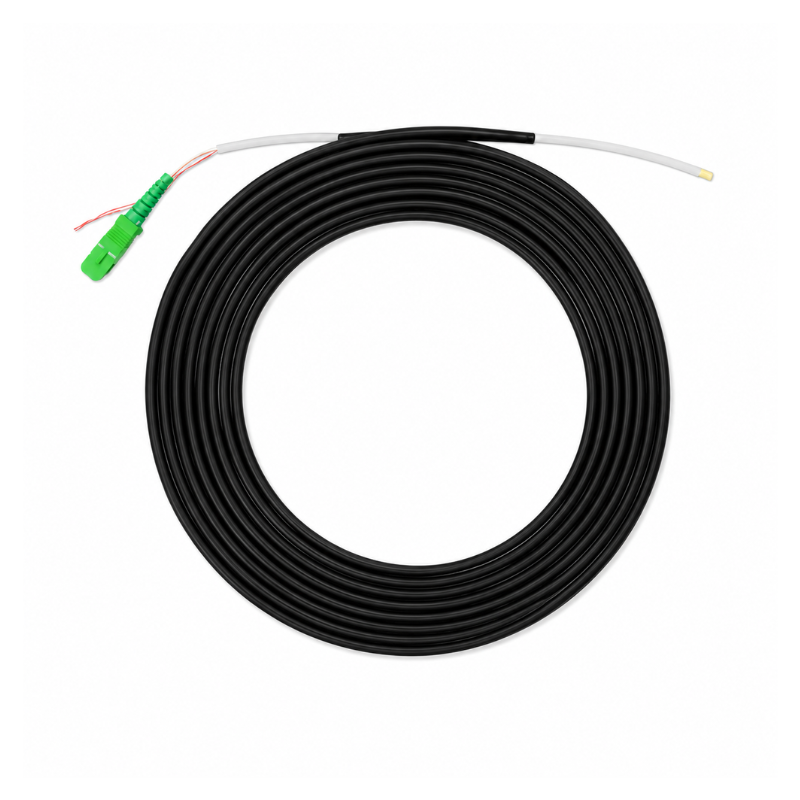

Telenco Dual Sheath Internal/External Lead-In Cable – G657A2 – 1F – SC/APC – 2m Pigtail
The Telenco Dual Sheath Internal/External Lead-In Cable – G657A2 – 1F – SC/APC – 2m Pigtail is a premium fibre optic lead-in cable designed to provide a seamless transition between outdoor and indoor fibre installations without the need for additional joints or transition enclosures.

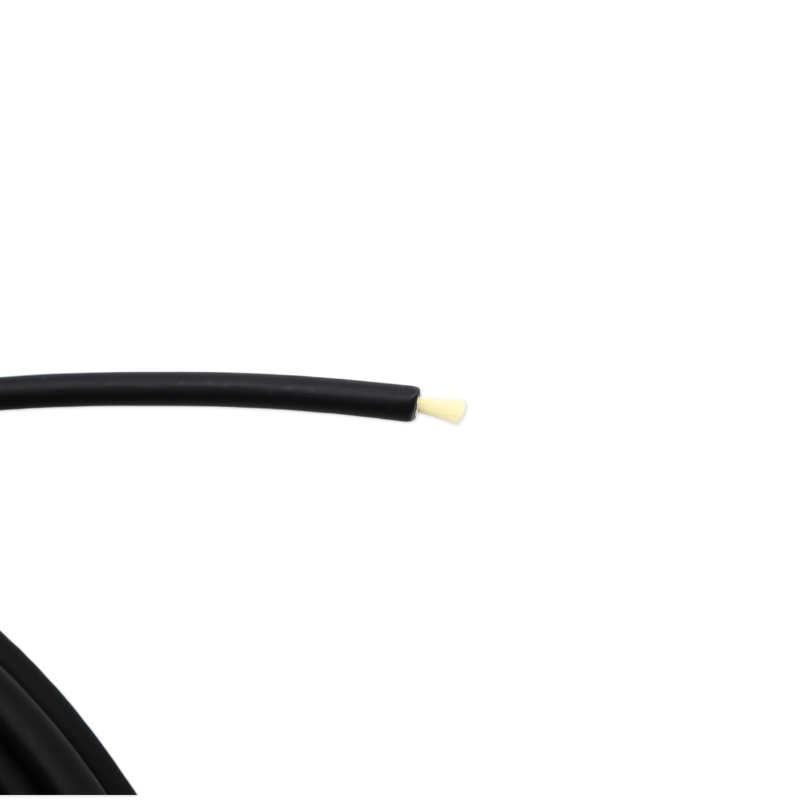

Manufactured using G657A2 bend-insensitive single-mode fibre, the cable delivers excellent optical performance and flexibility, making it ideal for FTTH, FTTP and broadband access networks where reliable routing through buildings and confined spaces is required. Its dual sheath construction combines a durable 5.0mm UV-resistant LSZH outer sheath for external protection with a 3.0mm flame-retardant LSZH inner cable, allowing direct building entry while meeting modern fire safety requirements. An integrated rip cord enables quick removal of the outer sheath, while aramid yarn strength members provide excellent tensile strength during installation.
Supplied with a factory-terminated SC/APC connector on a 2m pigtail, the cable offers low insertion loss and high return loss for dependable optical performance while significantly reducing installation time. Its robust yet lightweight design makes it ideal for professional fibre access, residential broadband and MDU deployments.
Key Features:
-
Dual sheath internal/external lead-in cable
-
1 fibre G657A2 bend-insensitive single-mode fibre
-

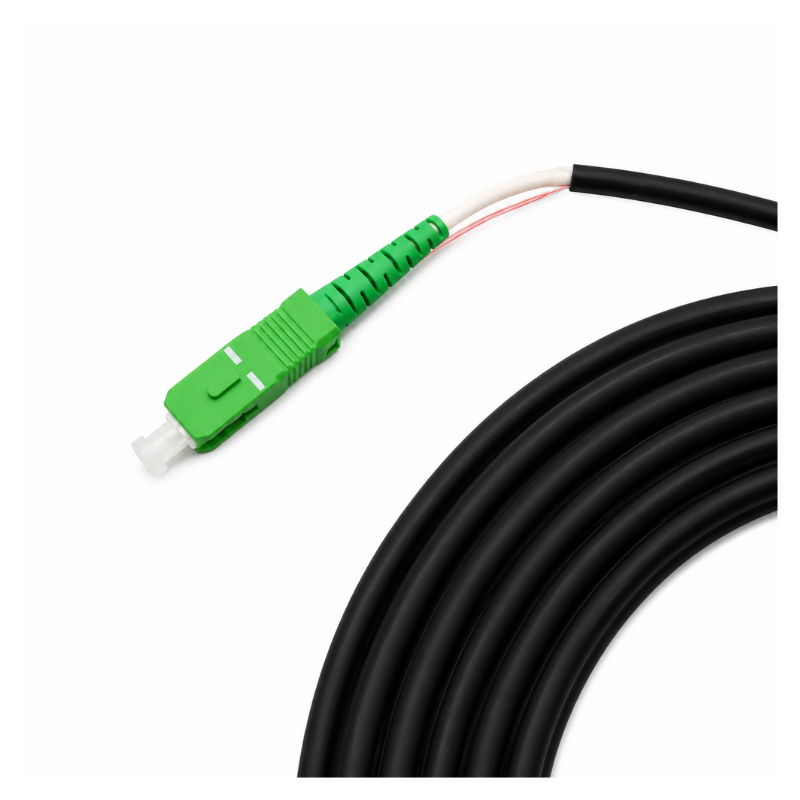

Factory-terminated SC/APC connector
-
2m pigtail
-
UV-resistant LSZH outer sheath
-
Flame-retardant LSZH inner cable
-
Integrated rip cord for easy sheath removal
-
Aramid yarn strength members
-
Low insertion loss and high return loss
-
Ideal for FTTH and FTTP deployments
Technical Specifications:
-
Product Type: Dual Sheath Lead-In Cable
-
Fibre Count: 1 Fibre (1F)
-
Fibre Type: ITU-T G657A2 Single-Mode
-
Connector: SC/APC
-
Pigtail Length: 2m
-
Outer Cable Diameter: 5.0mm
-
Inner Cable Diameter: 3.0mm
-
Buffer Diameter: 0.9mm
-
Outer Jacket Material: UV-Resistant LSZH
-
Outer Jacket Colour: Black
-
Inner Jacket Material: Flame-Retardant LSZH
-
Inner Jacket Colour: White
-
Strength Member: Aramid Yarn
-
Sheath Removal: Integrated Rip Cord
-
Operating Temperature: -10°C to +60°C
-
Storage Temperature: -40°C to +70°C
Applications:
-
FTTH installations
-
FTTP deployments
-
Residential broadband connections
-
Multi-dwelling unit (MDU) installations
-
Customer lead-in connections
-
Internal and external fibre routing
-
Passive Optical Networks (PON)
-
Telecommunications infrastructure
-
Commercial building entry
-
Fibre access networks
