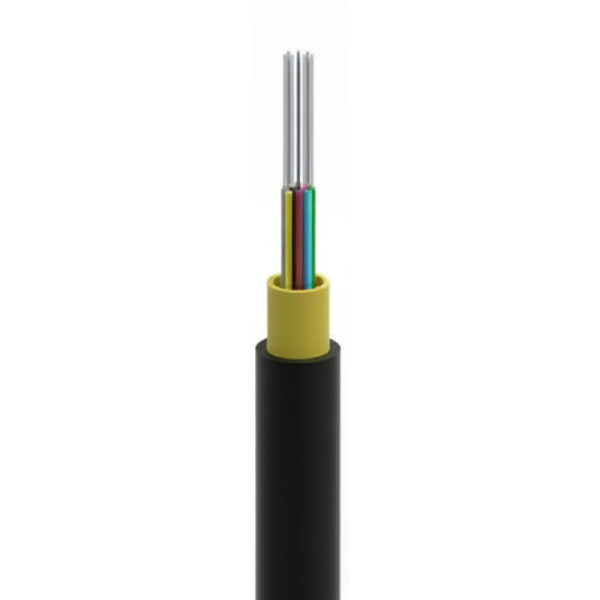

Int/Ext Midspan Cable G657B3 3.0mm Cca – Black – Multiple Fibre Counts

Internal / External Midspan Cable 24F G657B3 3.0mm Cca – Black – Multiple Fibre Counts

The Internal / External Midspan Cable G657B3 3.0mm Cca – Black – Multiple Fibre Counts is a compact, high-performance solution designed for scalable fibre deployment across MDU, residential and access network environments.

Available in multiple fibre counts (including 12F and 24F variants), this cable range provides flexibility for both standard and higher-density installations. Its single-sheathed construction with FR-LSZH outer jacket and water-blocking aramid yarns ensures durability and reliability in both indoor and outdoor applications.

With a 3.0mm compact diameter, the cable supports discreet routing while maintaining strong mechanical performance. The use of G.657B3 bend-insensitive fibre enables tight bend radii with minimal attenuation, making it ideal for complex routing paths and midspan access deployments in multi-dwelling environments.

Key Features:

• Available in multiple fibre counts (12F and 24F options)

• Suitable for internal and external installations

• G.657B3 bend-insensitive fibre for tight routing

• Compact 3.0mm diameter for discreet deployment

• FR-LSZH outer sheath for enhanced fire safety

• Water-blocking aramid yarn strength members

• Designed for midspan access and corridor installations

• Compliant with CPR Cca fire rating

• Enables fast, reliable and consistent installation

Technical Specifications:

• Product Type: Fibre optic corridor / midspan cable

• Fibre Options: 12F / 24F

• Fibre Type: ITU-T G.657B3 singlemode

• Outer Diameter: 3.0 ± 0.1 mm

• Sheath Material: FR-LSZH (Low Smoke Zero Halogen)

• Colour: Black

• Strength Member: Aramid yarns

• Fire Rating: CPR Cca compliant

Mechanical & Environmental Performance:

• Tensile Strength: 200N (long-term) / 500N (short-term)

• Minimum Bend Radius:

  • Dynamic: 30D

  • Static: 15D

• Crush Resistance: 200N/10cm (long-term), 500N/10cm (short-term)

• Installation Temperature: -10°C to +65°C

• Operating Temperature: -40°C to +70°C

Applications:

• MDU corridor and riser installations

• Internal and external fibre routing

• FTTH and FTTx deployments

• Midspan cable access and distribution networks

• Residential and commercial fibre infrastructure
