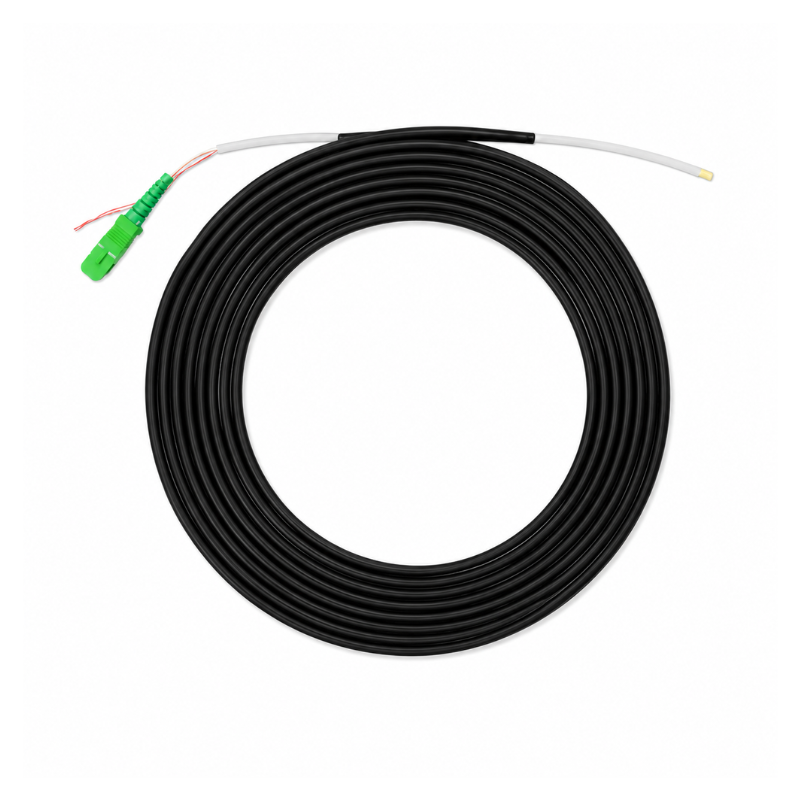

Telenco Dual Sheath Internal/External Lead-In Cable G657B3 1F SC/APC - 125m Pigtail

Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 125m Pigtail

The Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 125m Pigtail is a premium fibre optic lead-in cable engineered to provide a seamless transition between outdoor and indoor fibre installations without the need for additional joints or transition enclosures.

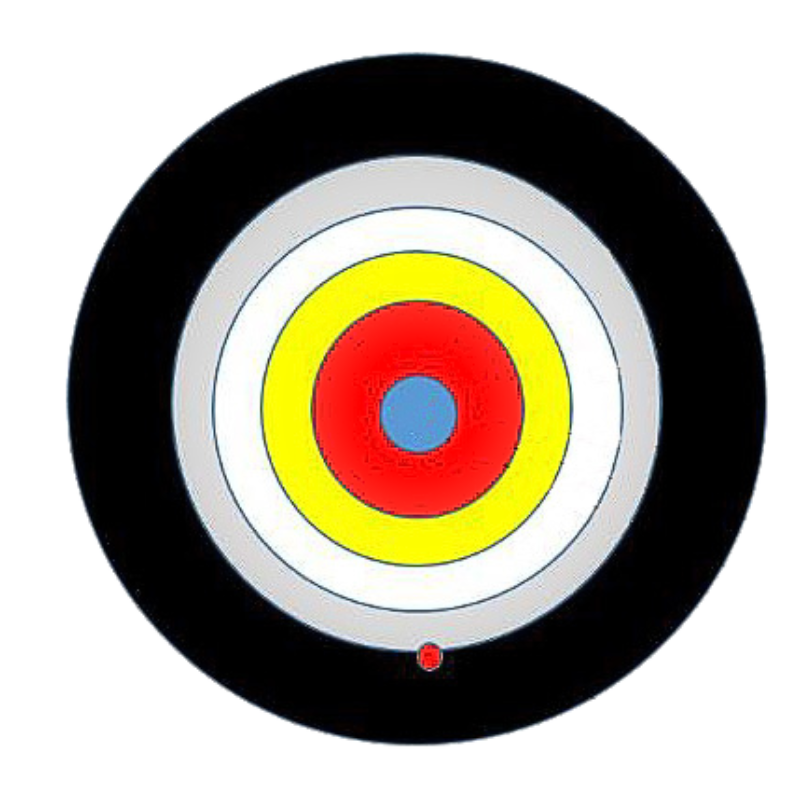

Manufactured using G657B3 bend-insensitive single-mode fibre, the cable delivers exceptional optical performance and superior flexibility, making it ideal for FTTH, FTTP and broadband access networks where long lead-in distances and challenging installation routes are common. The innovative dual sheath construction combines a durable 5.0mm UV-resistant LSZH outer sheath for external protection with a 3.0mm CPR B2ca LSZH inner cable, allowing direct building entry while complying with stringent fire safety requirements.

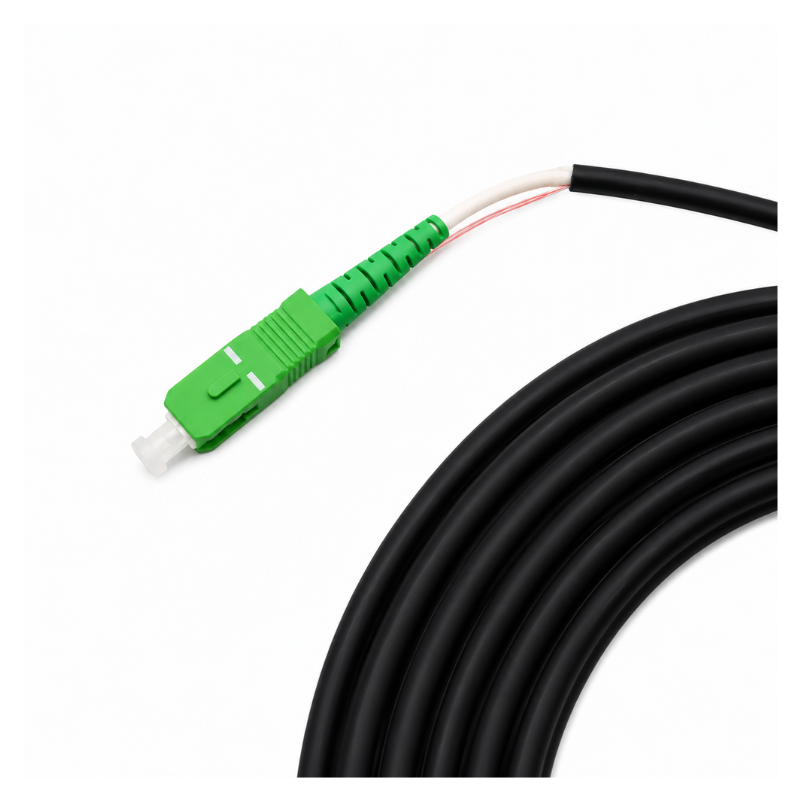

Supplied with a factory-terminated SC/APC connector on a 125m pigtail, the cable provides excellent return loss and low insertion loss, helping to reduce installation time while ensuring reliable long-term network performance. Aramid yarn strength members, water-blocking tape and an integrated rip cord provide enhanced mechanical protection and simplify installation, making this cable an ideal solution for professional fibre access and broadband deployments.

Key Features:

• Dual sheath internal/external lead-in cable

• 1 fibre G657B3 bend-insensitive single-mode fibre

• Factory-terminated SC/APC connector

• 125m pigtail

• UV-resistant LSZH outer sheath

• CPR B2ca LSZH internal cable

• Water-blocking tape for enhanced protection

• Aramid yarn strength members

• Excellent bend performance for confined installations

• Ideal for FTTH and FTTP deployments

Technical Specifications:

• Product Type: Dual Sheath Lead-In Cable

• Fibre Count: 1 Fibre (1F)

• Fibre Type: Single-Mode G657B3

• Connector: SC/APC

• Pigtail Length: 125m

• Outer Cable Diameter: 5.0mm

• Inner Cable Diameter: 3.0mm

• Tight Buffer Diameter: 0.9mm

• Outer Jacket Material: UV-LSZH

• Outer Jacket Colour: Black

• Inner Jacket Material: LSZH CPR B2ca

• Inner Jacket Colour: White

• Strength Member: Aramid Yarn

• Water Blocking: Water Blocking Tape

• Sheath Removal: Rip Cord

• Cable Weight: 21kg/km

• Operating Temperature: -10°C to +60°C

• Tensile Strength:

  • Long Term: 100N

  • Short Term: 200N

• Crush Resistance:

  • Long Term: 300N

  • Short Term: 1000N

• Flame Performance: CPR B2ca

• Standards:

  • IEC 60794 Mechanical Test Methods

  • CPR B2ca Rated

Applications:

• FTTH installations

• FTTP deployments

• Fibre broadband rollouts

• Customer lead-in connections

• Internal and external fibre routing

• Residential fibre installations

• Commercial building entry

• Passive Optical Networks (PON)

• Telecommunications infrastructure

• Fibre access networks
