Telenco Dual Sheath Internal/External Lead-In Cable G657B3 1F SC/APC - 2.5m Pigtail

Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 2.5m Pigtail

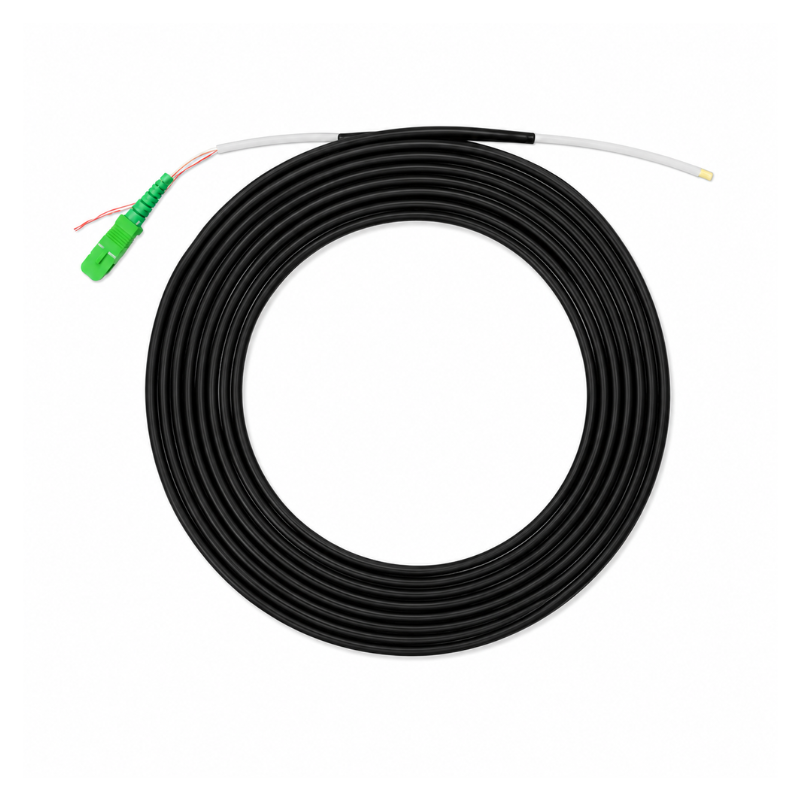

The Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 2.5m Pigtail is a premium fibre optic lead-in cable designed to provide a seamless transition between external and internal fibre installations without requiring additional joints or transition boxes.

Manufactured with G657B3 bend-insensitive single-mode fibre, the cable delivers outstanding flexibility and optical performance, making it ideal for FTTH, FTTP and broadband access networks where tight bend radii are often required. The innovative dual sheath construction combines a robust 5.0mm UV-resistant LSZH outer sheath for outdoor durability with a 3.0mm CPR B2ca LSZH inner cable, allowing direct entry into buildings while meeting stringent fire safety requirements.

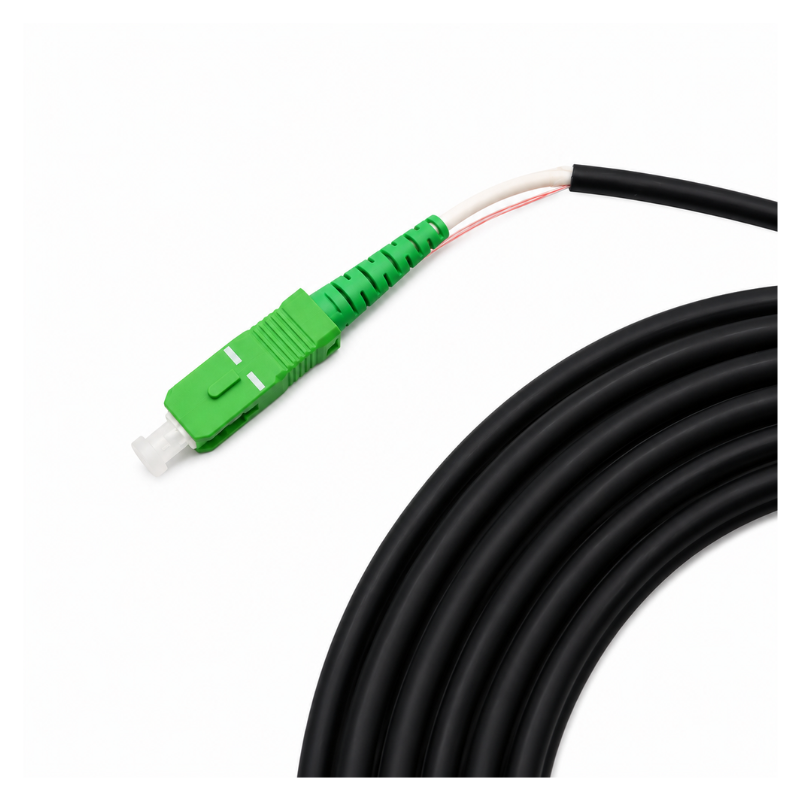

Supplied with a factory-terminated SC/APC connector on a 2.5m pigtail, the cable provides low insertion loss and excellent return loss, reducing installation time and ensuring consistent network performance. Featuring aramid yarn strength members, water-blocking tape and an integrated rip cord, it is built for reliable installation in demanding telecommunications environments.

Key Features:

• Dual sheath internal/external lead-in cable

• 1 fibre G657B3 bend-insensitive single-mode fibre

• Factory-terminated SC/APC connector

• 2.5m pigtail

• UV-resistant LSZH outer sheath

• CPR B2ca LSZH internal cable

• Water-blocking tape for added protection

• Aramid yarn strength members

• Excellent bend performance for confined installations

• Ideal for FTTH and FTTP deployments

Technical Specifications:

• Product Type: Dual Sheath Lead-In Cable

• Fibre Count: 1 Fibre (1F)

• Fibre Type: Single-Mode G657B3

• Connector: SC/APC

• Pigtail Length: 2.5m

• Outer Cable Diameter: 5.0mm

• Inner Cable Diameter: 3.0mm

• Tight Buffer Diameter: 0.9mm

• Outer Jacket Material: UV-LSZH

• Outer Jacket Colour: Black

• Inner Jacket Material: LSZH CPR B2ca

• Inner Jacket Colour: White

• Strength Member: Aramid Yarn

• Water Blocking: Water Blocking Tape

• Sheath Removal: Rip Cord

• Cable Weight: 21kg/km

• Operating Temperature: -10°C to +60°C

• Tensile Strength:

  • Long Term: 100N

  • Short Term: 200N

• Crush Resistance:

  • Long Term: 300N

  • Short Term: 1000N

• Flame Performance: CPR B2ca

• Standards: IEC 60794 Mechanical Test Methods

Applications:

• FTTH installations

• FTTP deployments

• Fibre broadband rollouts

• Customer lead-in connections

• Internal and external fibre routing

• Residential fibre installations

• Commercial building entry

• Passive Optical Networks (PON)

• Telecommunications infrastructure

• Fibre access networks
