Telenco Dual Sheath Internal/External Lead-In Cable G657B3 1F SC/APC - 2m Pigtail

Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 2m Pigtail

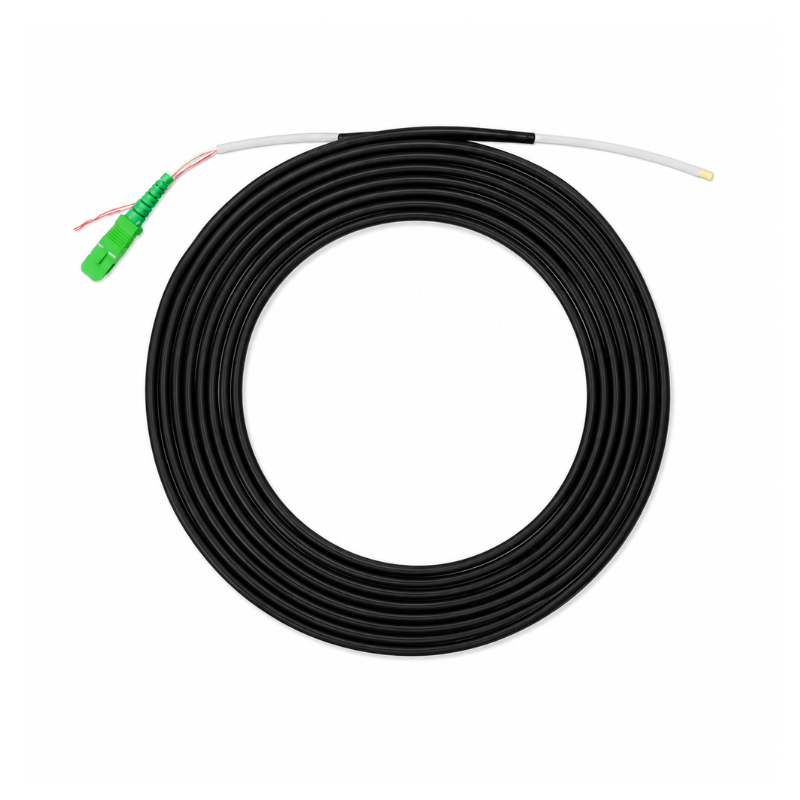

The Telenco Dual Sheath Internal/External Lead-In Cable – G657B3 – 1F – SC/APC – 2m Pigtail is a high-performance fibre optic lead-in cable designed to provide a seamless transition between external and internal fibre network installations without the need for additional joints.

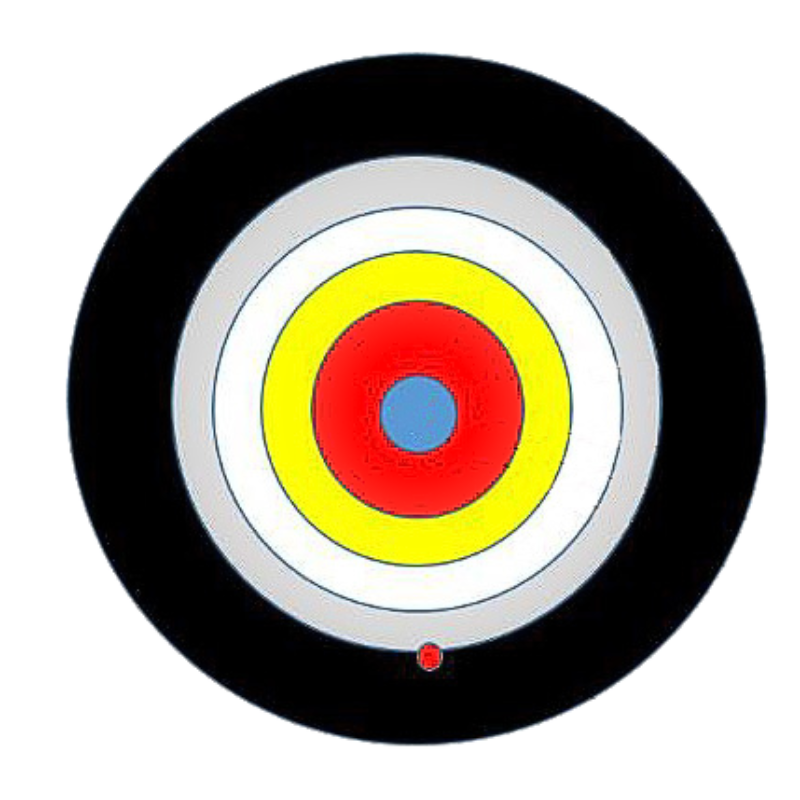

Constructed using G657B3 bend-insensitive single-mode fibre, the cable offers exceptional flexibility and bend performance, making it ideal for FTTH, FTTP and broadband deployments where tight routing and confined installation spaces are common. The dual sheath construction combines a robust 5.0mm UV-resistant LSZH outer sheath for external durability with a 3.0mm CPR B2ca LSZH inner cable, allowing safe entry into buildings while meeting stringent fire performance requirements.

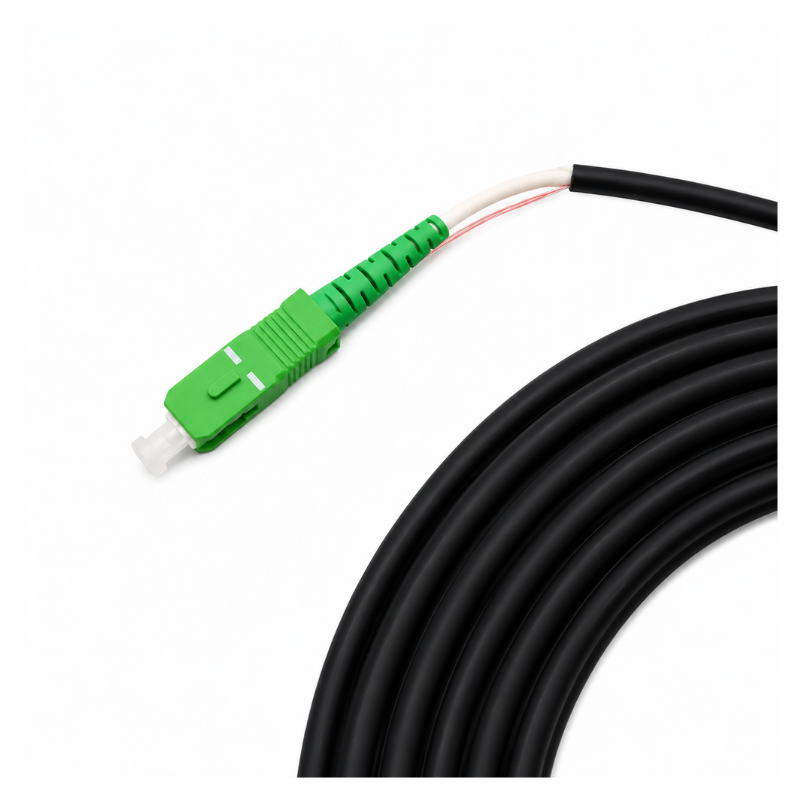

The cable is supplied with a factory-terminated SC/APC connector on a 2m pigtail, ensuring low insertion loss and consistent optical performance while reducing installation time on site. Aramid yarn strength members, water-blocking tape and a rip cord provide additional mechanical protection and ease of installation, making this cable ideal for professional fibre access networks.

Key Features:

• Dual sheath internal/external lead-in cable

• 1 fibre G657B3 bend-insensitive single-mode fibre

• Factory-terminated SC/APC connector

• 2m pigtail

• UV-resistant LSZH outer sheath

• CPR B2ca LSZH internal cable

• Water-blocking tape for added protection

• Aramid yarn strength members

• Excellent bend performance for tight installations

• Suitable for FTTH and FTTP deployments

Technical Specifications:

• Product Type: Dual Sheath Lead-In Cable

• Fibre Count: 1 Fibre (1F)

• Fibre Type: Single-Mode G657B3

• Connector: SC/APC

• Pigtail Length: 2m

• Outer Cable Diameter: 5.0mm

• Inner Cable Diameter: 3.0mm

• Tight Buffer Diameter: 0.9mm

• Outer Jacket Material: UV-LSZH

• Outer Jacket Colour: Black

• Inner Jacket Material: LSZH CPR B2ca

• Inner Jacket Colour: White

• Strength Member: Aramid Yarn

• Water Blocking: Water Blocking Tape

• Sheath Removal: Rip Cord

• Cable Weight: 21kg/km

• Operating Temperature: -10°C to +60°C

• Tensile Strength:

  • Long Term: 100N

  • Short Term: 200N

• Crush Resistance:

  • Long Term: 300N

  • Short Term: 1000N

• Flame Performance: CPR B2ca

• Standards: IEC 60794 Mechanical Test Methods

Applications:

• FTTH installations

• FTTP deployments

• Broadband access networks

• Customer lead-in connections

• Internal to external fibre transitions

• Residential fibre installations

• Commercial fibre networks

• Telecommunications infrastructure

• Passive optical networks (PON)

• Fibre optic building entry
