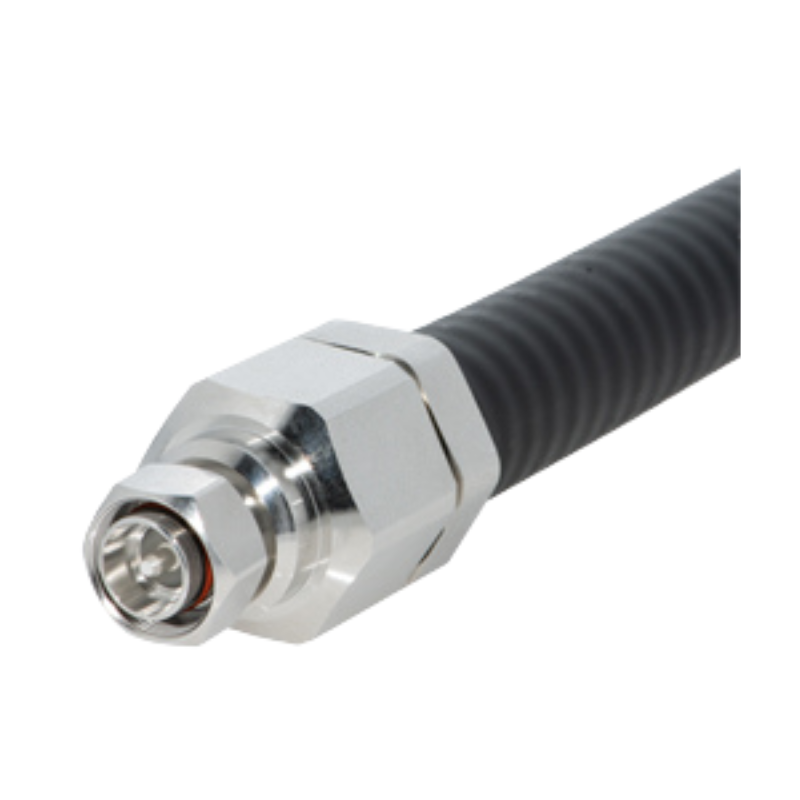

HUBER+SUHNER Sucofeed_7/8 with 4.3-10 Male Straight Both Ends (EACH) – 1m
The HUBER+SUHNER Sucofeed_7/8 with 4.3-10 Male Straight connectors is a premium, low-loss RF coaxial assembly engineered for high-performance telecommunication and RF applications. Designed for frequencies up to 12 GHz, it provides outstanding return loss (RL) and passive intermodulation (PIM) stability, independent of torque.
Built with the field-mountable Quick-fit 4.3-10 interface, this compact, lightweight assembly offers a 40 % size and weight reduction compared to standard 7/16 connectors — making it ideal for space-restricted sites such as mobile base stations, 5G antennas, and DAS systems. The robust construction ensures IP68 protection when mated, delivering exceptional performance and reliability even in harsh outdoor conditions.
Key Features:
-
4.3-10 Quick-fit connector series for simple field installation
-
Low PIM and high return loss, stable independent of torque
-
Compact and lightweight design – 40 % smaller and lighter than 7/16 connectors
-
High-frequency capability – operates up to 12 GHz
-
IEC 61169-54 compliant, ensuring industry compatibility
-
IP68 rated for water and dust protection
-
Excellent mechanical strength and high corrosion resistance
-
Fully RoHS and REACH compliant
Technical Specifications:
Product Configuration
Material Data
-
Centre Contact: Bronze, silver-plated
-
Outer Conductor: Brass, SUCOPLATE® plated
-
Body: Brass, SUCOPLATE® plated
-
Insulator: PTFE (Polytetrafluoroethylene)
-
Coupling Nut: Brass, SUCOPLATE® plated
Electrical Data
-
Impedance: 50 Ω
-
Interface Frequency: Up to 12 GHz
-
Return Loss: ≥ 30 dB (0–2.5 GHz), ≥ 28 dB (2.5–3 GHz)
-
VSWR: ≤ 1.065 (0–2.5 GHz), ≤ 1.083 (2.5–3 GHz)
Mechanical Data
Environmental Data
-
Operating Temperature: −40 °C to +85 °C
-
Ingress Protection: IP68 (24 h, 1 m depth)
-
UV Resistance: Excellent, suitable for outdoor use
Compliance
|
