HUBER+SUHNER Sucofeed_1/2 with 716 Male Straight Both Ends (EACH) - 1m LIS-C12-11716-11716-01000-52

HUBER+SUHNER Sucofeed_1/2 with 7/16 Male Straight Both Ends (EACH) – 1m

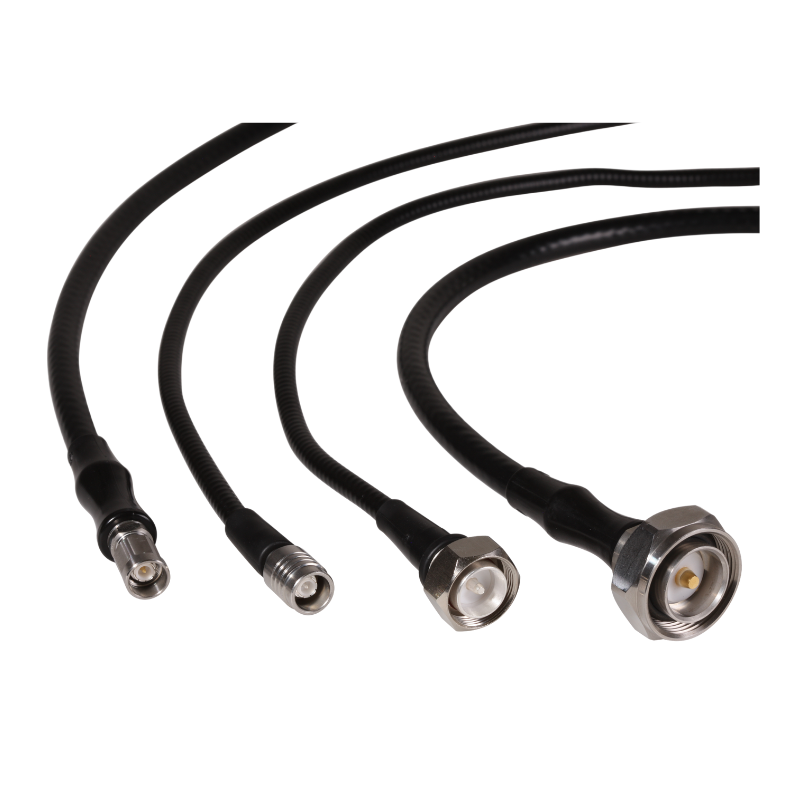

The HUBER+SUHNER Sucofeed_1/2 RF jumper cable is a high-performance, low-loss coaxial assembly designed for use in demanding RF and telecommunication environments. Fitted with 7/16 DIN male straight connectors at both ends, it ensures exceptional electrical performance, mechanical strength, and long-term reliability in base stations, 5G, and DAS network deployments.

Built with a corrugated ½" flexible annular coaxial cable, the Sucofeed_1/2 assembly delivers low attenuation, excellent return loss, and superior passive intermodulation (PIM) performance. Fully IP68-rated and RoHS compliant, it’s engineered to withstand harsh outdoor conditions while maintaining consistent signal quality across the 0–6 GHz frequency range.

Key Features:

• Operates efficiently at frequencies up to 6 GHz

• Equipped with 7/16 DIN male straight connectors on both ends

• Low PIM performance ≤ −160 dBc (typ. −163 dBc @ 1.8 GHz)

• High RF power handling — 1000 W @ 1 GHz, 700 W @ 2.2 GHz

• Excellent return loss and low insertion loss

• Rugged, halogen-free PE black jacket with UV resistance

• IP68-rated waterproofing (0.1 bar, 24 h @ 20 °C)

• Suitable for harsh environments and tower installations

• Fully compliant with RoHS 2011/65/EU

Technical Specifications:

Product Configuration

• Cable Type: Sucofeed ½ annular, low-loss

• Connector A: 7/16 DIN male straight

• Connector B: 7/16 DIN male straight

• Length: 1000 mm (1 m)

• Product Code: LIS-C12-11716-11716-01000-52

Electrical Data

• Impedance: 50 Ω

• Max Operating Frequency: 6 GHz

• Passive Intermodulation (IM3): ≤ −160 dBc (typ. −163 dBc @ 1.8 GHz)

• RF Power Handling: 1000 W @ 1 GHz / 700 W @ 2.2 GHz / 480 W @ 3.8 GHz

• Typical Return Loss: ≥ 29 dB (DC – 1 GHz) to ≥ 22 dB (3.8 GHz)

Mechanical Data

• Weight: 0.24 kg

• Static Bending Radius: 70 mm

• Repeated Bending Radius: 125 mm

• Coupling Nut Torque: 25–30 Nm

• Hanger Spacing: 0.8 m recommended

Environmental Data

• Operating Temperature: −40 °C to +85 °C

• Installation Temperature: −25 °C to +60 °C

• Storage Temperature: −70 °C to +85 °C

• Ingress Protection: IP68 (0.1 bar, 24 h, 20 °C)

• Jacket Material: Halogen-free PE black, UV-resistant

Compliance

• RoHS Directive 2011/65/EU – Lead-free solder compliant

• ISO 9001 and ISO 14001 certified manufacturer
