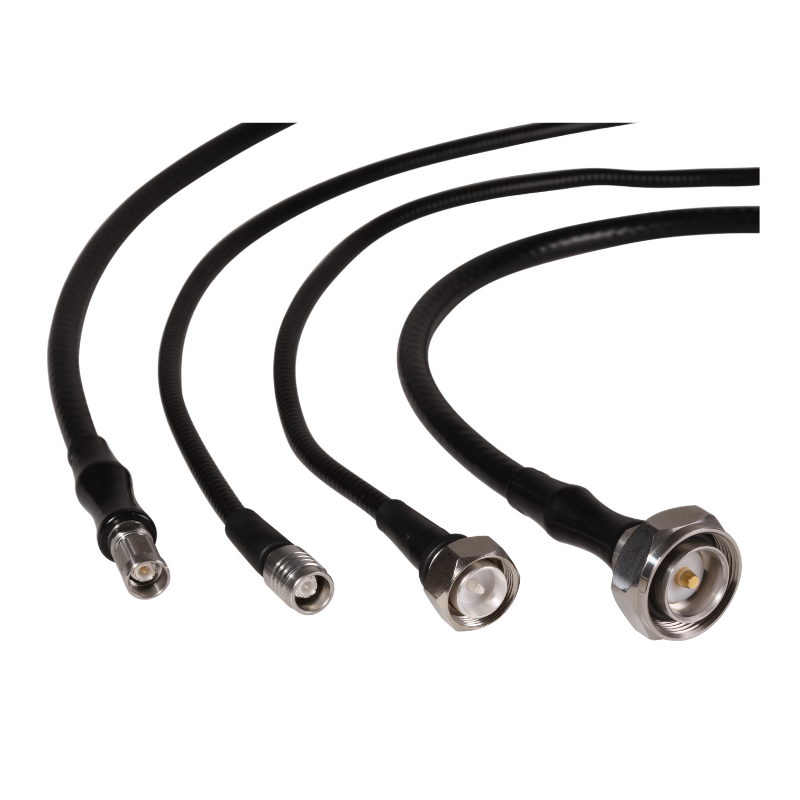

HUBER+SUHNER Sucofeed_1/2_HF with 7/16 Male Straight Both Ends (EACH) – 1m
The HUBER+SUHNER Sucofeed_1/2_HF RF cable assembly offers exceptional electrical and mechanical performance for high-frequency RF and telecommunications applications. Designed with 7/16 DIN male straight connectors on both ends, this 1m coaxial assembly ensures low loss, low PIM performance, and high mechanical robustness for demanding outdoor installations.
Engineered to operate up to 6 GHz, the Sucofeed_1/2_HF cable provides outstanding signal integrity, superior power handling, and long-term reliability in harsh environmental conditions. Ideal for base stations, DAS networks, 5G rollouts, and other RF systems, this assembly is built for durability and precision.
Key Features:
-
Suitable for frequencies up to 6 GHz
-
7/16 DIN male straight connectors on both ends for high mechanical strength
-
Low Passive Intermodulation (PIM) ≥ 160 dBc @ 1.8 GHz (2 × 20 W)
-
Fully electrically tested up to 3.8 GHz
-
Excellent return loss and insertion loss characteristics
-
Designed for harsh environmental installations (IP68 rated when mated)
-
50 Ω impedance for reliable RF transmission
-
RoHS and REACH compliant construction
-
Proven long-term reliability for telecom and RF systems
Technical Specifications:
Product Configuration
-
Cable Type: SUCOFEED_1/2_HF
-
Connector A: 7/16 DIN Male Straight
-
Connector B: 7/16 DIN Male Straight
-
Length: 1000 mm (1m)
-
Product Code: LiS-C9-11716-11716-01000-52
-
Manufacturer Code: 85083916
-
Length Type: REF to REF
Electrical Data
Mechanical Data
Environmental Data
Compliance
