HUBER+SUHNER Sucofeed_7/8 with 7/16 Male Straight Both Ends (EACH) – 1m

The HUBER+SUHNER Sucofeed_7/8 RF coaxial cable assembly is a premium, high-performance solution designed for professional RF and telecommunication applications. Engineered for low loss, high power handling, and minimal passive intermodulation (PIM), it delivers consistent performance in demanding environments such as mobile base stations, broadcasting systems, and 5G network infrastructures.

This 1m Sucofeed_7/8 assembly, featuring 7/16 DIN male straight connectors on both ends, provides exceptional shielding effectiveness (120 dB) and superior mechanical strength, ensuring stable and durable connections even in harsh outdoor conditions. The flame-retardant, halogen-free PE jacket offers both safety and longevity, while compliance with RoHS and REACH standards guarantees environmentally responsible design.

Key Features:

• Low loss and low intermodulation distortion for reliable RF transmission

• High shielding effectiveness up to 120 dB

• High power capability for demanding installations

• Flame-retardant, halogen-free construction meeting IEC 60754-1

• 7/16 DIN male straight connectors on both ends

• Robust corrugated copper outer conductor for superior mechanical protection

• UV-resistant jacket (RAL 9005 – black) for outdoor durability

• Fully RoHS 2011/65/EU and REACH 1907/2006 compliant

• Ideal for base stations, 5G, DAS and broadcast environments

Technical Specifications:

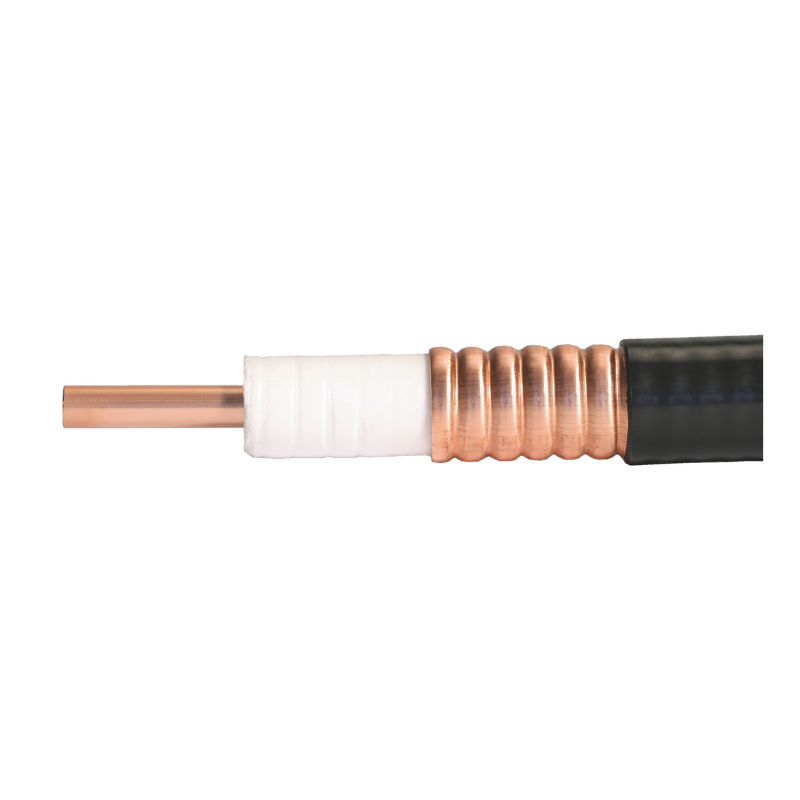

Cable Construction

• Centre Conductor: Copper tube – 9 mm

• Dielectric: Foamed Polyethylene (SPE) – 22.3 mm

• Outer Conductor: Corrugated Copper Tube – 24.8 mm

• Jacket: PE-LD (Low-density Polyethylene), RAL 9005 (black) – Ø 27.6 mm ± 0.4 mm

• Jacket Marking: HUBER+SUHNER_SUCOFEED_7/8_#batch-number#_#metric-length#

Electrical Data

• Impedance: 50 Ω ±1 Ω

• Frequency Range: ≤ 5 GHz

• Capacitance: 75.8 pF/m

• Inductance: 0.2 µH/m

• Velocity of Propagation: 88%

• Signal Delay: 3.8 ns/m

• Screening Effectiveness: 120 dB

• Inner Conductor Resistance: 1.55 Ω/km

• Outer Conductor Resistance: 1.35 Ω/km

• Insulation Resistance: 10,000 MΩ·km

• Operating Voltage: ≤ 2.91 kVrms

• Test Voltage (50 Hz / 1 min): ≤ 6 kVrms

Mechanical Data

• Weight: Approx. 530 g/m

• Static Bending Radius: ≥ 120 mm

• Repeated Bending Radius: 250 mm (up to 15 bendings)

• Tensile Strength: 1400 N

Environmental Data

• Operating Temperature: −55 °C to +85 °C

• Installation Temperature: −25 °C to +60 °C

• CPR Classification: Fca

• Fire Characteristics: Halogen-free, IEC 60754-1 compliant

• UV Resistance: ISO 4892-2

Compliance

• RoHS Directive: 2011/65/EU and (EU) 2015/863 – Compliant without exemption

• REACH Regulation: 1907/2006 Article 33 SVHC – Fully compliant
